FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight 4058075575240

local index:
OZC064LEDV
Catalog number:
4058075575240
EAN code:
4058075575240
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight
FLOOD COMPACT SENSOR V 10W 840 SYM 100 black floodlight

Click on the photo to enlarge

Manufacturer: LEDVANCE
Price:
129,89 zł
gross / pcs.
(including VAT 23%)
2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

  • Suitable for surface mounting
    Yes
  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    No
  • Suitable for pedestal/floor mounting
    Yes
  • Suitable for clamp-mounting
    No

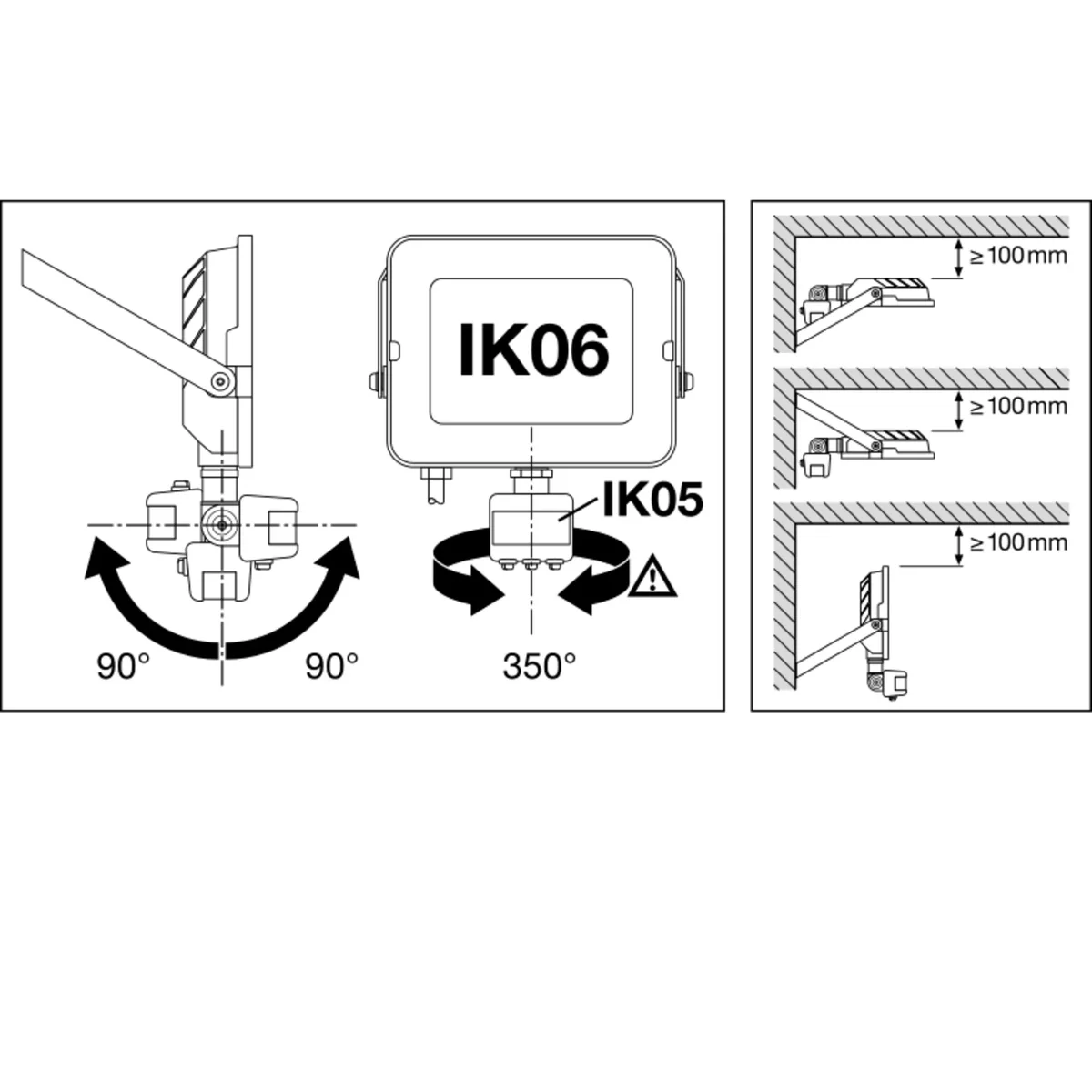

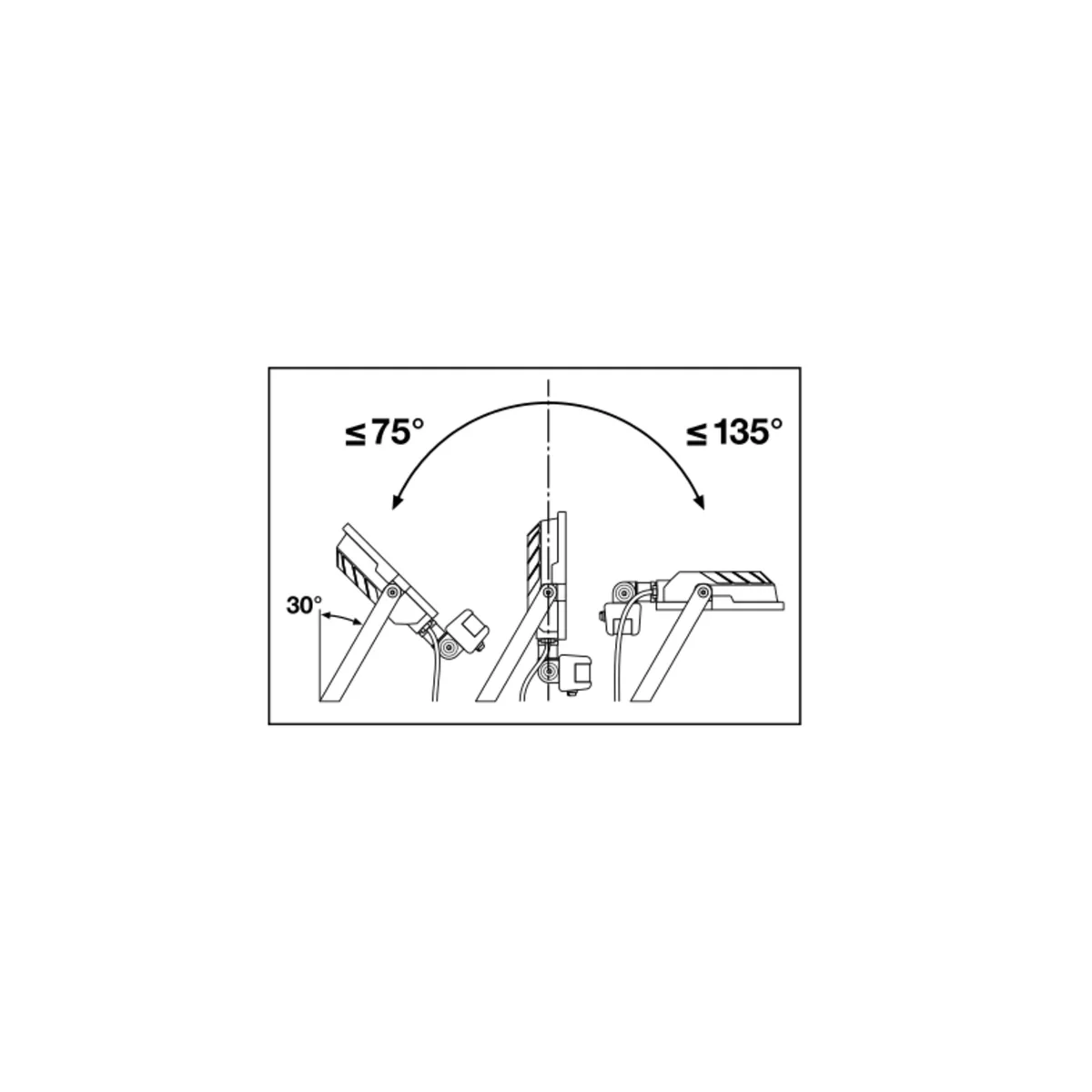

  • Adjustability
    Swivelling
  • Technologia wykonania czujnika ruchu/obecności
    Passive infrared
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    0
  • Surface protection
    Powder coating
  • Material cover
    Glass opal
  • Voltage type
    AC
  • Nominal current
    55 ... 55 mA
  • With control gear
    Yes
  • Exchangeable control gear
    No
  • Dimming 1-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light distributor
    Reflector

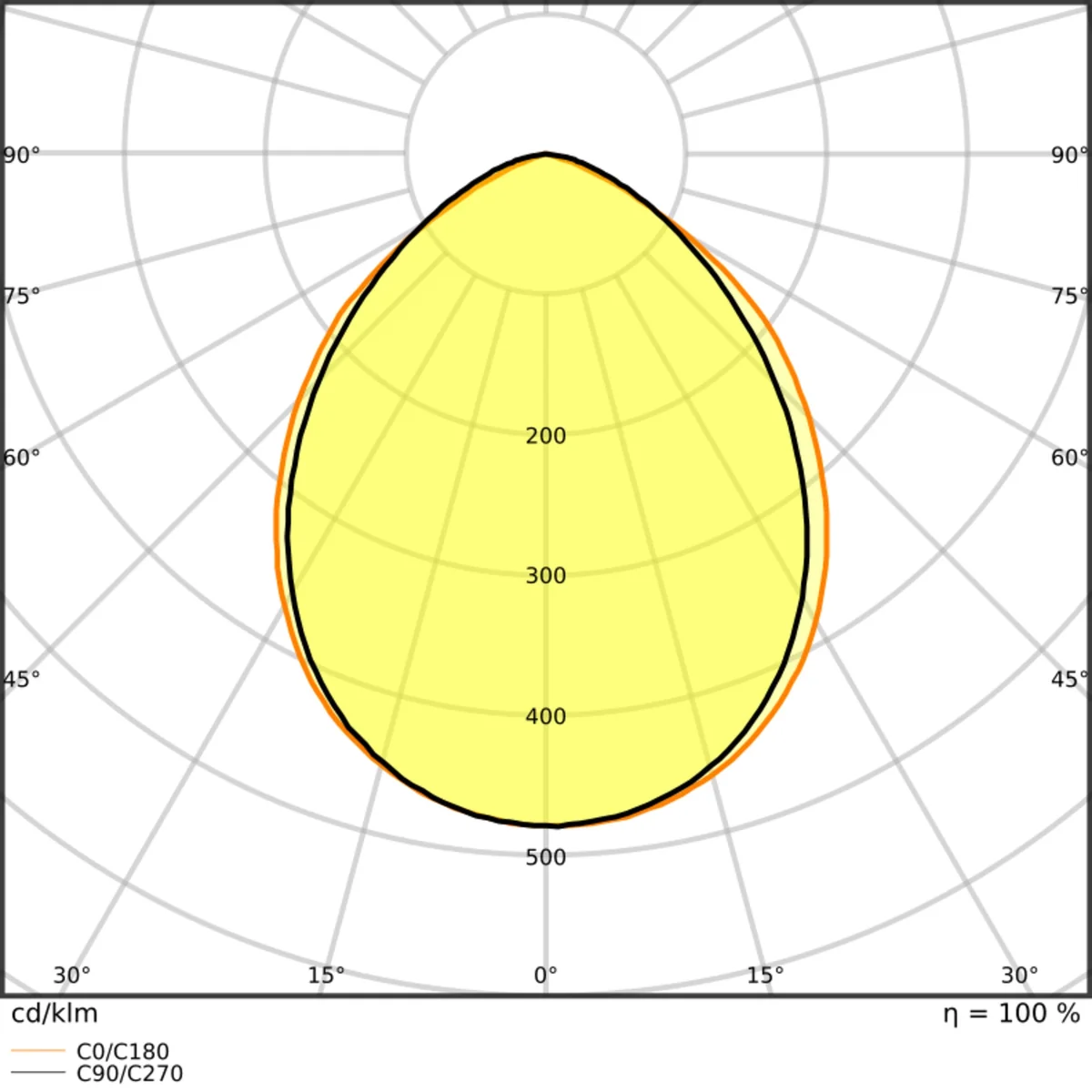

  • Beam angle
    Extreme wide beam >80°
  • Współczynnik harmonicznych (THD)
    20 %
  • Constant light output (CLO)
    No
  • Impact strength
    IK06
  • Rated ambient temperature according to IEC 62722-2-1
    -30 ... 45 °C
  • Colour of light
    White
  • Colour of light adjustable
    No
  • Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1
    1000 ... 1000 lm
  • Skuteczność świetlna oprawy
    100 ... 100 lm/W
  • Beam angle adjustable
    No

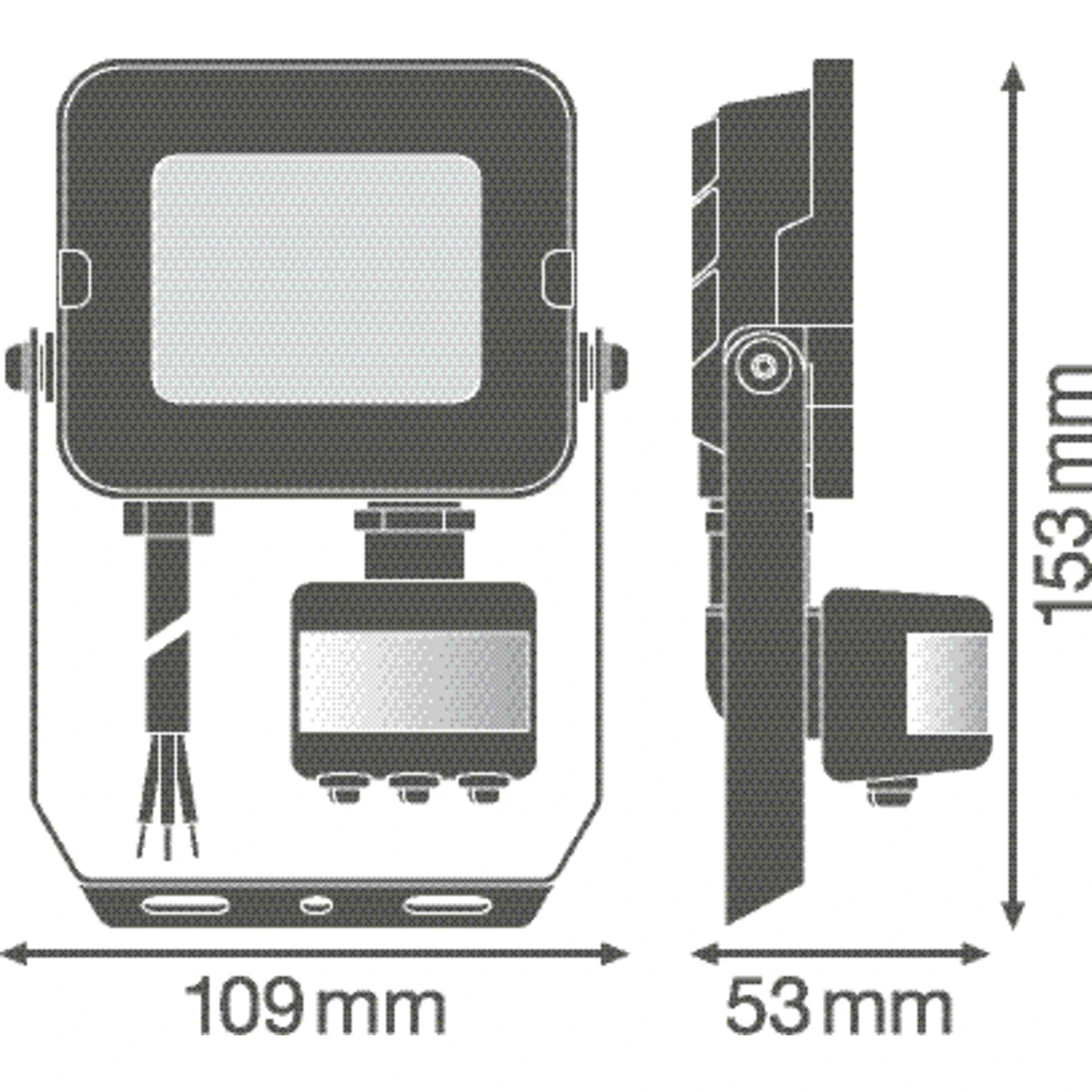

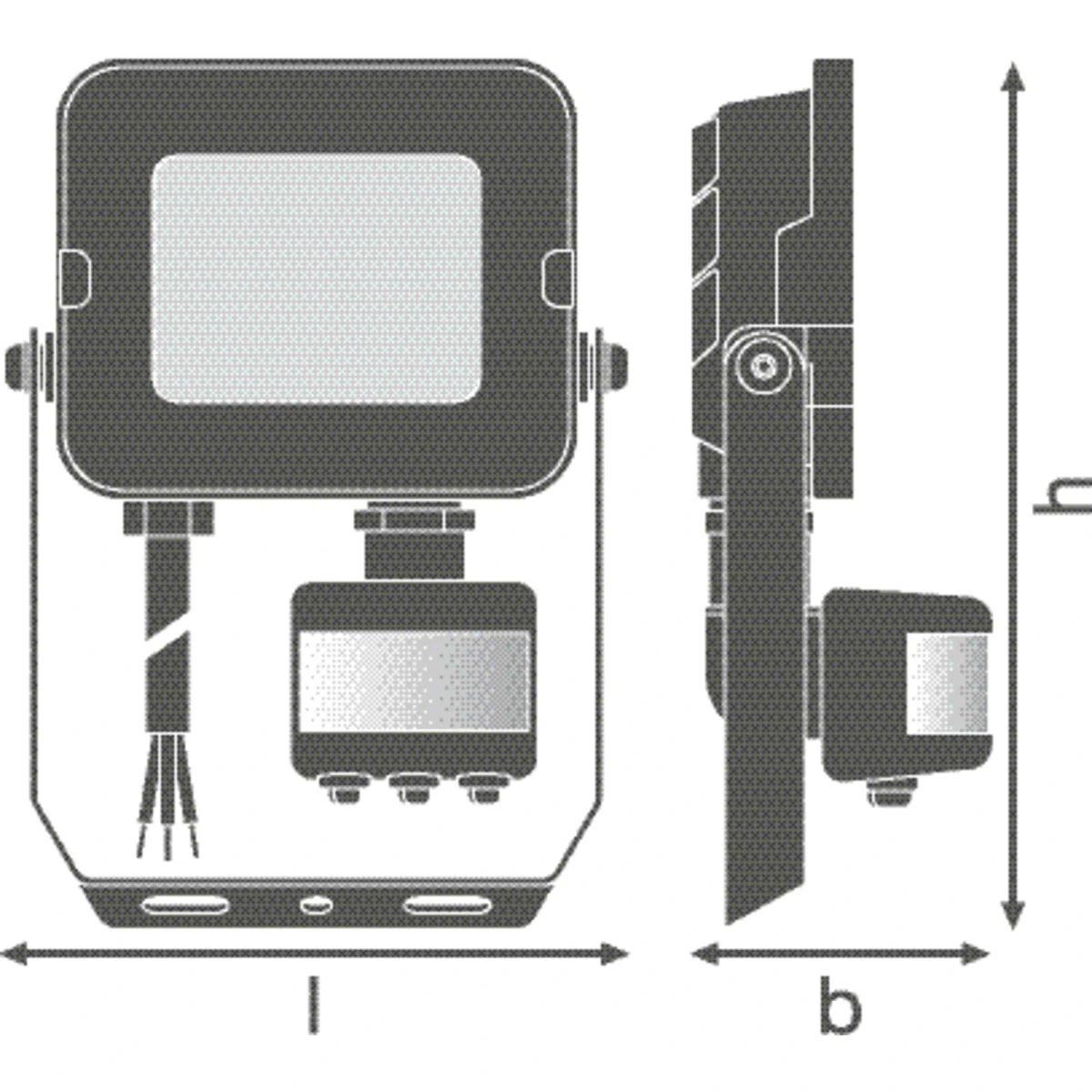

  • Width
    109 mm
  • Type of wiring
    Ending
  • Connection type
    Push-in clamp
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    159
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Suitable for workplace according to EN 12464-1
    No
  • IFTTT support available
    No
  • Operation by Bluetooth
    No
  • Compatible with Amazon Alexa
    No
  • Suitable for built-in mounting
    No
  • Suitable for suspended mounting
    No
  • Suitable for traverse mounting
    No
  • Suitable for light-track mounting
    No
  • Suitable for low voltage cable system
    No

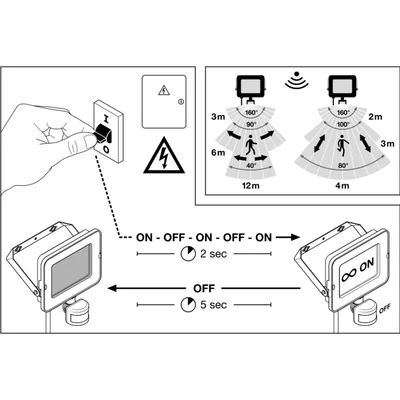

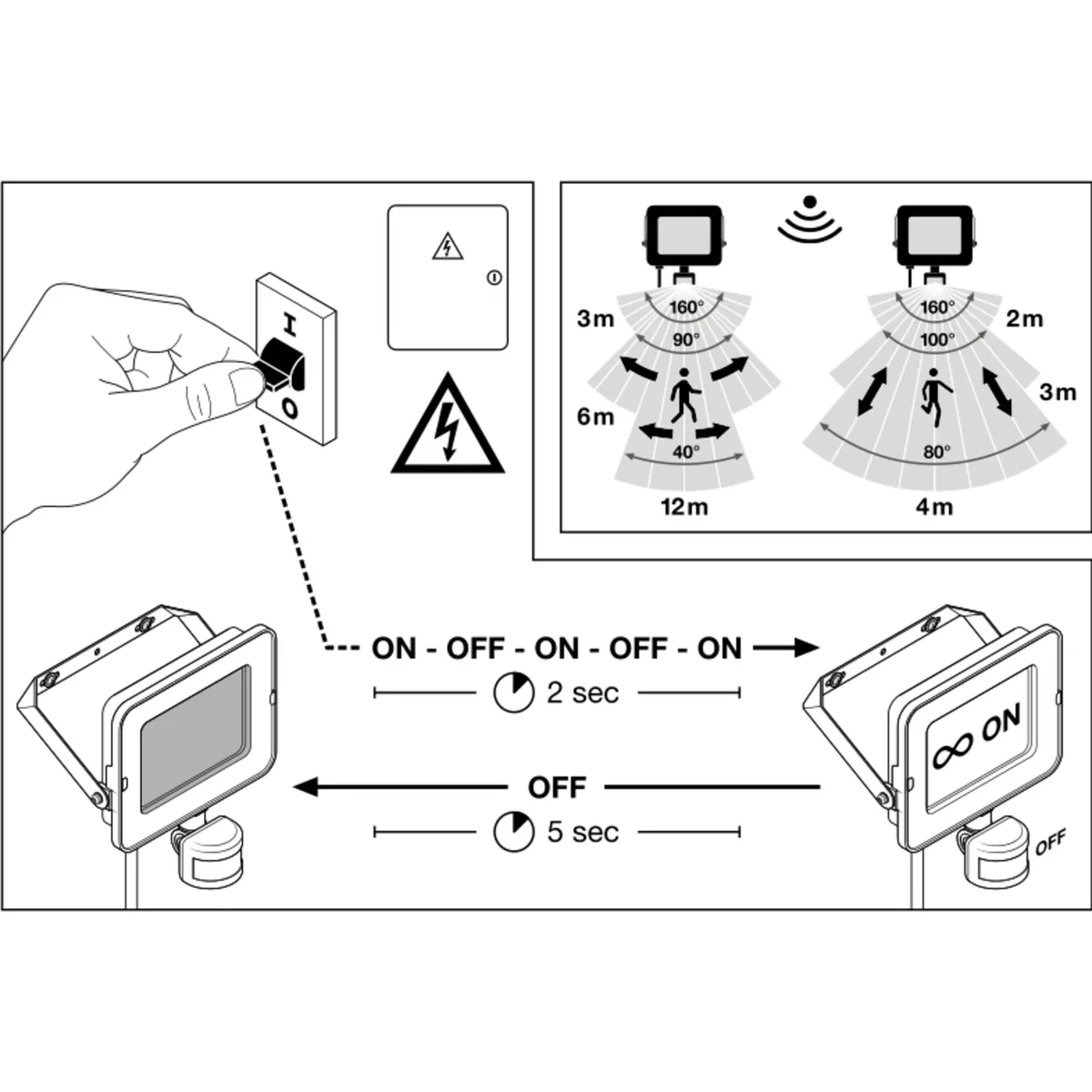

  • With movement sensor
    Yes
  • With light sensor
    Yes
  • With light source
    Yes
  • Housing material
    Aluminium
  • Housing colour
    Black
  • Surface brushed
    No
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimmable
    No
  • Dimming 0-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Reflector
    Matt
  • Light sharing
    Symmetric
  • Light outlet
    Direct
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Degree of protection (IP), front side
    IP65
  • Protection class
    I
  • Max. system power
    10 W
  • Colour temperature
    4000 ... 4000 K
  • Colour rendering index CRI
    80-89
  • Luminous flux adjustable
    No
  • Power factor
    0.8
  • Length
    153 mm
  • Height/depth
    53 mm
  • Number of poles
    3
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    185
  • Photobiological safety according to EN 62471
    RG1
  • Covering of the luminaire with thermally insulating material possible
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No

Manufacturer details

  • Manufacturer
    LEDVANCE GmbH
  • Address
    85748 Garching Parkring 29-33 Niemcy
  • E-mail
    InfoPL@ledvance.com

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 8 pcs.
Weight (kg) 0,373 3,282
Volume (m3) 0,001 0,015
Width (m) 0,080 0,240
Length (m) 0,110 0,330
Depth (m) 0,160 0,190
