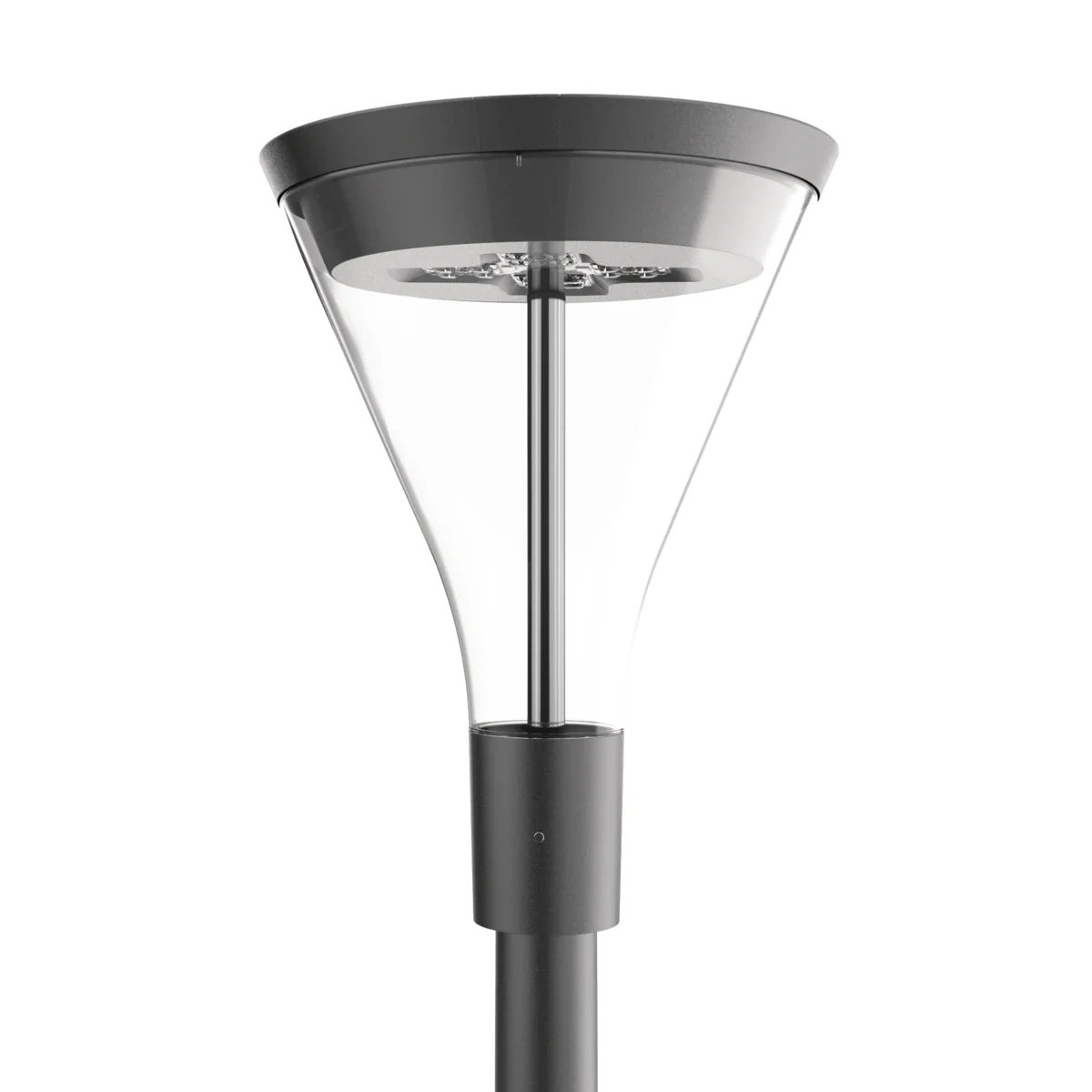

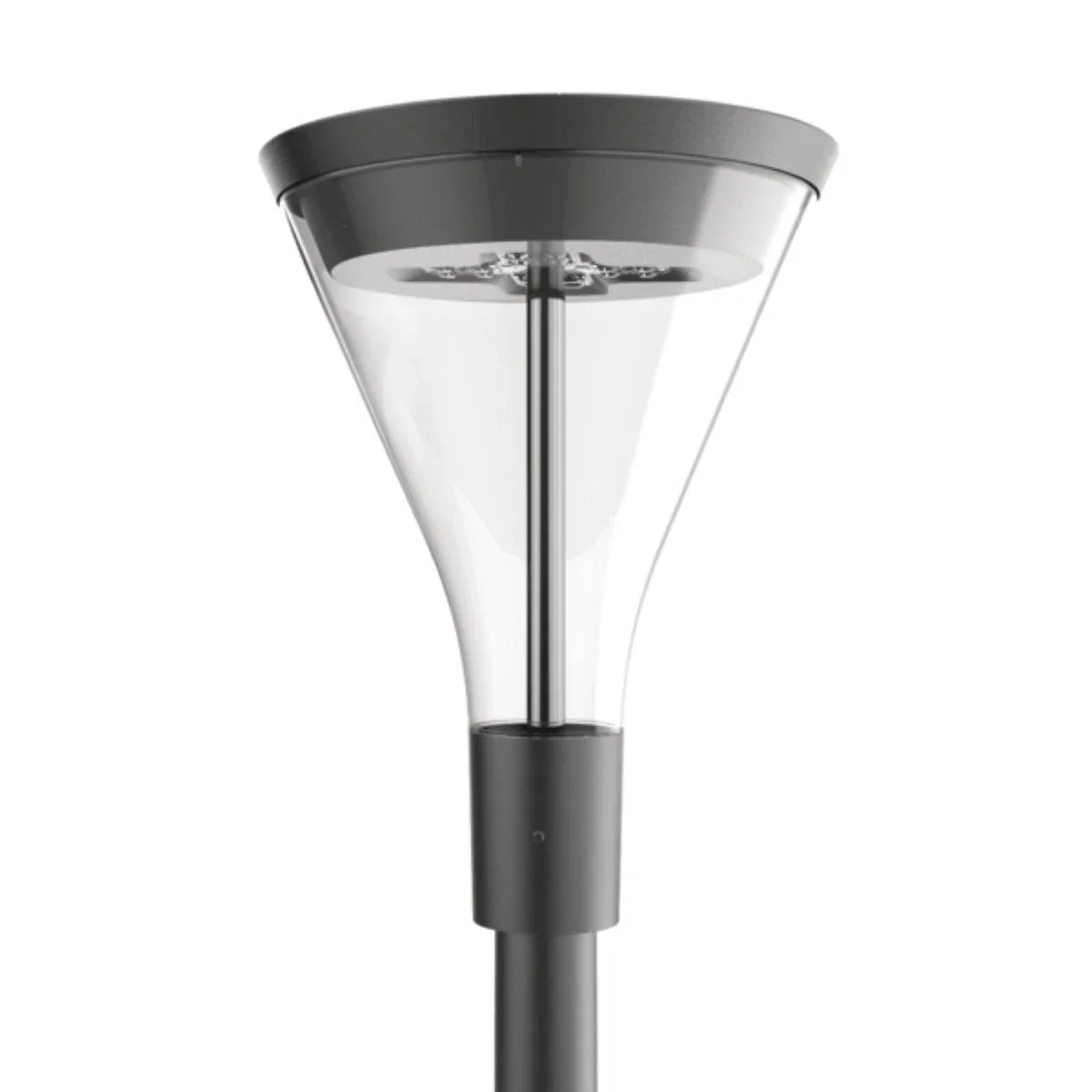

Name: AVENIDA LENS LED ED luminaire 6250lm/730 IP66 O23 gray II class 48 W
Brand: LUG LIGHT
SKU: OZB004LUGQ
Price: 1528.10 PLN
Availability: BackOrder

Otros datos técnicos

Mounting method

Post top
With light source

Yes
Surface protection

Powder coating
Material cover

Plastic, transparent
Nominal voltage

220 ... 240 V
Type of control gear

LED operating device current-controlled
Dimming 0-10 V

No
Dimming DALI

No
Dimming DSI

No
Ściemniacz GPRS

No
Dimming programmable

No
Klasa efektywności energetycznej zamontowanego źródła światła

A++, A+, A (LED)
Degree of protection (IP)

IP66
Adjustable optics

No
Impact strength

IK10
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

No
With radio control

No
With light regulation program control

No
Cable length

6 m
Rated luminous flux according to IEC 62722-2-1

6000 lm
Colour temperature

3000 ... 3000 K
Luminaire efficacy

122 lm/W
Length

360 mm
Type of wiring

Through wiring included

Lamp type

LED not exchangeable
Housing material

Aluminium
Housing colour

Grey
Voltage type

AC
Prąd znamionowy LED przy zasilaniu prądem stałym

200 ... 700 mA
With control gear

Yes
Dimming 1-10 V

No
Dimming DMX

No
Dimming potentiometer (integrated)

No
Dimming LineSwitch

No
No dim function

Yes
Żywotność znamionowa L90/B10 przy 25°C

100000 h
Light distributor

Diffuser lens/optic/panel
Suitable for spigot size

3000 ... 6000 mm
Protection class

II
Rated ambient temperature according to IEC 62722-2-1

-40 ... 45 °C
Constant light output (CLO)

No
With connection cable

Yes
Max. system power

49 W
Colour of light

White
Colour rendering index CRI

70-79
Height/depth

482 mm
Diameter

360 mm
Conductor cross section

1.5 mm²

AVENIDA LENS LED ED luminaire 6250lm/730 IP66 O23 gray II class 48 W 130272.5L132.061
