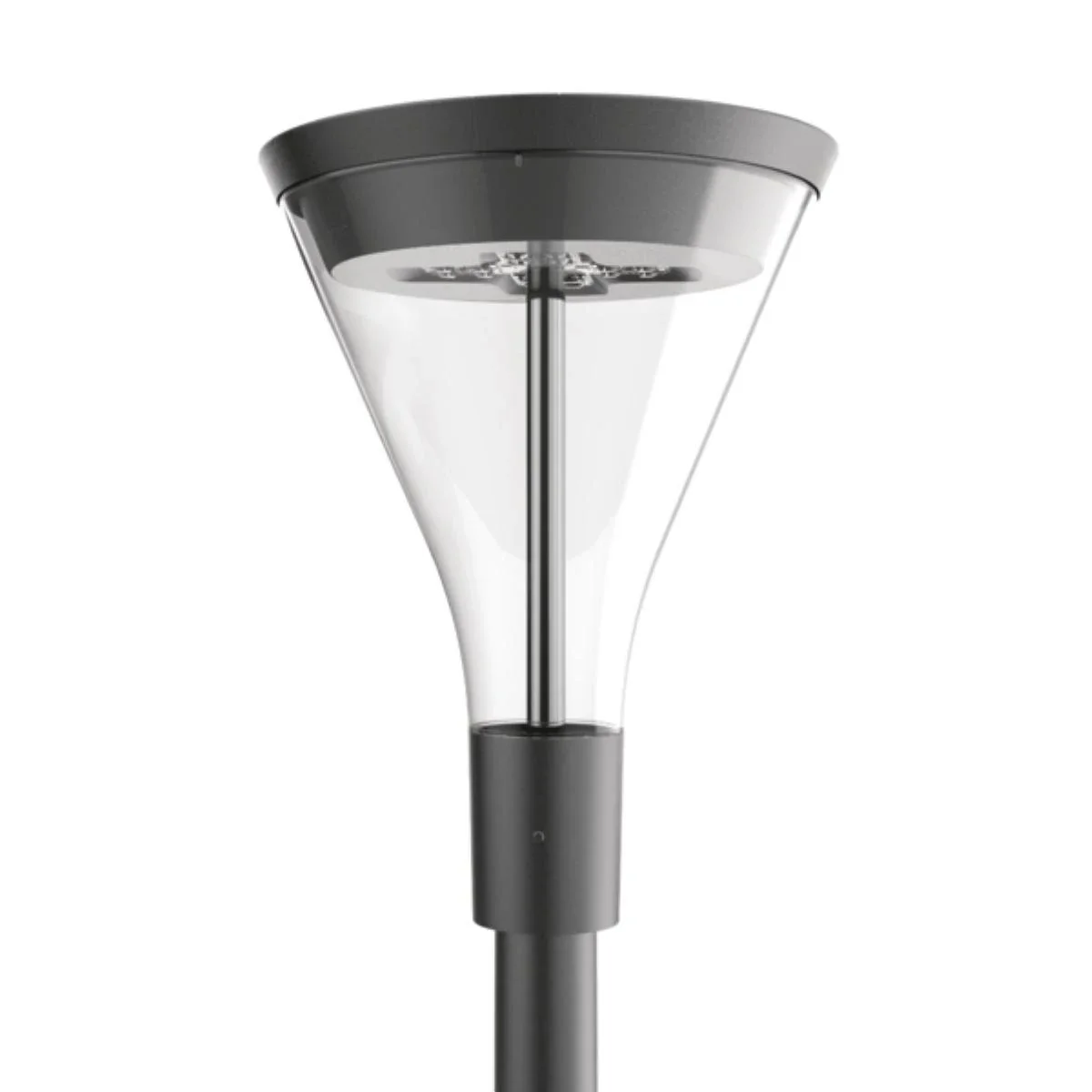

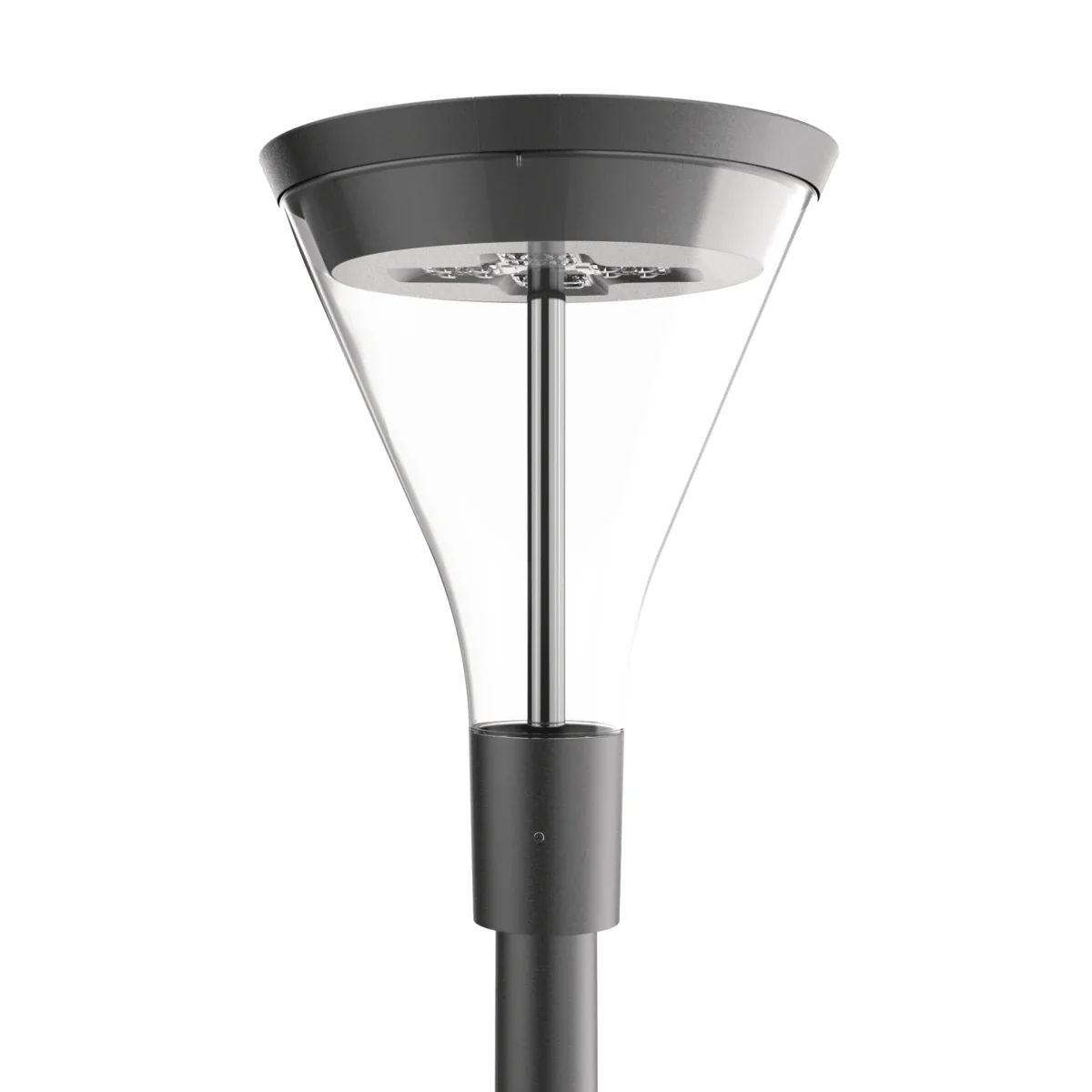

Name: AVENIDA LENS LED ED luminaire 3550lm/740 IP66 O18 graphite II class 25 W
Brand: LUG LIGHT
SKU: OZB007LUGQ
Price: 1332.83 PLN
Availability: BackOrder

Otros datos técnicos

Mounting method

Post top
With light source

Yes
Surface protection

Powder coating
Material cover

Plastic, transparent
Nominal voltage

220 ... 240 V
Type of control gear

LED operating device current-controlled
Dimming 0-10 V

No
Dimming DALI

No
Dimming DSI

No
Ściemniacz GPRS

No
Dimming programmable

No
Klasa efektywności energetycznej zamontowanego źródła światła

A++, A+, A (LED)
Degree of protection (IP)

IP66
Adjustable optics

No
Impact strength

IK10
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

No
With radio control

No
With connection cable

Yes
Max. system power

25 W
Colour of light

White
Colour rendering index CRI

70-79
Height/depth

482 mm
Diameter

360 mm
Conductor cross section

1.5 mm²

Lamp type

LED not exchangeable
Housing material

Aluminium
Housing colour

Black
Voltage type

AC
Prąd znamionowy LED przy zasilaniu prądem stałym

200 ... 700 mA
With control gear

Yes
Dimming 1-10 V

No
Dimming DMX

No
Dimming potentiometer (integrated)

No
Dimming LineSwitch

No
No dim function

Yes
Żywotność znamionowa L90/B10 przy 25°C

100000 h
Light distributor

Diffuser lens/optic/panel
Suitable for spigot size

3000 ... 6000 mm
Protection class

II
Rated ambient temperature according to IEC 62722-2-1

-40 ... 55 °C
With light regulation program control

No
Cable length

6 m
Rated luminous flux according to IEC 62722-2-1

3200 lm
Colour temperature

4000 ... 4000 K
Luminaire efficacy

128 lm/W
Length

360 mm
Type of wiring

Through wiring included

AVENIDA LENS LED ED luminaire 3550lm/740 IP66 O18 graphite II class 25 W 130275.5L052.011
