K.1 Frame with a large cut-out anthracite matt lacquered 13097006
local index:
MAR038HAGE
Catalog No:
13097006
EAN code:
4011334297802
Price:
12,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

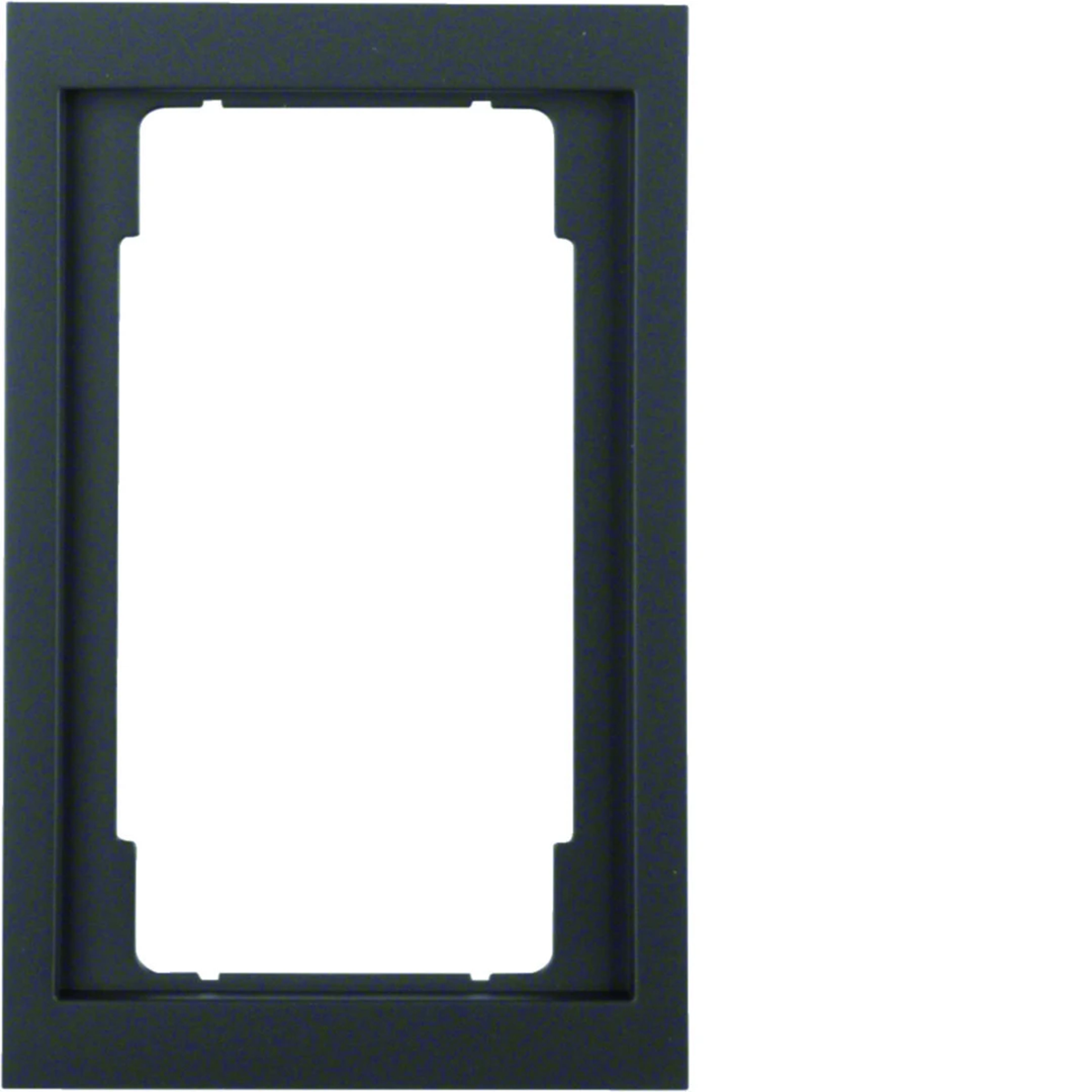

Frame with a large cut-out from the K.1 series. The product code number is 13097006.
- For KNX easy 4-gang push-buttons.
- For 3-gang push-buttons with temperature regulator and 4-, 5-gang KNX ETS.
- For vertical mounting.
SERIES DESCRIPTION
Berker K.1 is a modern, minimalist series made of high-quality plastic.
Technical data
-
Depth [mm]9.9
-
ColorGraphite
-
MaterialPlastic
-
FamilyK.1
-
Width [mm]87
-
Surface protectionvarnishing
-
Accurate colorAnthracite
-
For modular equipmentNot applicable
-
The shape of the matching accessorySquare, Rectangular
-
Number of modules1
-
ShapeRectangular
-
TypeStandard
-
Level of securityIP20
-
Height [mm]136.3
-
Surface finishmatte
-
Mounting directionVertical
-
Exact materialThermoplastic
-
PKWIU27.12.40.0
Other technical data
-
Number of units1
-
Number of units horizontal1
-
Number of modules horizontal (module system)0
-
Liczba łączników1
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7021
-
With hinged lidNo
-
Impact strengthIK05
-
Width87 mm
-
Depth9.9 mm
-
Built-in height111.1 mm
-
Mounting directionVertical
-
Number of units vertical1
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourAnthracite
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamp mounting
-
Height136.3 mm
-
Built-in width70.5 mm
-
Diameter bore hole (opening)0 mm
Manufacturer details
-
ManufacturerBerker GmbH & Co. KG.
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 60 pcs. | 1920 pcs. |
| Weight (kg) | 0,030 | 2,340 | 74,880 |
| Width (m) | 0,090 | 0,290 | 0,800 |
| Length (m) | 0,020 | 0,230 | 1,050 |
| Depth (m) | 0,170 | 0,400 | 1,200 |
