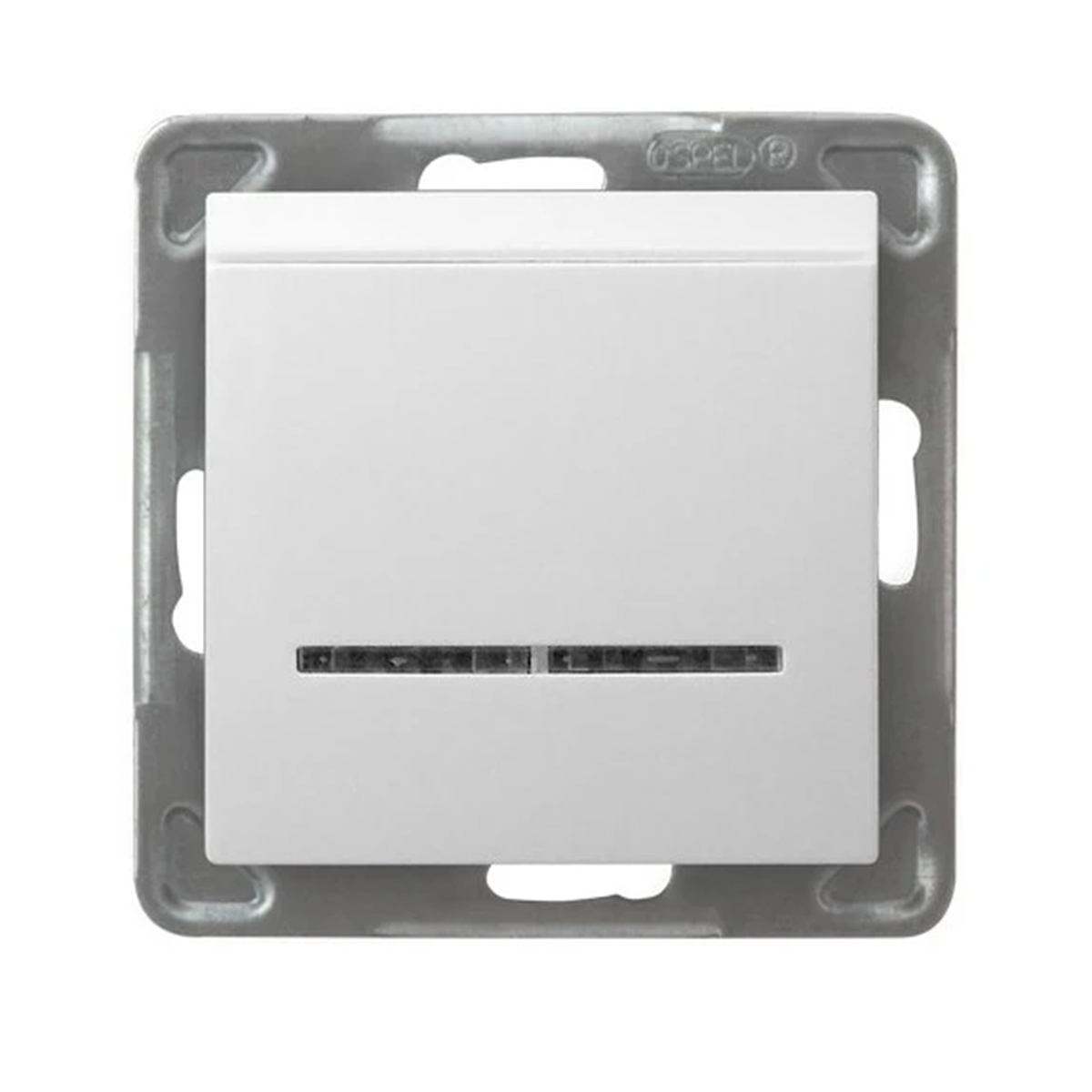

IMPRESJA Hotel switch with orange backlight ŁP-15YS/M/00

Name: IMPRESJA Hotel switch with orange backlight
Brand: OSPEL
SKU: MMH023OSPE
Price: 29.75 PLN

Indeks lokalny:

MMH023OSPE

Nr katalogowy:

ŁP-15YS/M/00

Kod EAN:

5907577437763

IMPRESJA Hotel switch with orange backlight

Kliknij zdjęcie, aby powiększyć

Producent: OSPEL

Depth [mm]: 50

Number of keys: hotel card

Color: White

Zobacz cały opis

Cena:

29,75 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 2 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

1

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze

Opis produktu

Hotel connector from the Impression series, from Ospel. The product catalog number is ŁP-15YS/M/00.

FEATURES

With backlight.
Relay off delay 3s.
Trigger type - electronic, photocell.

SERIES DESCRIPTION

A wide range of available colors is the main advantage of the elegant Impression collection. Hotel connector characterizes the features of this unique series.< /p>

Dane techniczne

Depth [mm]

50
Color

White
Material

Plastic
Rated voltage [V]

230
Rated current [A]

16
Family

IMPRESSION
Width [mm]

71
Height [mm]

71
Backlight

Yes
load power [W]

Incandescent: 3200 Induction, fluorescent: 750
For the frame system

Yes
Backlight color

Orange

Number of keys

hotel card
Shape

Square
Fixing

claws screws
Shutdown delay [s]

3
Type

Hotel
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Mounting depth [mm]

29
Terminal type

Threaded
Backlight type

LED
PKWIU

27.33.11.0

Pozostałe dane techniczne

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with complete housing
Push button switch

No
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Label space/information surface

No
Function lighting

Orientation
Suitable for degree of protection (IP)

IP20
Rated current

16 A
Feedback-signal contact

No
Washing machine switch

No
Device height

71 mm
Built-in depth

29 mm

Method of operation

Hotel card
Number of modules (module system)

1
Number of rockers

0
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
Illumination

Yes
Type of lighting

Glow lamp
Nominal voltage

230 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device width

71 mm
Device depth

50 mm

Dane producenta

Producent

OSPEL S.A.
Adres

42-436 Wierbka Główna 128 Polska
Email

ospel@ospel.com.pl

Opakowania zbiorcze

Rodzaj opakowania	Pudełko
Ilość	5 szt.
Szerokość (m)	0,162
Długość (m)	0,237
Głębokość (m)	0,090
