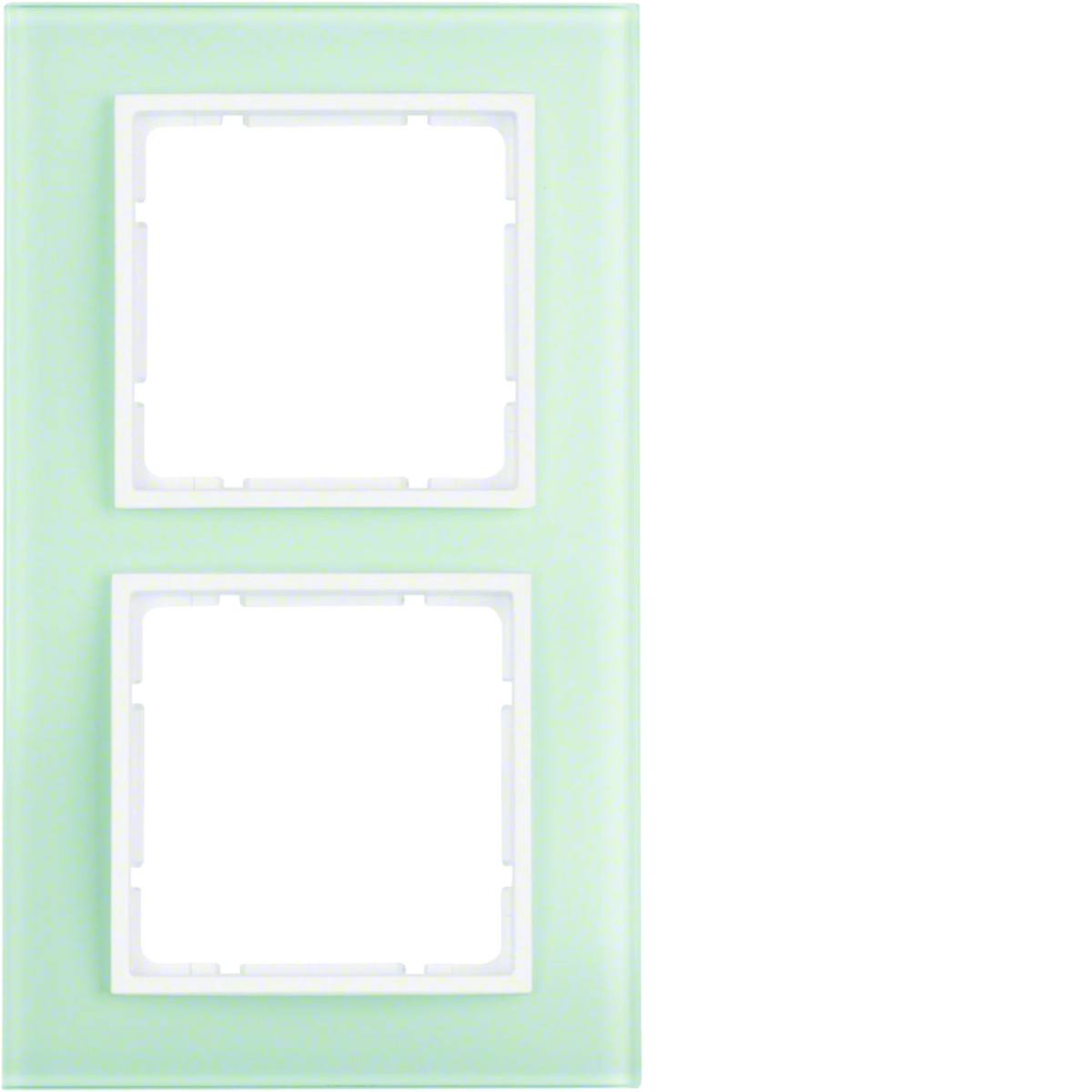

White double glass frame 10126909
local index:
MAR139BERK
Catalog No:
10126909
EAN code:
4011334238959
Price:
64,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Double frame from the B.7 series from Berker. The product catalog number is 10126909.
SERIES DESCRIPTION
Berker B.7 Series adds elegance to any interior, thanks to the combination of a delicate frame texture with a sharp contour.
Technical data
-
Depth [mm]9.6
-
ColorWhite
-
MaterialGlass
-
FamilyB.7
-
Width [mm]161
-
Surface protectionNatural
-
Mounting directionUniversal
-
Exact materialTempered glass
-
PKWIU27.12.40.0
-
Number of modules2
-
ShapeRectangular
-
TypeStandard + Intermediate
-
Level of securityIP20
-
Height [mm]95
-
Surface finishShiny
-
For modular equipmentNot applicable
-
The shape of the matching accessorySquare, Rectangular
Other technical data
-
Number of units2
-
Number of units horizontal2
-
Number of modules horizontal (module system)0
-
Liczba łączników2
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialGlass
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9010
-
With hinged lidNo
-
Impact strengthIK02
-
Width161 mm
-
Depth9.6 mm
-
Built-in height56 mm
-
Mounting directionHorizontal and vertical
-
Number of units vertical2
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualityOther
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamp mounting
-
Height95 mm
-
Built-in width56 mm
-
Diameter bore hole (opening)0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 5 pcs. | 55 pcs. | 1760 pcs. |
| Weight (kg) | 0,094 | 0,540 | 6,380 | 227,160 |
| Width (m) | 0,095 | 0,125 | 0,300 | 0,800 |
| Length (m) | 0,010 | 0,080 | 0,225 | 1,050 |
| Depth (m) | 0,161 | 0,180 | 0,400 | 1,200 |
