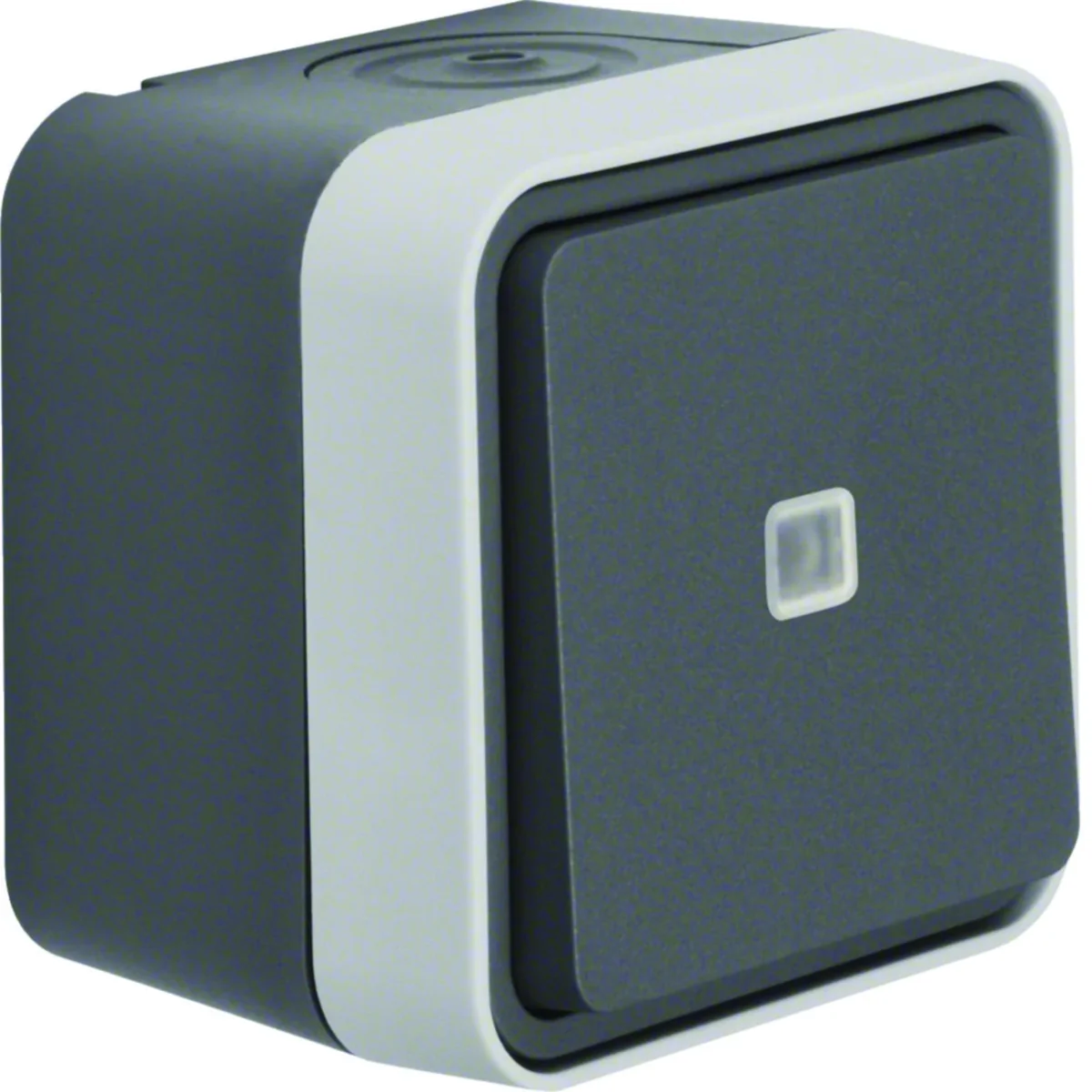

W.1 Universal switch with control backlight complete IP55 grey 31763505

local index:
MNS014BERK
Catalog No:
31763505
EAN code:
4011334394945
Manufacturer: BERKER
Depth [mm]: 61.5
Number of keys: 1
Color: Gray
Price:
33,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Universal stair switchfrom the W.1 series, from Berker. The product part number is 31763505.



FEATURES

  • With pilot light.
  • Complete.
  • Surface-mounted.
  • For screw connection.
  • Quick Connect.
  • With Wago 2-pole connection terminal for wiring.
  • With 2 clips for Wago 2-pole connection terminal on the underside of the housing.
  • With plug-in terminals.
  • With N-clamp.
  • With 2-wire entry and cable or pipe entry.
  • With 230 V red LED.
  • For backlit control connection.
  • With a full-surface seal on the rear side of the housing for cable entry from the rear side and fitting to the plaster.
  • Quick release pins made of ZAMAK.
  • Stainless stainless steel latch springs, latch pins made of ZnAl alloy.



SERIES DESCRIPTION

Berker W.1 is a series waterproof electrical installation equipment, which is distinguished by its innovative appearance. The stair switch characterizes the features of this unique series.

Technical data

  • Depth [mm]
    61.5
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Stairs Single
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Surface finish
    matte
  • Backlight
    Yes
  • For the frame system
    NO
  • Backlight type
    control LED
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Installation
    Surface-mounted
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    76
  • Height [mm]
    76
  • Accurate color
    dark grey
  • Terminal type
    Threadless
  • Exact material
    Thermoplastic
  • Backlight color
    Red

Other technical data

  • Wiring system
    Two-way switch
  • Number of rockers
    1
  • Type of fastening
    Screw mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • Suitable for degree of protection (IP)
    IP55
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Device width
    76 mm
  • Device depth
    61.5 mm
  • Min. depth of built-in installation box
    0 mm
  • Assembly arrangement
    Basic element with complete housing
  • Mounting method
    Surface mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Grey
  • Label space/information surface
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device height
    76 mm
  • Built-in depth
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 30 pcs. 960 pcs.
Weight (kg) 0,125 1,330 4,430 164,760
Width (m) 0,076 0,160 0,300 0,800
Length (m) 0,062 0,085 0,225 1,050
Depth (m) 0,076 0,325 0,400 1,200
