BERKER

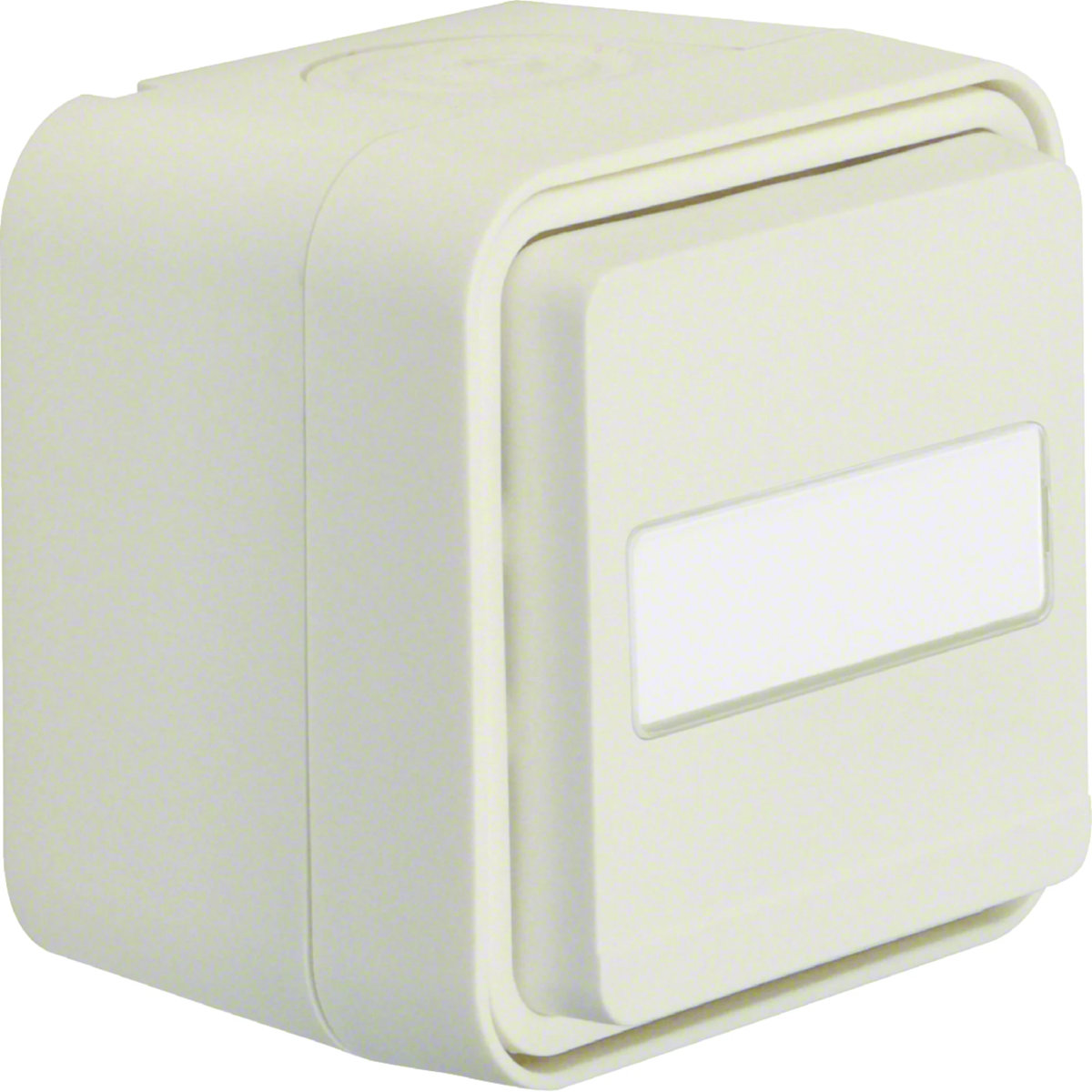

W.1 Universal push-button switch with illuminated description field complete IP55 white 50763552

local index:
MNZ007BERK
Catalog No:
50763552
EAN code:
4011334391166
Price:
35,93 €
gross / pcs.
including VAT 23%
Availability:
up to 10 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Universal push-button switch from the W.1 series, from the manufacturer Berker. The product part number is 50763552.



FEATURES

  • Complete.
  • Surface .
  • Illuminated labeling field.
  • With Wago 2-pole connection terminal block for wiring.
  • With 2 clips for Wago 2-pole connection terminal block on the bottom housing.
  • With plug-in terminals.
  • With N-clamp.
  • With 2-wire entry and cable or pipe entry.
  • < li>For screw connection.
  • With full-surface seal on the rear side of the housing for cable entry from the rear side and adjustment to plaster.
  • With blue LED 230V.
  • Quick release pins made of ZAMAK.
  • Stainless stainless steel latch cover springs, ZnAl alloy latch pins.
  • The height of the description field is adapted to the straps in P-touch, 12 mm high.
  • Comes with a description field printed with the symbol of light, bell, key.

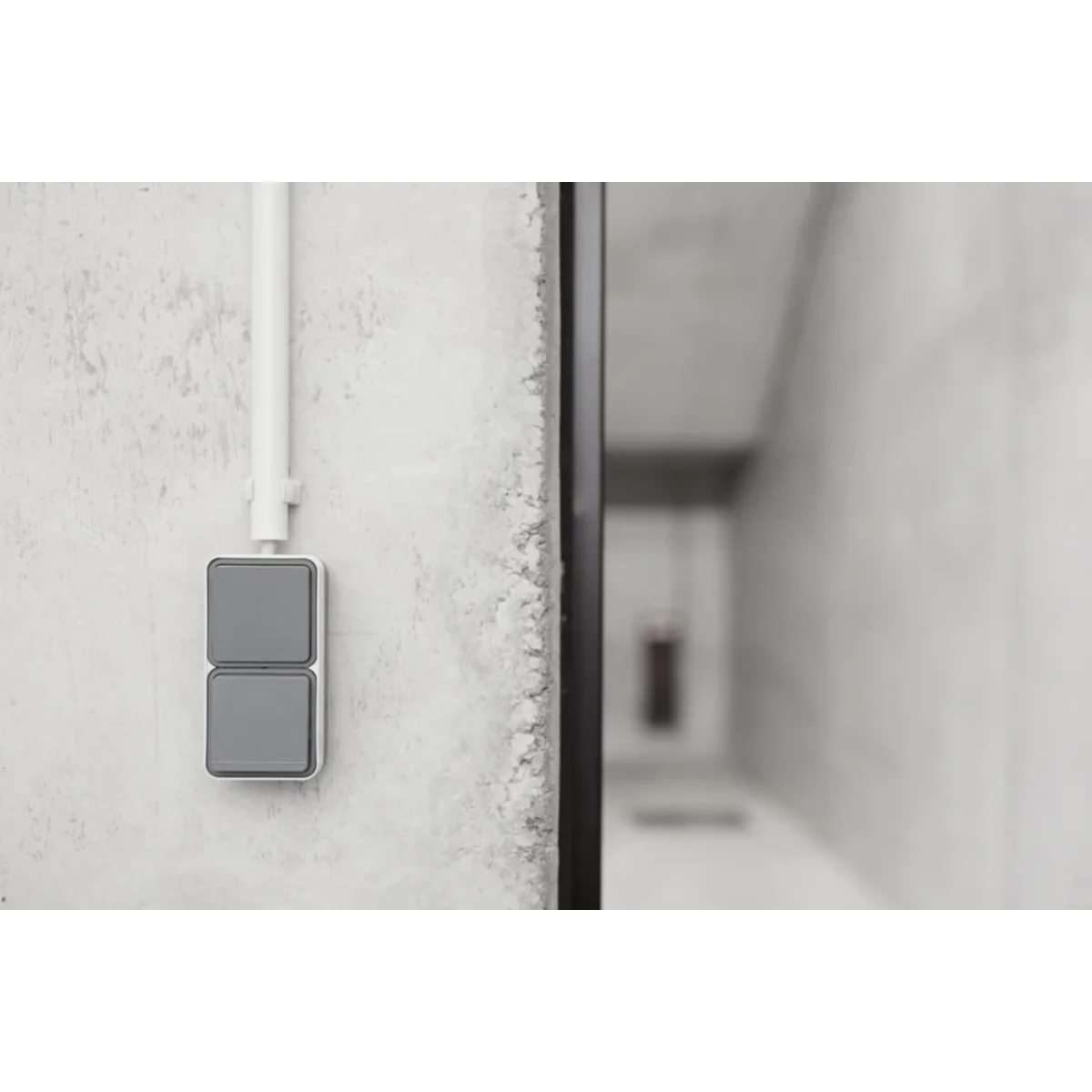

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative design. NO switch characterized by features of this unique series.

Technical data

  • Number of keys
    1
  • Shape
    Square
  • Rated voltage [V]
    230
  • Rated current [A]
    10
  • Family
    W.1
  • Type
    Surface-mounted
  • Height [mm]
    76
  • Accurate color
    Snow white
  • Terminal type
    Threadless
  • Exact material
    Thermoplastic
  • Seal
    Yes
  • Color
    White
  • Material
    Plastic
  • Descriptive field
    Yes
  • Type
    Short
  • Level of security
    IP55
  • Version
    Confident
  • Surface finish
    matte
  • Backlight
    Yes
  • For the frame system
    NO
  • Backlight type
    LED
  • Backlight color
    Blue

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Number of rockers
    1
  • Nominal voltage
    250 V
  • With signal lamp
    no
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    yes
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    no
  • Imprint
    None
  • Device width
    55 mm
  • Device depth
    41 mm
  • Model
    Single push button
  • Number of modules (module system)
    0
  • Rated current
    10 A
  • Feedback-signal contact
    no
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    no
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Label space/information surface
    yes
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    55 mm
  • Min. depth of built-in installation box
    0 mm
