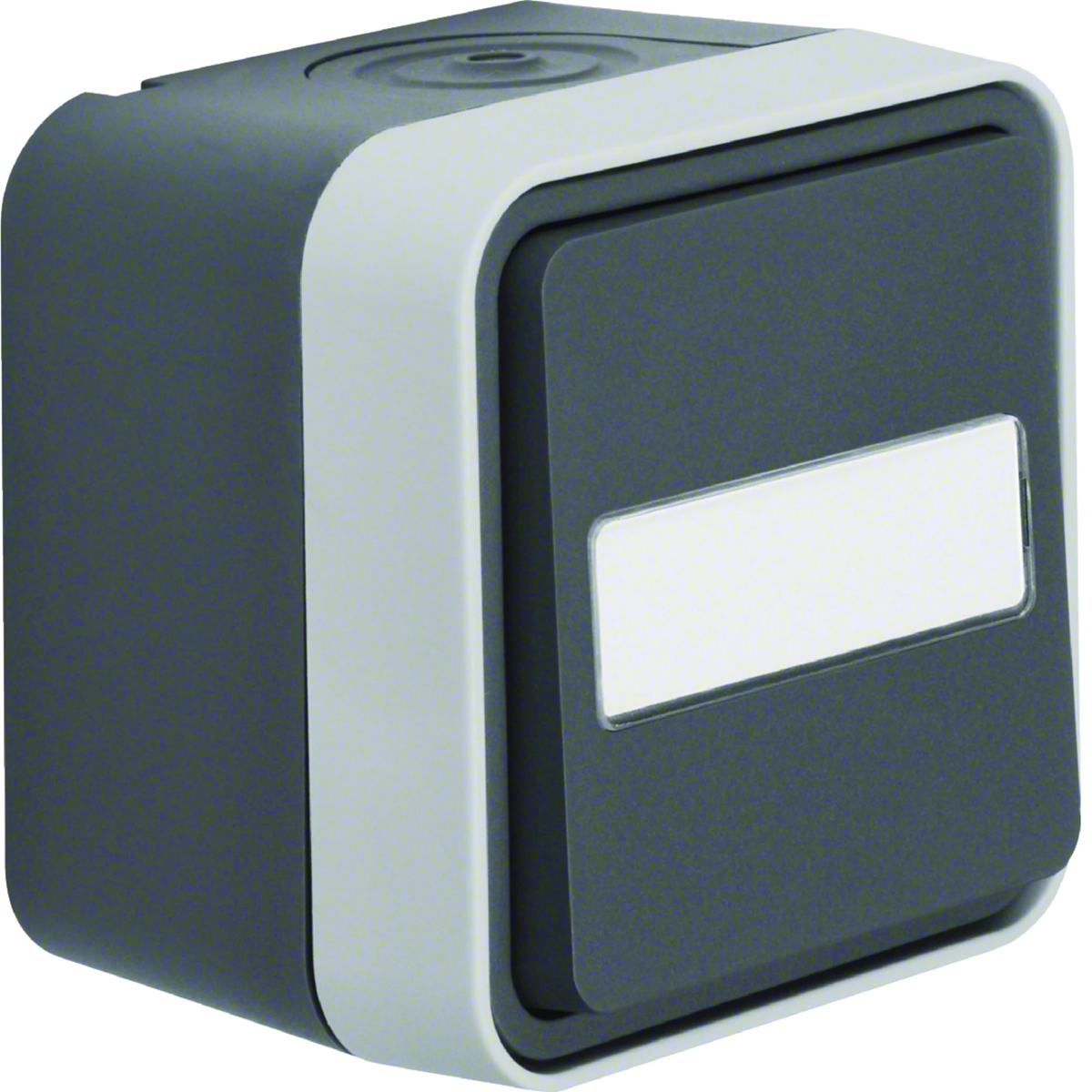

W.1 Universal push-button switch with illuminated description field complete IP55 grey 50763555

local index:
MNZ008BERK
Catalog No:
50763555
EAN code:
4011334391159
Manufacturer: BERKER
Depth [mm]: 61.5
Number of keys: 1
Color: Gray
Price:
35,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Universal push-button switchwith illuminated description field, complete, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

  • with 2 clips for Wago 2-pole connection terminal block on the underside of the housing
  • with Wago 2-pole connection terminal block for wiring
  • with 2-wire entry and cable entry or pipes
  • with a 230V LED
  • with a full-surface seal on the back side of the housing enabling the cable to be inserted from the back side and fitting to the plaster
  • operating voltage 230V~
  • maximum switching current 10 AX
  • description field (width x height) ≈ 50 x 16 mm
  • height of description field adapted to P-touch strips with a height of 12 mm
  • complete with a description field printed with the symbol of light, bell, key
  • springs of the latching cover made of stainless steel, latch pins made of ZnAl alloy
  • with a neutral terminal

Technical data

  • Depth [mm]
    61.5
  • Color
    Gray
  • Material
    Plastic
  • Descriptive field
    Yes
  • Type
    Short
  • Level of security
    IP55
  • Version
    Confident
  • Surface finish
    matte
  • Backlight
    Yes
  • For the frame system
    NO
  • Backlight type
    LED
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Rated voltage [V]
    230
  • Rated current [A]
    10
  • Family
    W.1
  • Type
    Surface-mounted
  • Height [mm]
    76
  • Accurate color
    dark grey
  • Terminal type
    Threadless
  • Exact material
    Thermoplastic
  • Backlight color
    Blue

Other technical data

  • Model
    Single push button
  • Number of modules (module system)
    0
  • With signal lamp
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Imprint
    None
  • Device width
    55.5 mm
  • Device depth
    27.8 mm
  • Number of rockers
    1
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    55.5 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 30 pcs. 960 pcs.
Weight (kg) 0,126 1,360 4,476 168,232
Width (m) 0,076 0,160 0,300 0,800
Length (m) 0,062 0,085 0,225 1,050
Depth (m) 0,076 0,325 0,400 1,200
