W.1 Universal push-button switch with backlight IP55 grey 50463525

Name: W.1 Universal push-button switch with backlight IP55 grey
Brand: BERKER
SKU: MMZ014BERK
Price: 37.05 PLN

local index:

MMZ014BERK

Catalog No:

50463525

EAN code:

4011334390350

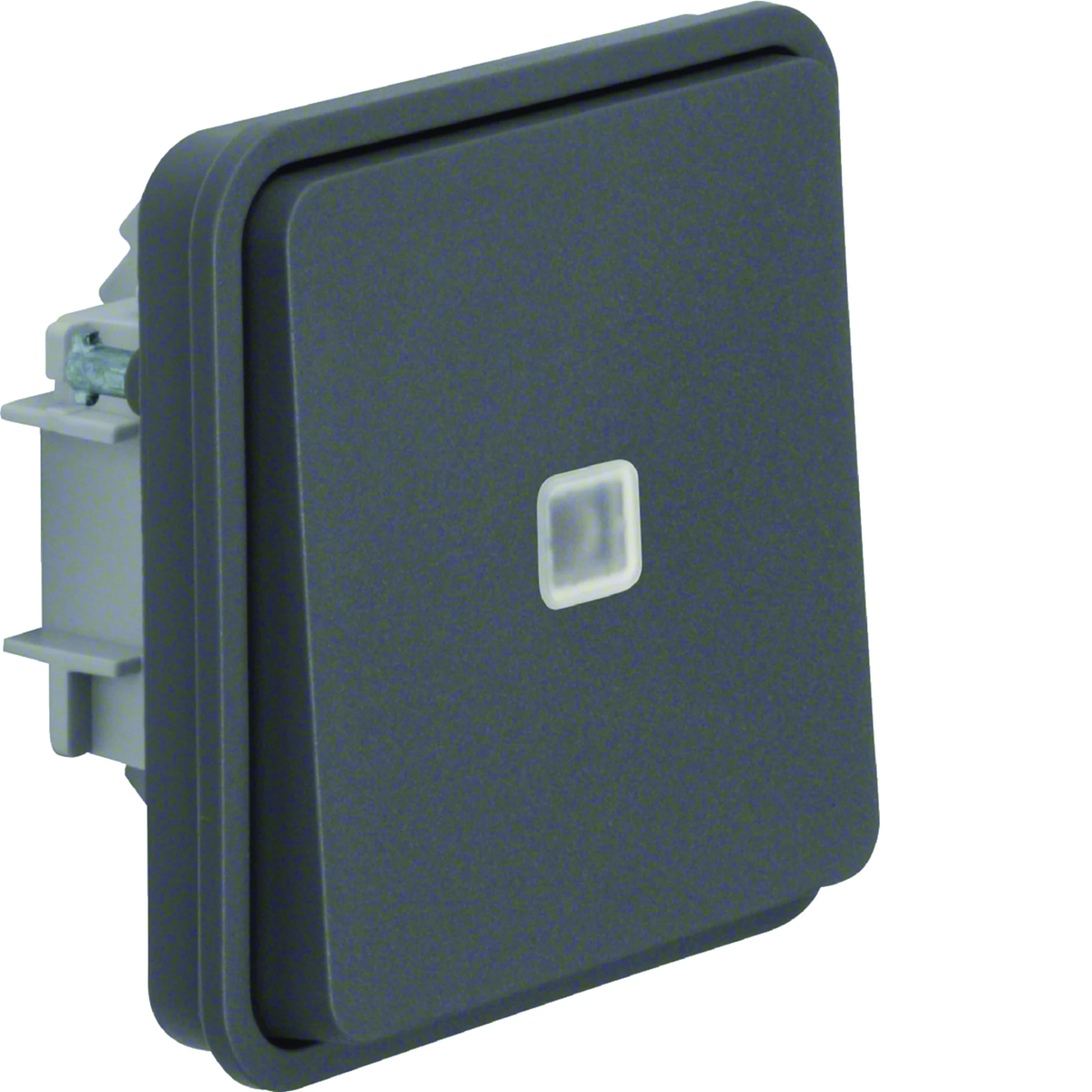

W.1 Universal push-button switch with backlight IP55 grey

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 42

Number of keys: 1

Color: Gray

See full description

Price:

37,05 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Universal push-button switch with backlight, W.1 series, from Berker. The product catalog number is 50463525.

FEATURES

Mounting: for screw connection.
Connection:
- With N-clamp.
- With plug-in terminals.
With 230 V blue LED.
For connection with backlight and control connection with backlight.
Quick release pins made of ZAMAK.
Mechanisms achieve IP55 protection only when assembled with ;surface-mounted housing or flush-mounted frame.

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. Operating switch characterizes the features of this series.

Technical data

Depth [mm]

42
Color

Gray
Material

Plastic
Rated voltage [V]

230
Type

Short
Level of security

IP55
Type

Recessed Surface-mounted
Height [mm]

71
Accurate color

dark grey
Variant

Ordinary
Exact material

Thermoplastic
Backlight color

Blue

Number of keys

1
Shape

Square
Installation

Recessed Surface-mounted
Rated current [A]

10
Family

W.1
Width [mm]

71
Version

Confident
Surface finish

matte
Backlight

Yes
For the frame system

Yes
Backlight type

LED
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with adapter plate
Method of operation

Rocker
Number of modules (module system)

0
Rated current

10 A
With signal lamp

Yes
Mounting method

Surface mounted
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

Grey
Transparent

No
Imprint

None
Device width

55 mm
Device depth

41 mm

Model

Single push button
Number of rockers

1
Nominal voltage

250 V
With lighting

No
Feedback-signal contact

No
Type of fastening

Screw mounting
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Matt
RAL-number (similar)

7011
Label space/information surface

No
Suitable for degree of protection (IP)

IP55
Device height

55 mm
Min. depth of built-in installation box

0 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	40 pcs.	1280 pcs.
Weight (kg)	0,055	0,710	3,284	128,088
Width (m)	0,071	0,175	0,300	0,800
Length (m)	0,042	0,095	0,225	1,050
Depth (m)	0,071	0,230	0,400	1,200
