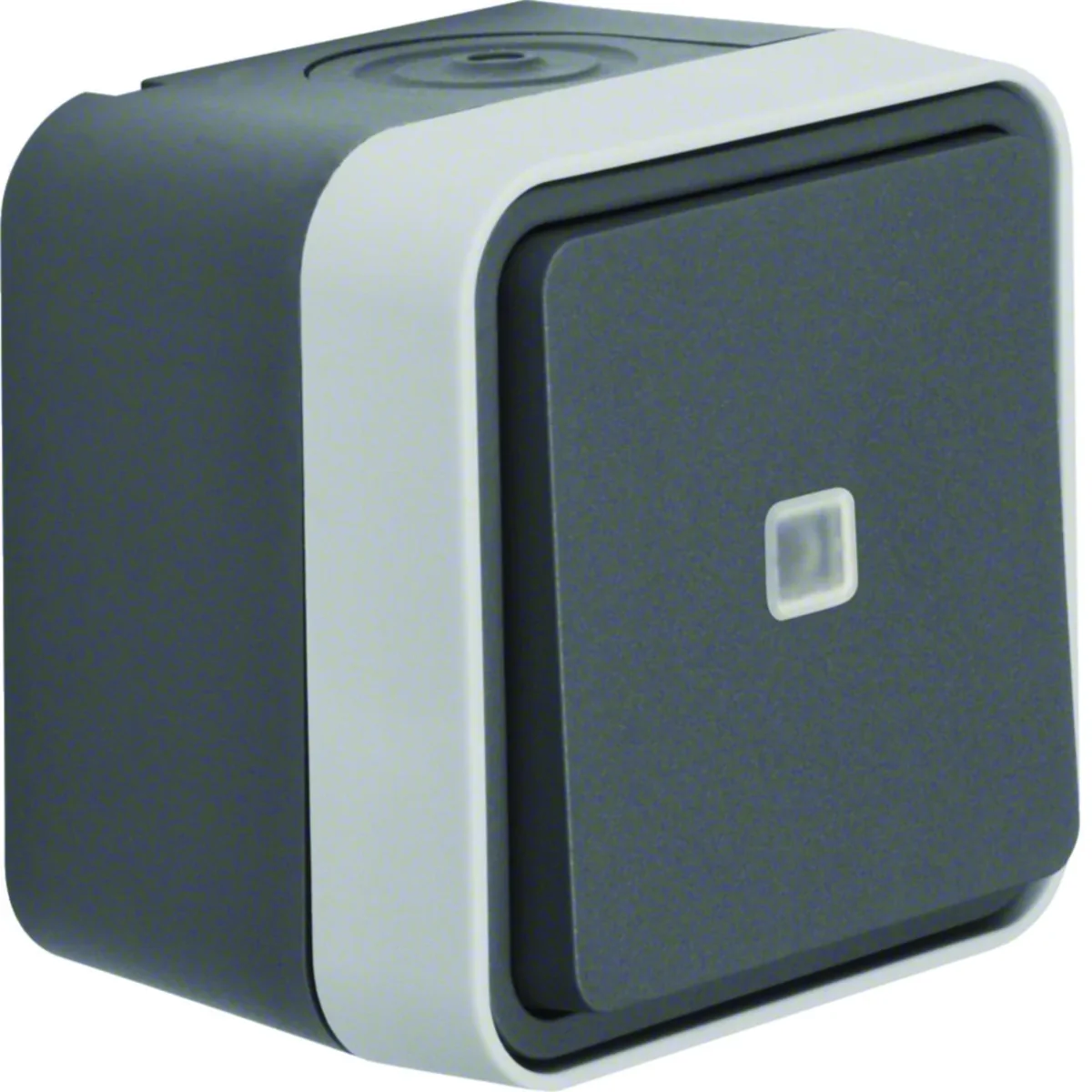

W.1 Universal push-button switch with backlight complete IP55 grey 50763505

local index:
MNZ006BERK
Catalog No:
50763505
EAN code:
4011334395263
Manufacturer: BERKER
Depth [mm]: 61.5
Number of keys: 1
Color: Gray
Price:
35,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Universal push-button switch with backlight, from the W.1 series, from Berker. The product part number is 50763505.



FEATURES

  • Complete.
  • Surface mounted .
  • With Wago 2-pole connection terminal for wiring.
  • With 2 clips for Wago 2-pole connection terminal on the underside of the housing.
  • With terminals plug-in connectors.
  • With N-clamp.
  • With entry for 2 wires and entry of cable or pipe.
  • With full-surface seal on the rear side of the housing allowing for cable entry from the rear side and fitting to plaster.
  • With 230V blue LED.
  • For backlight connection and backlight control connection.
  • Quick release pins made of ZAMAK.
  • Stainless stainless steel latching cover springs, ZnAl alloy latch pins.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative design. NO switch characterized by features of this unique series.

Technical data

  • Depth [mm]
    61.5
  • Color
    Gray
  • Material
    Plastic
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    76
  • Version
    Confident
  • Surface finish
    matte
  • Backlight
    Yes
  • For the frame system
    NO
  • Backlight type
    LED
  • Backlight color
    Blue
  • Number of keys
    1
  • Shape
    Square
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Height [mm]
    76
  • Accurate color
    dark grey
  • Terminal type
    Threadless
  • Exact material
    Thermoplastic
  • Seal
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    Single push button
  • Number of modules (module system)
    0
  • With signal lamp
    Yes
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    76 mm
  • Min. depth of built-in installation box
    0 mm
  • Number of rockers
    1
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Imprint
    None
  • Device width
    76 mm
  • Device depth
    61.5 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 30 pcs. 960 pcs.
Weight (kg) 0,124 1,332 4,436 166,952
Width (m) 0,076 0,160 0,300 0,800
Length (m) 0,062 0,085 0,225 1,050
Depth (m) 0,076 0,325 0,400 1,200
