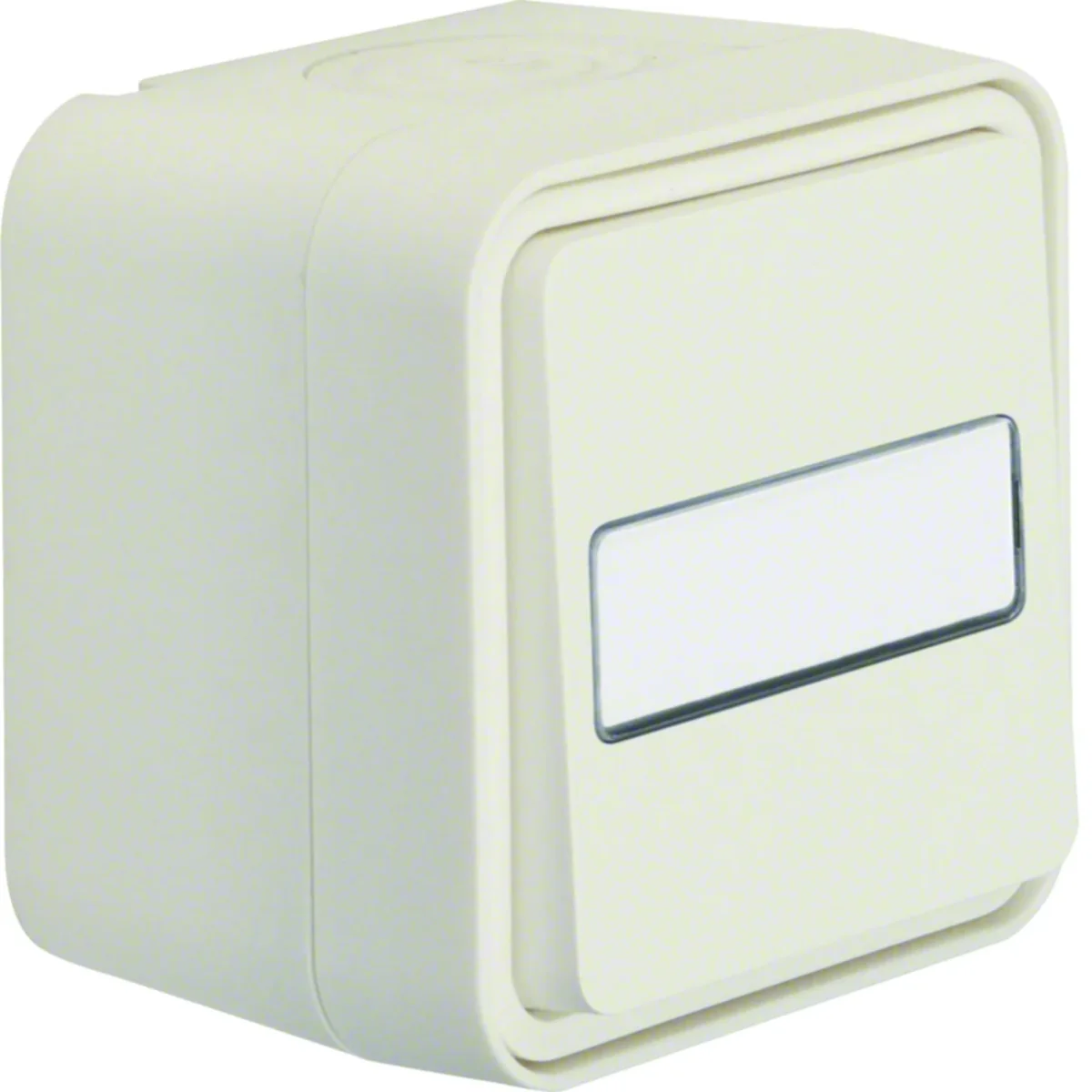

W.1 Universal connector with illuminated description field IP55 white set 30763552

local index:
MNS005BERK
Catalog No:
30763552
EAN code:
4011334391142
Manufacturer: BERKER
Depth [mm]: 61.5
Number of keys: 1
Color: White
Price:
31,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Universal stair switchfrom the W.1 series, from Berker. The product catalog number is 30763552.



FEATURES

  • With backlit description field.
  • < li>Complete.
  • Surface-mounted.
  • Lettering field (width x height): 50 x 16 mm.
  • For screw connection.
  • Quick Connect.
  • With Wago 2-pole connection terminal for wiring.
  • With 2 clips for Wago 2-pole connection terminal on the bottom of the housing.
  • With plug-in terminals.
  • With N-clamp.
  • With 2-cable entry and cable or pipe entry.
  • With blue 230 V LED.
  • To be connected with backlight.
  • With full-surface seal on the back side of the housing enabling cable entry from the back side and adjustment to the plaster.
  • Quick release pins made of ZAMAK.
  • Stainless stainless steel latch cover springs, ZnAl alloy latch pins.
  • The height of the description field is adapted to the 12 mm P-touch strip .



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment which is distinguished by its innovative appearance. The stair switch characterizes the features of this unique series.

Technical data

  • Depth [mm]
    61.5
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    76
  • Height [mm]
    76
  • Backlight
    Yes
  • For the frame system
    NO
  • Backlight type
    LED
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Installation
    Surface-mounted
  • Descriptive field
    Yes
  • Type
    Stairs Single
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Surface finish
    matte
  • Terminal type
    Threadless
  • Exact material
    Thermoplastic
  • Backlight color
    Blue

Other technical data

  • Wiring system
    Two-way switch
  • Number of rockers
    1
  • Type of fastening
    Screw mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Suitable for degree of protection (IP)
    IP55
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Device width
    50 mm
  • Device depth
    61.5 mm
  • Min. depth of built-in installation box
    0 mm
  • Assembly arrangement
    Basic element with complete housing
  • Mounting method
    Surface mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    Yes
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device height
    16 mm
  • Built-in depth
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,129 0,148 5,768 204,569
Width (m) 0,076 0,081 0,300 0,800
Length (m) 0,062 0,070 0,225 1,050
Depth (m) 0,076 0,081 0,400 1,200
