W.1 Universal connector with illuminated description field IP55 white 30863532

Name: W.1 Universal connector with illuminated description field IP55 white
Brand: BERKER
SKU: MNS011BERK
Price: 135.37 PLN
Availability: BackOrder

local index:

MNS011BERK

Catalog number:

30863532

EAN code:

4011334390282

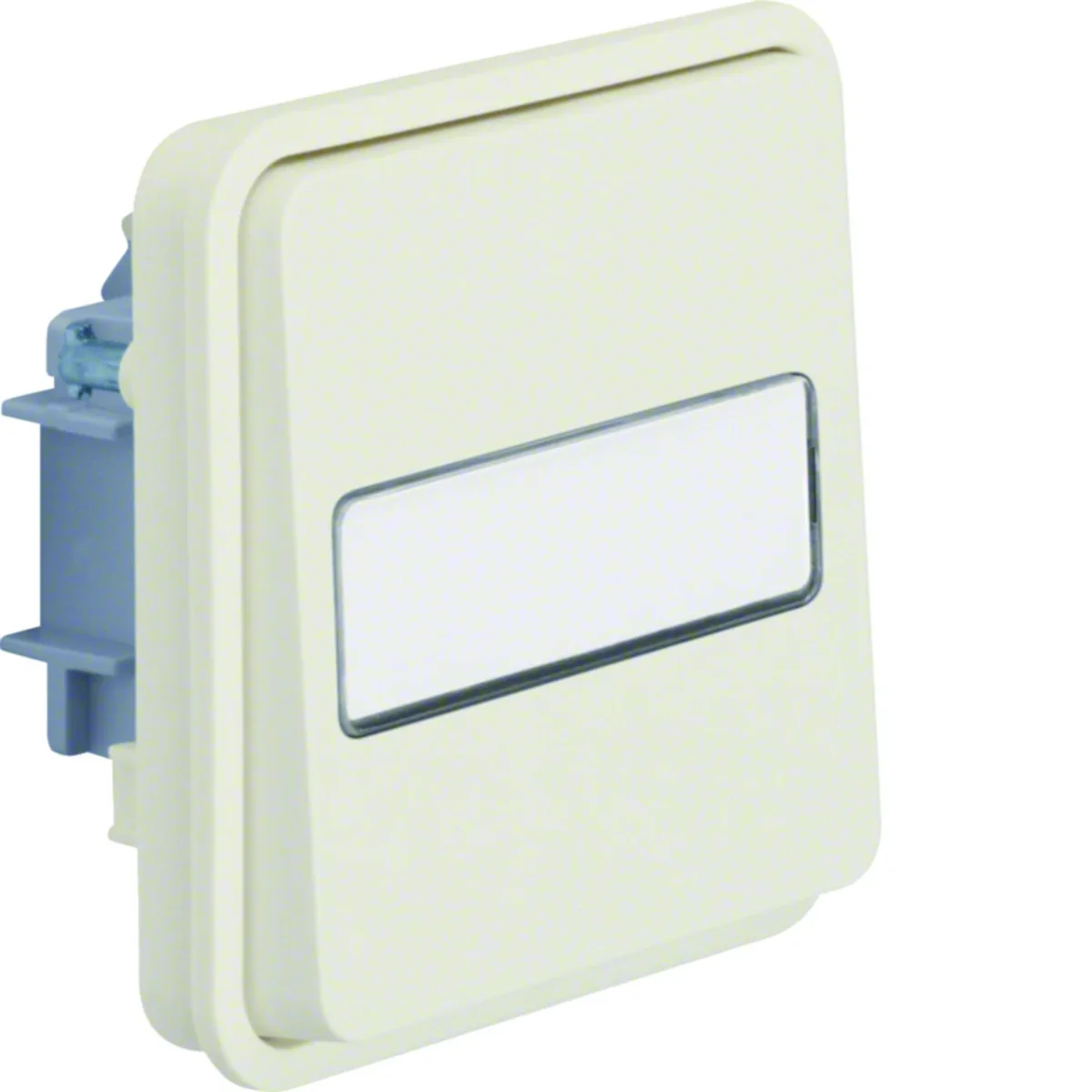

W.1 Universal connector with illuminated description field IP55 white

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 42

Color: White

Material: Thermoplastic

See full description

Price:

135,37 zł

gross / pcs.

(including VAT 23%)

up to 10 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Universal connector with illuminated description field, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

Connection:

Wago 3-pole connection terminal for connection
with N terminal
with push-in terminals

Cable:

with top and bottom cable entry

Accessories :

with 230 V LED,
for control connection with backlight,

Additional information :

the mechanisms achieve the IP55 degree of protection only when mounted with a surface-mounted housing or a frame for flush-mounting
Quick release pins made of ZAMAK
Height descriptive field adapted to the 12 mm P-touch strip

Technical data

Depth [mm]

42
Material

Thermoplastic
DC rated voltage [V]

250
Rated current [A]

10
Level of security

IP55
Operating temperature range [°C]

from -40 to 30
storage temperature [°C]

from -50 to 50

Color

White
Rated voltage [V]

230
Surface

Matt
Family

W.1
Width [mm]

70
Connection type

with N terminal, pluggable
PKWIU

27.33.11.0

Other technical data

Wiring system

Two-way switch
Number of rockers

1
Type of fastening

Screw mounting
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

White
Label space/information surface

Yes
Function lighting

Illuminated (on)
Suitable for degree of protection (IP)

IP55
Rated current

10 A
Feedback-signal contact

No
Heating switch

No
Device width

55 mm
Device depth

35 mm
Min. depth of built-in installation box

0 mm
Compatible with Google Assistant

No
IFTTT support available

No

Assembly arrangement

Basic element with adapter plate
Mounting method

Surface mounted
With mounting plate

No
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Matt
RAL-number (similar)

9010
Illumination

Optional
Type of lighting

LED exchangeable
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Washing machine switch

No
Device height

55 mm
Built-in depth

12 mm
Compatible with Apple HomeKit

No
Compatible with Amazon Alexa

No
Compliant with UK Building Regulations Part M

No

Manufacturer details

Manufacturer

Berker GmbH & Co. KG.
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,082	3,392	133,544
Width (m)	0,080	0,300	0,800
Length (m)	0,070	0,220	1,050
Depth (m)	0,080	0,400	1,200
