W.1 Universal connector with illuminated description field IP55 grey 30863535

Name: W.1 Universal connector with illuminated description field IP55 grey
Brand: BERKER
SKU: MNS012BERK
Price: 135.37 PLN
Availability: BackOrder

Indice locale:

MNS012BERK

Numero di catalogo:

30863535

Codice EAN:

4011334390275

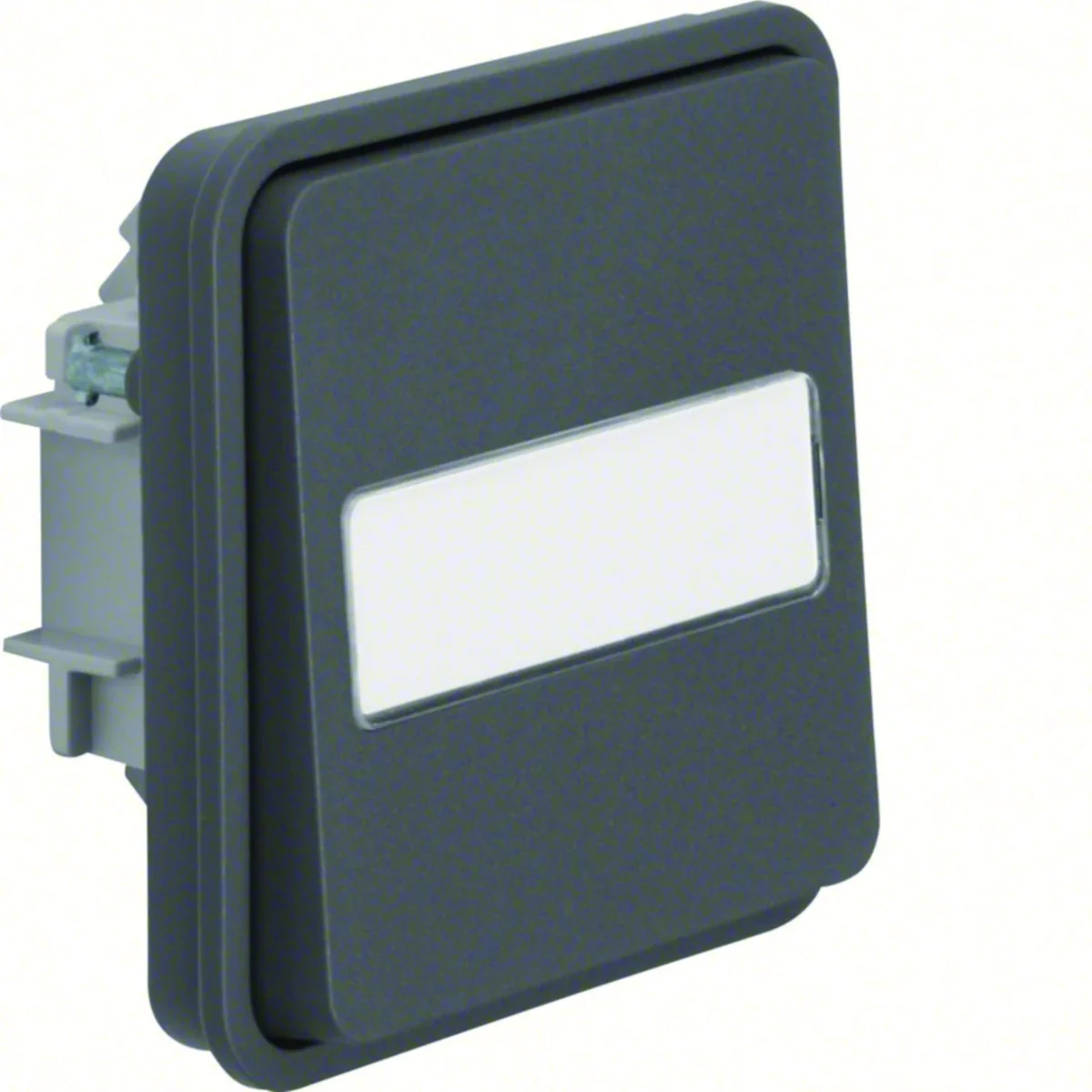

W.1 Universal connector with illuminated description field IP55 grey

Clicca sulla foto per ingrandire

Produttore: BERKER

Depth [mm]: 42

Color: Gray

Material: Thermoplastic

Vedi la descrizione completa

Prezzo:

135,37 zł

gross / pezzi

(inclusa IVA 23%)

fino a 10 settimane

Su ordinazione

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Universal connector with illuminated description field, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

Connection:

Wago 3-pole connection terminal for connection
with N terminal
with push-in terminals

Cable:

with top and bottom cable entry

Accessories :

with 230 V LED,
for control connection with backlight,

Additional information :

the mechanisms achieve the IP55 degree of protection only when mounted with a surface-mounted housing or a frame for flush-mounting
ZAMAK quick release pins
Height descriptive field adapted to the 12 mm P-touch strip

Dati tecnici

Depth [mm]

42
Material

Thermoplastic
DC rated voltage [V]

250
Rated current [A]

10
Level of security

IP55
Operating temperature range [°C]

from -40 to 30
Connection type

with N terminal, pluggable
PKWIU

27.33.11.0

Color

Gray
Rated voltage [V]

230
Surface

Matt
Family

W.1
Width [mm]

70
Accurate color

dark grey
storage temperature [°C]

from -50 to 50

Altri dati tecnici

Wiring system

Two-way switch
Assembly arrangement

Basic element with adapter plate
Mounting method

Surface mounted
With mounting plate

No
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Matt
RAL-number (similar)

7011
Illumination

Optional
Type of lighting

LED exchangeable
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Washing machine switch

No
Device height

55 mm
Built-in depth

12 mm
Compatible with Apple HomeKit

No
Compatible with Amazon Alexa

No
Compliant with UK Building Regulations Part M

No

Method of operation

Rocker/button
Number of rockers

1
Type of fastening

Screw mounting
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

Blue
Label space/information surface

No
Function lighting

Illuminated (on)
Suitable for degree of protection (IP)

IP55
Rated current

10 A
Feedback-signal contact

No
Heating switch

No
Device width

55 mm
Device depth

35 mm
Min. depth of built-in installation box

0 mm
Compatible with Google Assistant

No
IFTTT support available

No

Dettagli del produttore

Produttore

Berker GmbH & Co. KG.
Indirizzo

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Pakiet	Paleta
Quantità	10 pezzi	40 pezzi	1280 pezzi
Peso (kg)	0,725	3,340	129,880
Larghezza (m)	0,170	0,290	0,800
Lunghezza (m)	0,090	0,230	1,050
Profondità (m)	0,230	0,390	1,200
