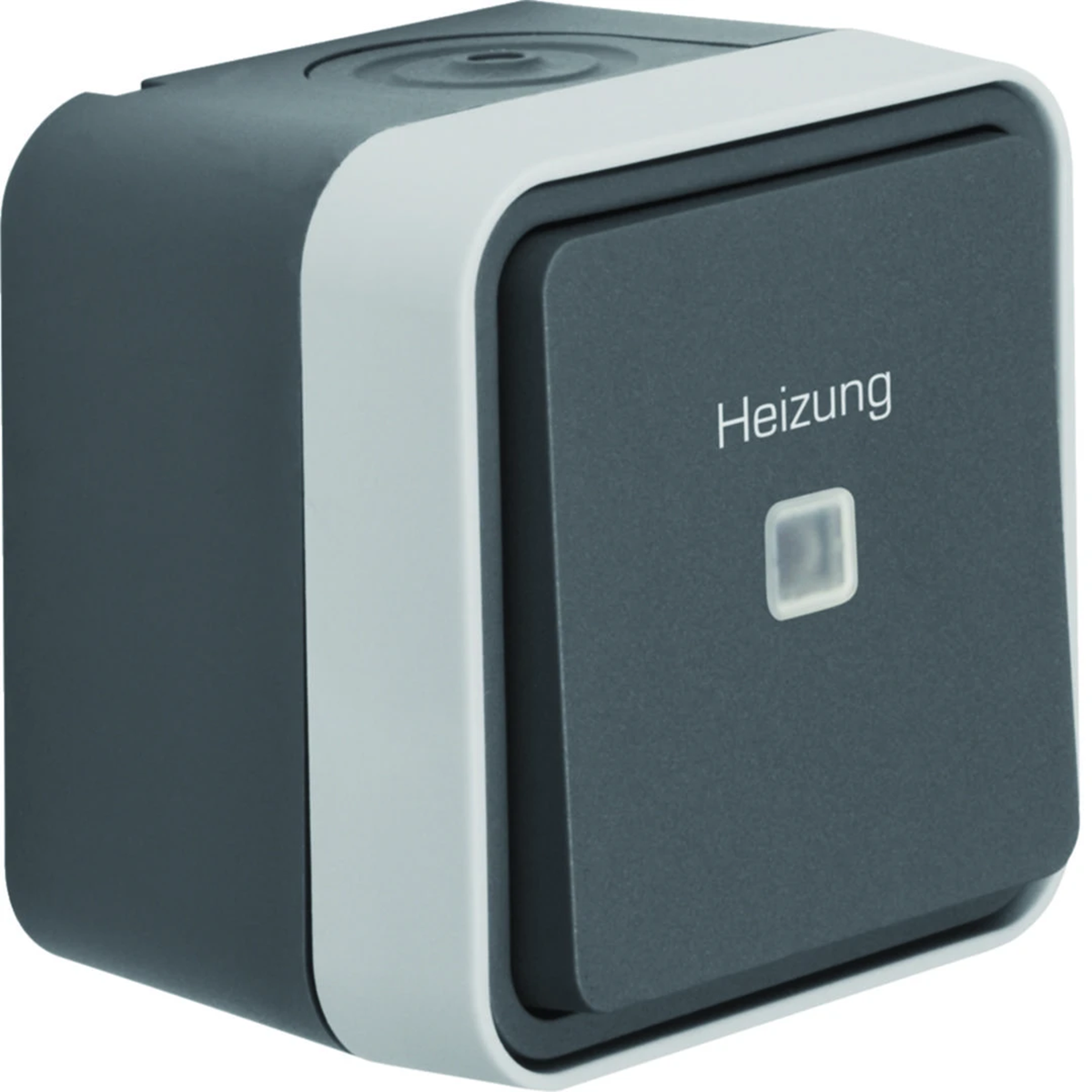

W.1 Universal connector with "Heizung" print complete IP55 grey 35663505

local index:
MNS016BERK
Catalog No:
35663505
EAN code:
4011334395003
Manufacturer: BERKER
Depth [mm]: 62
Number of keys: 1
Color: Gray
Price:
39,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Universal stair switchfrom the W.1 series, from Berker. The product part number is 35663505.



FEATURES

  • With "Heizung"".
  • Complete.
  • Surface-mounted.
  • For screw connection.
  • Quick Connect.
  • With Wago 2-pole connection terminal for wiring.
  • With 2 clips for Wago 2-pole connection terminal on the underside of the housing.
  • With plug-in terminals.
  • With terminal N.< /li>
  • With 2-wire entry and cable or pipe entry.
  • With 230 V blue LED.
  • For backlit control connection.
  • With full-surface gasket on the back side of the housing, enabling cable entry from the back side and adjustment to the plaster.
  • Not suitable for heating installations > 50kW.
  • Quick release pins made of ZAMAK.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative appearance. The stair switch characterizes the features of this unique series.

Technical data

  • Depth [mm]
    62
  • Color
    Gray
  • Material
    Plastic
  • Overprint
    Heizung
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    76
  • Height [mm]
    76
  • Accurate color
    dark grey
  • Terminal type
    Threadless
  • Exact material
    Thermoplastic
  • Number of keys
    1
  • Shape
    Square
  • Installation
    Surface-mounted
  • Rated voltage [V]
    230
  • Type
    Stairs Single
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Surface finish
    matte
  • Backlight
    Yes
  • For the frame system
    NO
  • PKWIU
    27.33.11.0

Other technical data

  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • Nominal voltage
    250 V
  • Device width
    70.8 mm
  • Device depth
    41.6 mm
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Suitable for degree of protection (IP)
    IP55
  • Connection type
    Push-in clamp
  • Device height
    70.8 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,123 0,138 2,924 118,568
Width (m) 0,076 0,080 0,300 0,800
Length (m) 0,062 0,075 0,225 1,050
Depth (m) 0,076 0,080 0,400 1,200
