W.1 Universal connector with control backlight IP55 grey 30863515

Name: W.1 Universal connector with control backlight IP55 grey
Brand: BERKER
SKU: MNS008BERK
Price: 126.09 PLN
Availability: BackOrder

Índice local:

MNS008BERK

Número de catálogo:

30863515

Código EAN:

4011334390176

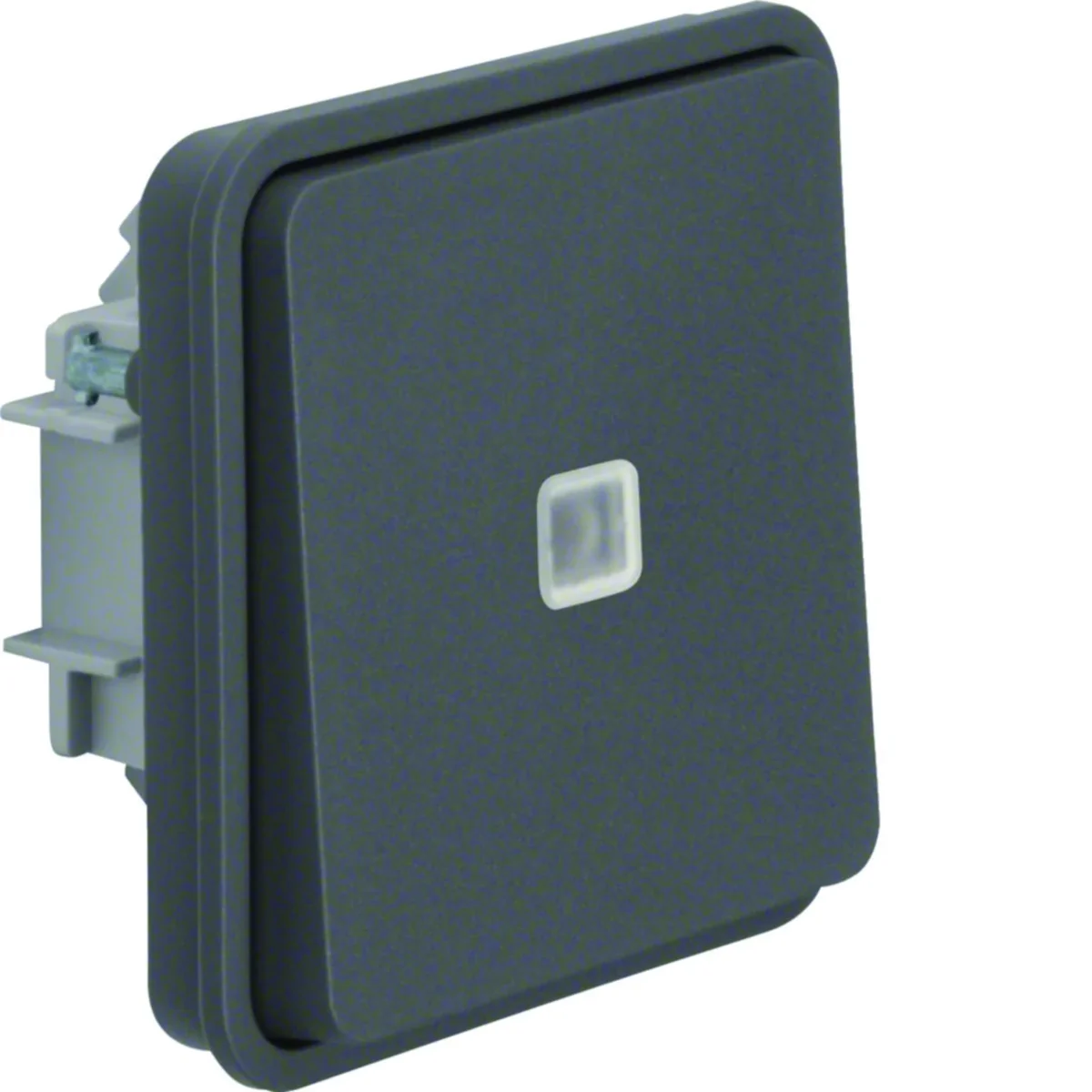

W.1 Universal connector with control backlight IP55 grey

Haga clic en la foto para ampliar

Fabricante: BERKER

Depth [mm]: 42

Color: Gray

Material: Thermoplastic

Ver descripción completa

Precio:

126,09 zł

gross / uds.

(IVA incluido 23%)

hasta 10 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Universal switch with control illumination, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

Connection:

with N terminal
with plug-in terminals

Wire:< /p>

with top and bottom cable entry

Accessories:

with LED 230 V,
for control connection with backlight,

Additional information:

mechanisms reach protection level IP55 only when mounted with a surface-mounted housing or a frame for flush-mounting
ZAMAK quick release pins

Datos técnicos

Depth [mm]

42
Material

Thermoplastic
DC rated voltage [V]

250
Rated current [A]

10
Level of security

IP55
Operating temperature range [°C]

from -40 to 30
Connection type

With plug-in terminals, N
PKWIU

27.33.11.0

Color

Gray
Rated voltage [V]

230
Surface

Matt
Family

W.1
Width [mm]

70
Accurate color

dark grey
storage temperature [°C]

from -50 to 50

Otros datos técnicos

Wiring system

Two-way switch
Assembly arrangement

Basic element with adapter plate
Mounting method

Surface mounted
With mounting plate

No
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Matt
RAL-number (similar)

7011
Illumination

Optional
Type of lighting

LED exchangeable
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Washing machine switch

No
Device height

70 mm
Built-in depth

12 mm
Compatible with Apple HomeKit

No
Compatible with Amazon Alexa

No
Compliant with UK Building Regulations Part M

No

Method of operation

Rocker/button
Number of rockers

1
Type of fastening

Screw mounting
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

Blue
Label space/information surface

No
Function lighting

Illuminated (on)
Suitable for degree of protection (IP)

IP55
Rated current

10 A
Feedback-signal contact

No
Heating switch

No
Device width

70 mm
Device depth

42 mm
Min. depth of built-in installation box

0 mm
Compatible with Google Assistant

No
IFTTT support available

No

Detalles del fabricante

Fabricante

Berker GmbH & Co. KG.
Dirección

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Empaquetado a granel

una especie de paquete	Karton	Pakiet	Paleta
Cantidad	10 uds.	40 uds.	1280 uds.
Peso (kg)	0,710	3,280	129,960
Ancho (m)	0,180	0,300	0,800
Longitud (m)	0,090	0,220	1,050
Profundidad (m)	0,230	0,400	1,200
