W.1 Universal connector with backlight IP55 white 30863522

Índice local:
MNS009BERK
Número de catálogo:
30863522
Código EAN:
4011334390206
Fabricante: BERKER
Depth [mm]: 42
Color: White
Material: Thermoplastic
Precio:
127,11 zł
gross / uds.
(IVA incluido 23%)
hasta 10 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

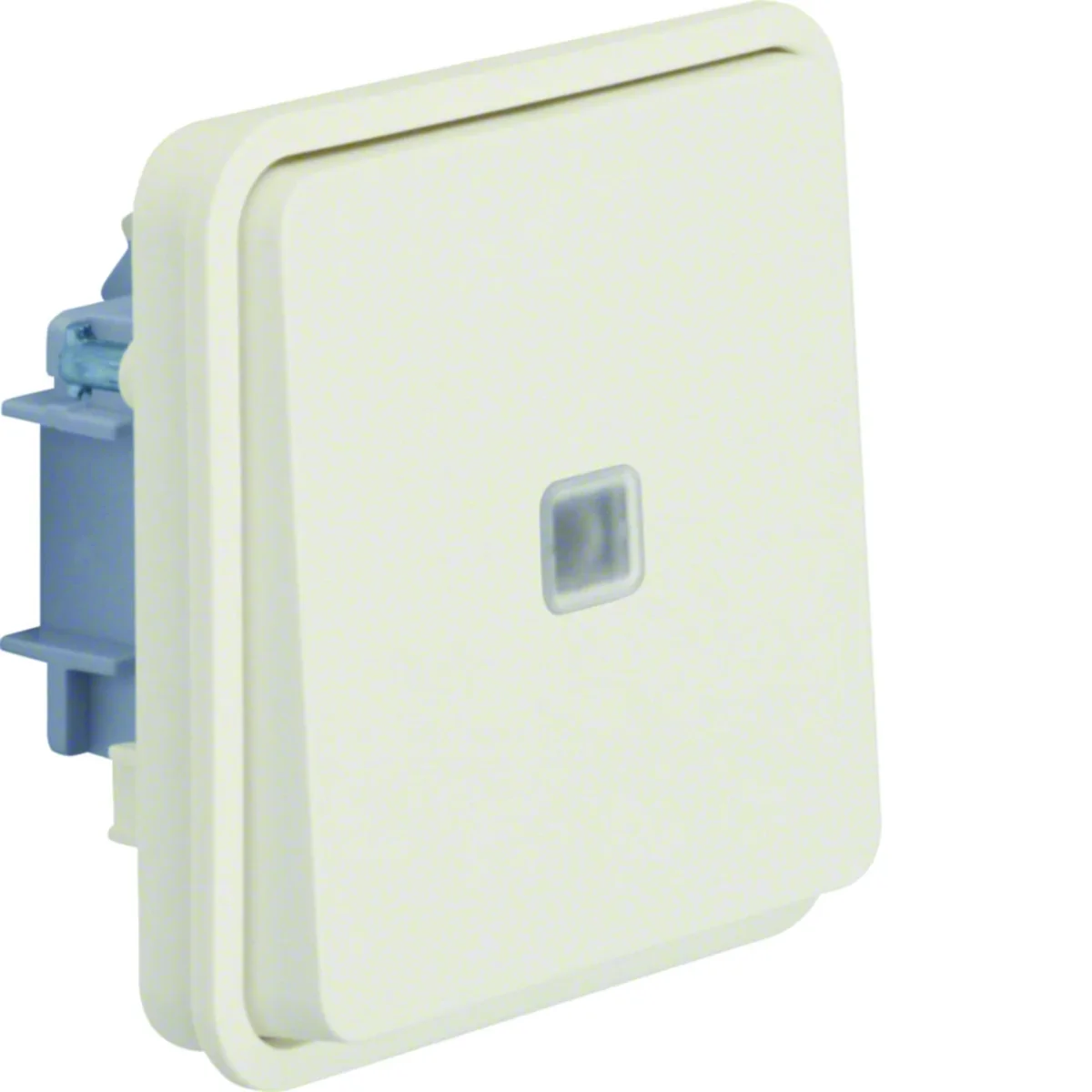

Universal switch with backlight, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

Connection :

  • with N-clamp
  • with plug-in terminals

Cable:

  • with top and bottom cable entry

Accessories:

  • with 230 V LED ,
  • for control connection with backlight,

Additional information:

  • mechanisms achieve IP55 protection only when mounted with a surface-mounted housing or a frame for flush-mounting
  • ZAMAK quick release pins

Datos técnicos

  • Depth [mm]
    42
  • Material
    Thermoplastic
  • DC rated voltage [V]
    250
  • Rated current [A]
    10
  • Level of security
    IP55
  • Operating temperature range [°C]
    from -40 to 30
  • storage temperature [°C]
    from -50 to 50
  • Color
    White
  • Rated voltage [V]
    230
  • Surface
    Matt
  • Family
    W.1
  • Width [mm]
    70
  • Connection type
    with N terminal, pluggable
  • PKWIU
    27.33.11.0

Otros datos técnicos

  • Wiring system
    Two-way switch
  • Number of rockers
    1
  • Type of fastening
    Screw mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Function lighting
    Illuminated (on)
  • Suitable for degree of protection (IP)
    IP55
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Heating switch
    No
  • Device width
    58 mm
  • Device depth
    35 mm
  • Min. depth of built-in installation box
    0 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Assembly arrangement
    Basic element with adapter plate
  • Mounting method
    Surface mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Illumination
    Optional
  • Type of lighting
    LED exchangeable
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Washing machine switch
    No
  • Device height
    58 mm
  • Built-in depth
    12 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Compliant with UK Building Regulations Part M
    No

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Pakiet Paleta
Cantidad 1 uds. 36 uds. 1152 uds.
Peso (kg) 0,072 3,290 128,280
Ancho (m) 0,080 0,290 0,800
Longitud (m) 0,070 0,220 1,050
Profundidad (m) 0,080 0,400 1,200
