W.1 Universal connector with backlight IP55 grey 30863525

Name: W.1 Universal connector with backlight IP55 grey
Brand: BERKER
SKU: MNS010BERK
Price: 127.11 PLN
Availability: BackOrder

Lokaler Index:

MNS010BERK

Katalognummer:

30863525

EAN-Code:

4011334390190

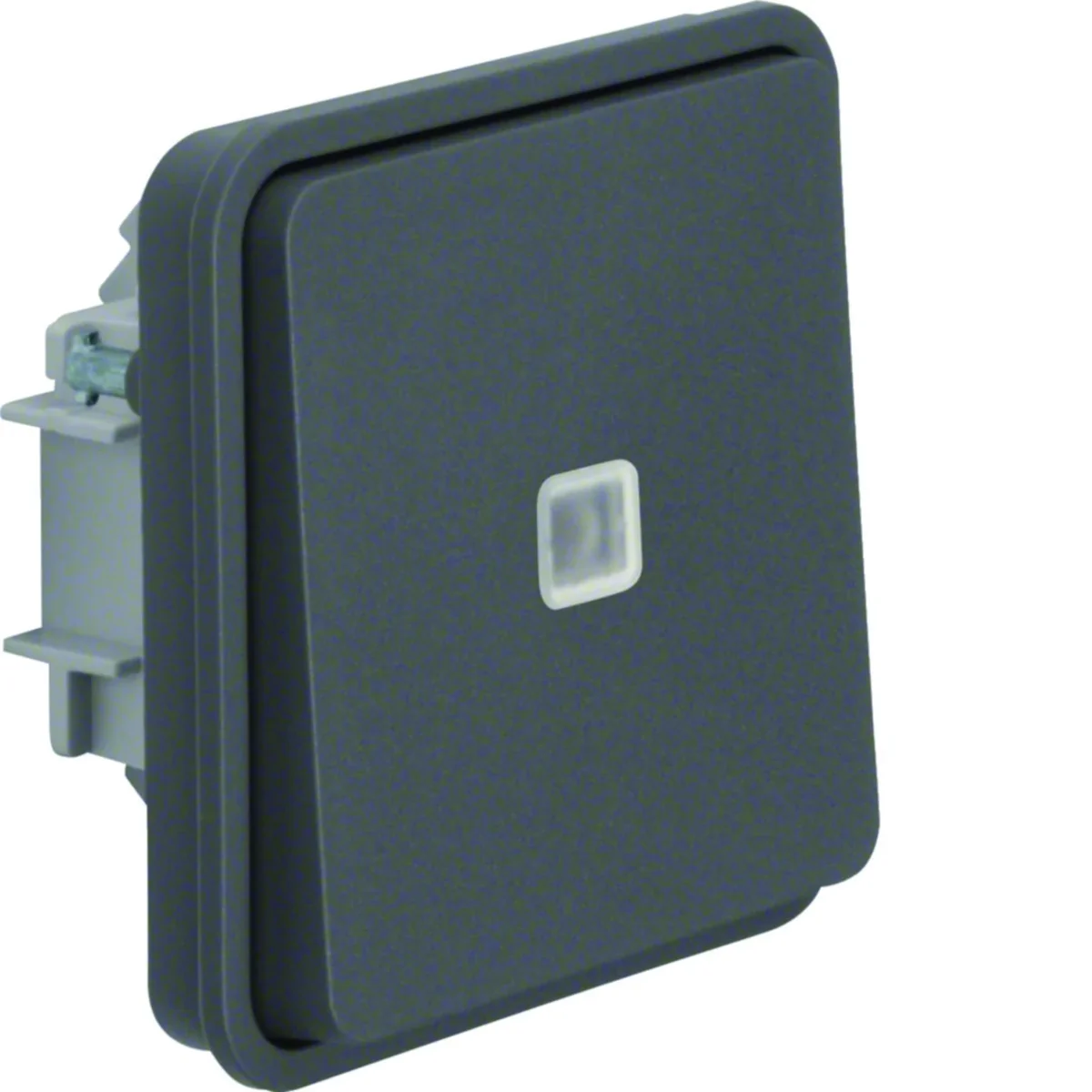

W.1 Universal connector with backlight IP55 grey

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: BERKER

Depth [mm]: 42

Color: Gray

Material: Thermoplastic

Siehe vollständige Beschreibung

Preis:

127,11 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 10 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Universal switch with backlight, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

Connection :

with N-clamp
with plug-in terminals

Cable:

with top and bottom cable entry

Accessories:

with 230 V LED ,
for control connection with backlight,

Additional information:

mechanisms achieve IP55 protection only when mounted with a surface-mounted housing or a frame for flush-mounting
ZAMAK quick release pins

Technische Daten

Depth [mm]

42
Material

Thermoplastic
DC rated voltage [V]

250
Rated current [A]

10
Level of security

IP55
Operating temperature range [°C]

from -40 to 30
Connection type

with N terminal, pluggable
PKWIU

27.33.11.0

Color

Gray
Rated voltage [V]

230
Surface

Matt
Family

W.1
Width [mm]

70
Accurate color

dark grey
storage temperature [°C]

from -50 to 50

Weitere technische Daten

Wiring system

Two-way switch
Assembly arrangement

Basic element with adapter plate
Mounting method

Surface mounted
With mounting plate

No
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Matt
RAL-number (similar)

7011
Illumination

Optional
Type of lighting

LED exchangeable
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Washing machine switch

No
Device height

55 mm
Built-in depth

12 mm
Compatible with Apple HomeKit

No
Compatible with Amazon Alexa

No
Compliant with UK Building Regulations Part M

No

Method of operation

Rocker/button
Number of rockers

1
Type of fastening

Screw mounting
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

Grey
Label space/information surface

No
Function lighting

Illuminated (on)
Suitable for degree of protection (IP)

IP55
Rated current

10 A
Feedback-signal contact

No
Heating switch

No
Device width

55 mm
Device depth

35 mm
Min. depth of built-in installation box

0 mm
Compatible with Google Assistant

No
IFTTT support available

No

Hersteller-Details

Hersteller

Berker GmbH & Co. KG.
Adresse

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-Mail

wsparcie.klienta@hager.com

Großpackungen

Eine Art Paket	Karton	Pakiet	Paleta
Menge	10 stk.	40 stk.	1280 stk.
Gewicht (kg)	0,715	3,300	130,600
Breite (m)	0,170	0,300	0,800
Länge (m)	0,090	0,220	1,050
Tiefe (m)	0,230	0,400	1,200
