W.1 Universal connector IP55 complete white 30763502

Name: W.1 Universal connector IP55 complete white
Brand: BERKER
SKU: MNS002BERK
Price: 19.78 PLN

local index:

MNS002BERK

Catalog No:

30763502

EAN code:

4011334393870

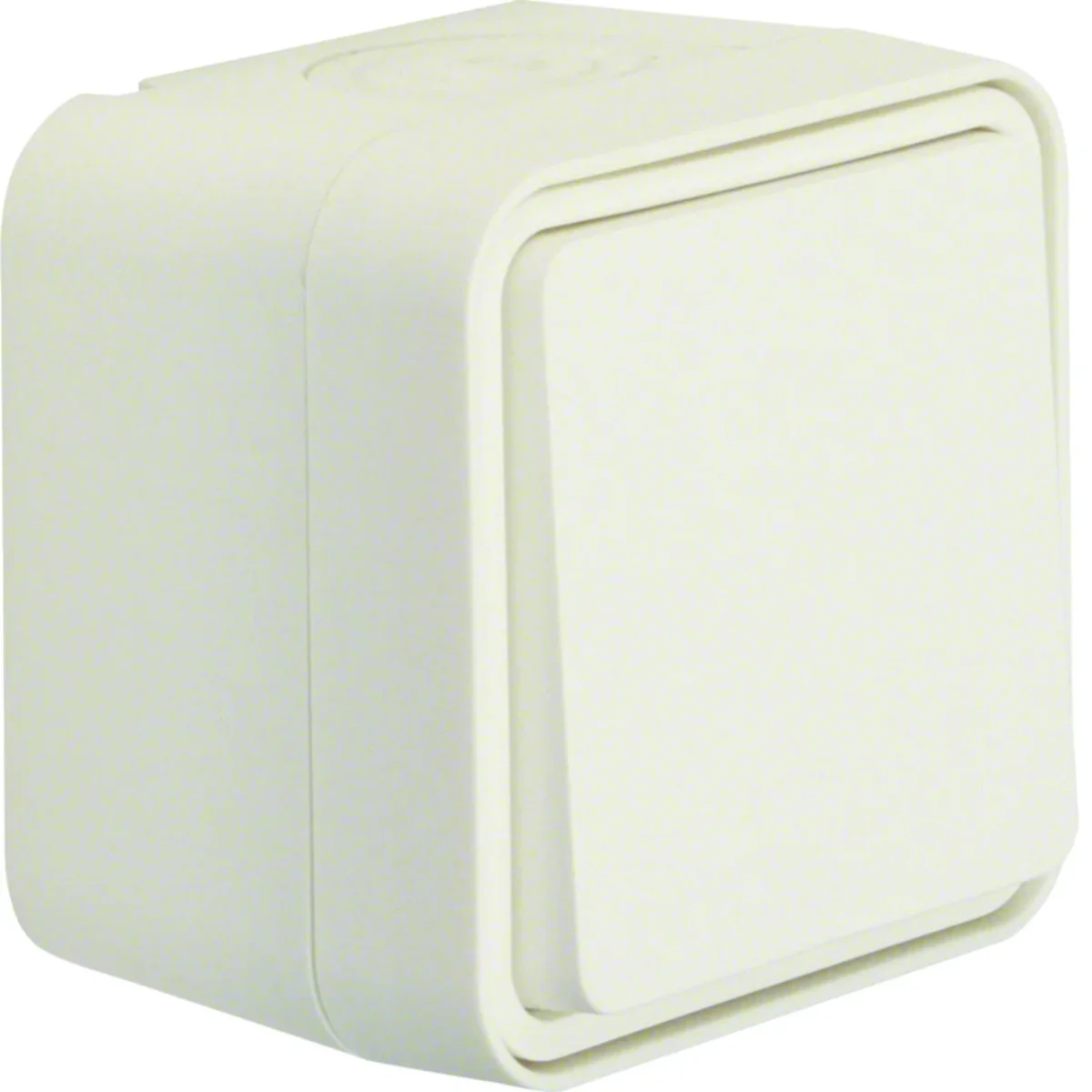

W.1 Universal connector IP55 complete white

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 61.5

Number of keys: 1

Color: White

See full description

Price:

19,78 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Universal stair switch from the W.1 series, from the manufacturer Berker. The product part number is 30763502.

FEATURES

Complete.
Surface mounted .
Quick Connect.
With Wago 2-pole connection terminal for wiring.
With 2 clips for Wago 2-pole connection terminal on the bottom of the housing .
With plug-in terminals.
With 2-cable entry and cable or pipe entry.
With full-surface seal on the back of the housing for cable entry. from the rear side and adjustment to plaster.
Quick release pins made of ZAMAK.
Lock cover springs made of stainless steel, latch pins made of ZnAl alloy.

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories that stands out innovative look. The stair switch are characterized by the features of this unique series.

Technical data

Depth [mm]

61.5
Color

White
Material

Plastic
Rated voltage [V]

230
Type

Stairs Single
Level of security

IP55
Type

Surface-mounted
Surface finish

matte
Terminal type

Threadless
Exact material

Thermoplastic

Number of keys

1
Shape

Square
Installation

Surface-mounted
Rated current [A]

10
Family

W.1
Width [mm]

76
Height [mm]

76
Backlight

NO
For the frame system

NO
PKWIU

27.33.11.0

Other technical data

Wiring system

Two-way switch
Number of rockers

1
Type of fastening

Screw mounting
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

9010
Suitable for degree of protection (IP)

IP55
Rated current

10 A
Feedback-signal contact

No
Device width

76 mm
Device depth

61.5 mm
Min. depth of built-in installation box

0 mm

Assembly arrangement

Basic element with complete housing
Mounting method

Surface mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Label space/information surface

No
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device height

76 mm
Built-in depth

0 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,125	0,140	5,624	199,961
Width (m)	0,076	0,085	0,300	0,800
Length (m)	0,062	0,070	0,225	1,050
Depth (m)	0,076	0,080	0,400	1,200
