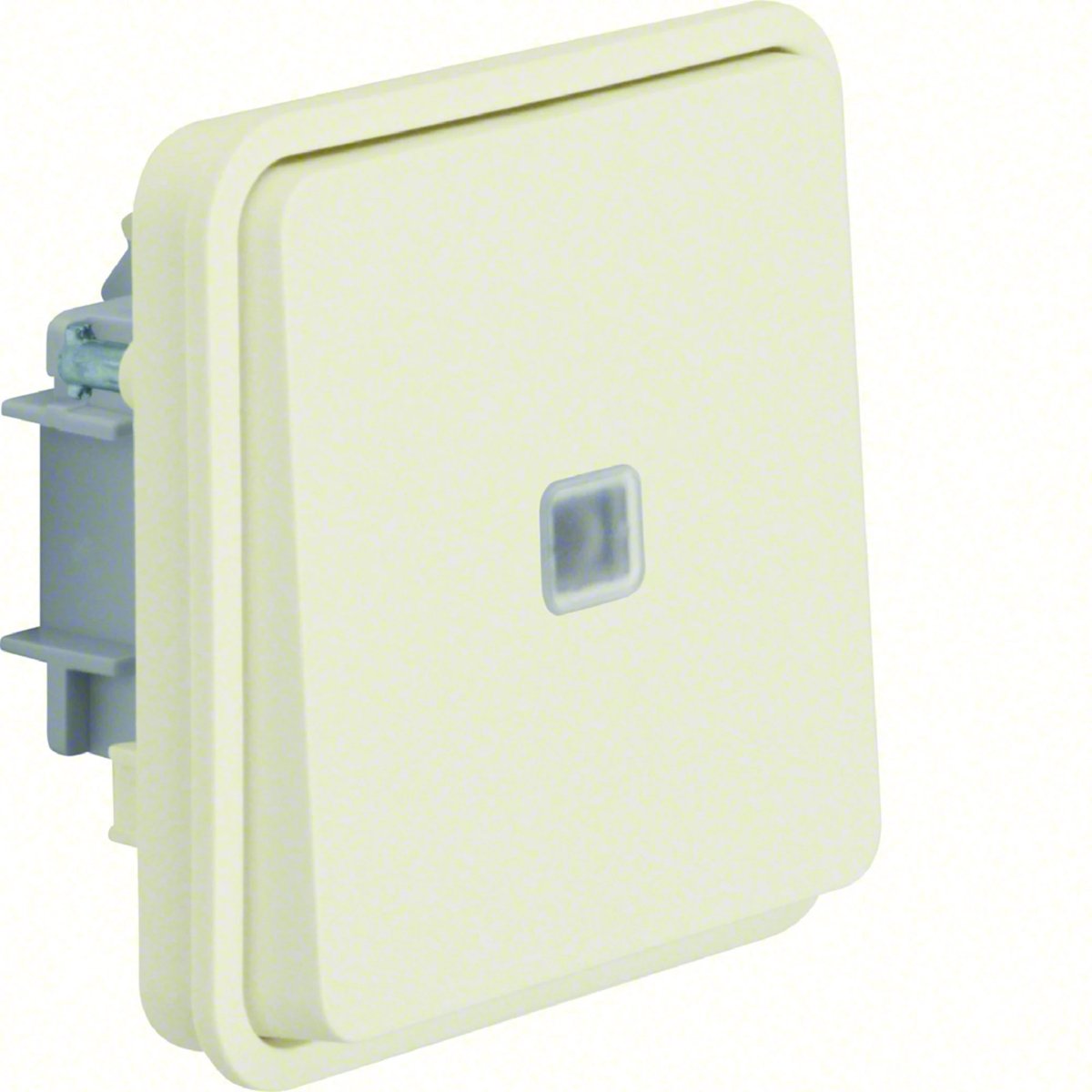

W.1 Universal button switch with backlight IP55 white 50463522

local index:
MMZ013BERK
Catalog No:
50463522
EAN code:
4011334390367
Manufacturer: BERKER
Depth [mm]: 42
Number of keys: 1
Color: White
Price:
36,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Universal push-button switch with backlight,  W.1 series, from Berker. The product catalog number is 50463522.



FEATURES

  • Mounting: for screw connection.
  • Connection:
    • With N-clamp.
    • With plug-in terminals.
  • With 230 V blue LED.
  • For connection with backlight and control connection with backlight.
  • Quick release pins made of ZAMAK.
  • Mechanisms achieve IP55 protection only when assembled with  ;surface-mounted housing or flush-mounted frame.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. Operating switch characterizes the features of this series.

Technical data

  • Depth [mm]
    42
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP55
  • Type
    Recessed Surface-mounted
  • Height [mm]
    71
  • Accurate color
    Snow white
  • Variant
    Ordinary
  • Exact material
    Thermoplastic
  • Backlight color
    Blue
  • Number of keys
    1
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    71
  • Version
    Confident
  • Surface finish
    matte
  • Backlight
    Yes
  • For the frame system
    Yes
  • Backlight type
    LED
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with adapter plate
  • Method of operation
    Rocker
  • Number of modules (module system)
    0
  • Rated current
    10 A
  • With signal lamp
    Yes
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Imprint
    None
  • Device width
    71 mm
  • Device depth
    43 mm
  • Model
    Single push button
  • Number of rockers
    1
  • Nominal voltage
    250 V
  • With lighting
    No
  • Feedback-signal contact
    No
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    71 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Karton
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,060 0,077
Width (m) 0,071 0,081
Length (m) 0,042 0,070
Depth (m) 0,071 0,081
