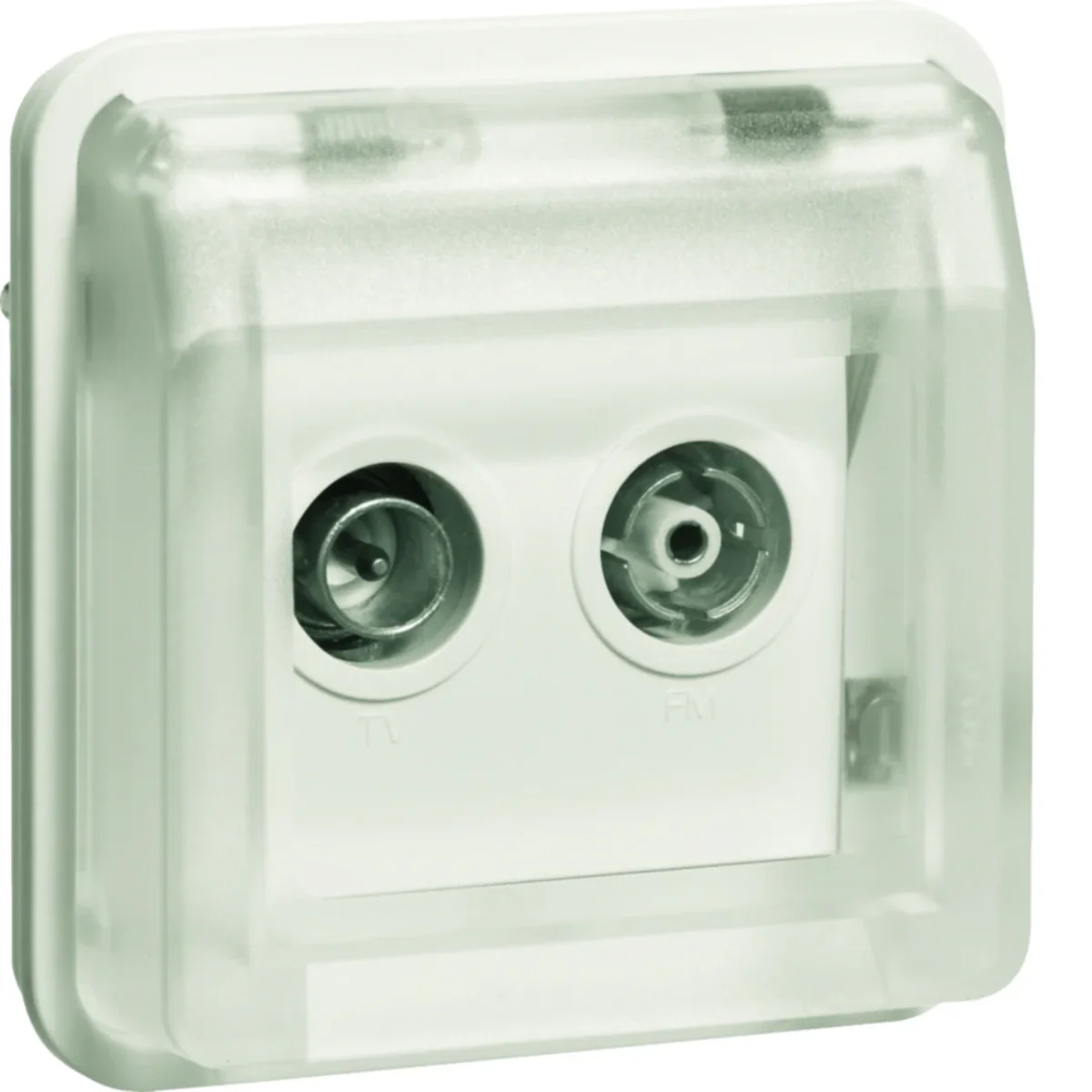

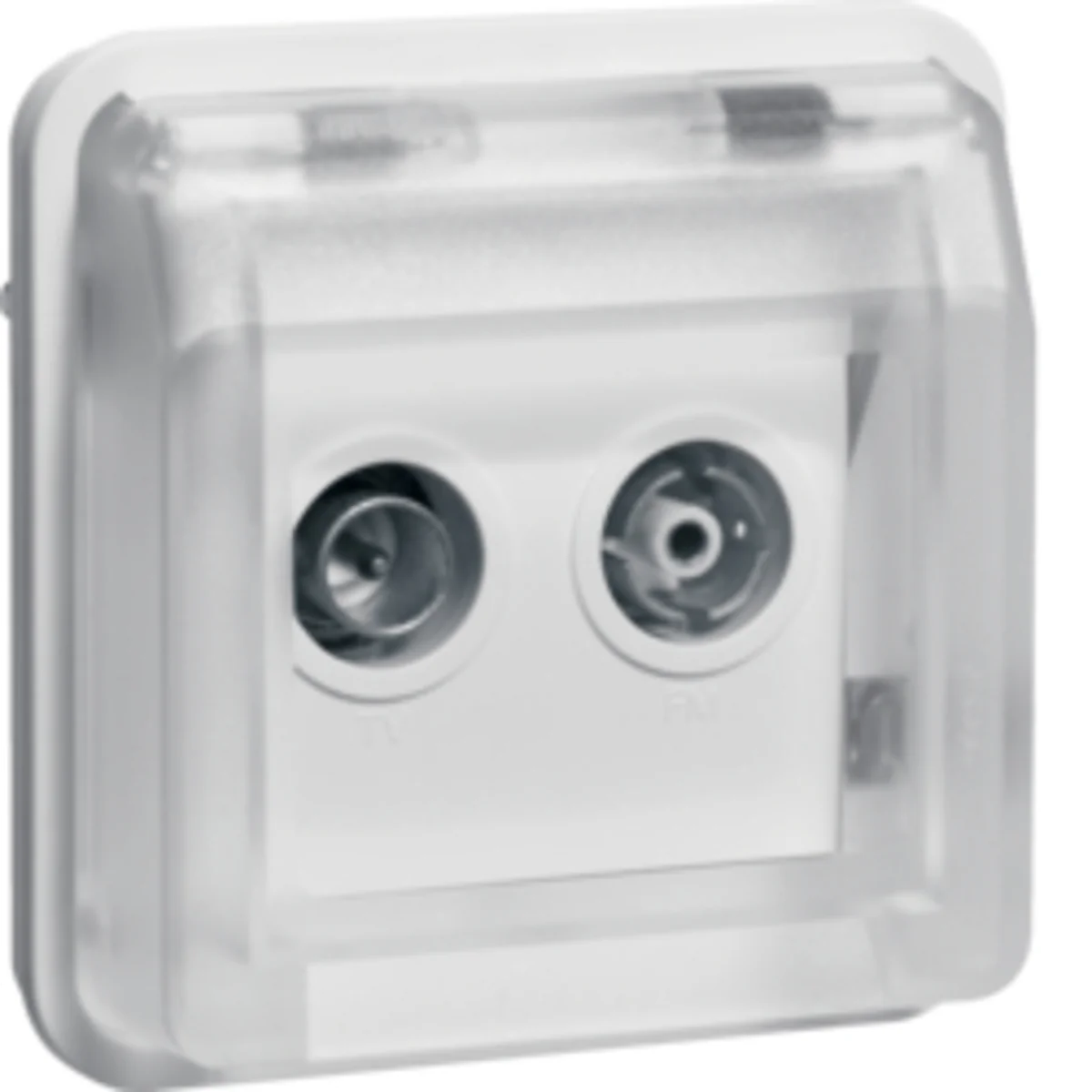

W.1 Terminal RTV antenna socket module with cover IP55 white 12033542
local index:
MEA001BERK
Catalog No:
12033542
EAN code:
4011334440871
Price:
40,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Module terminal RTV antenna socket with a cover, from the BerkerW.1- series, distinguished by a perfect combination of functionality and aesthetics as well as water resistance.
Features:
- Impedance 75 Ω,
- Operating temperature -40 ... +60 °C,
- Springs stainless steel latch cover, ZnAl alloy latch pins,
- Hinged lid, ZAMAK quick release pins,
- For individual digital DVB-T installations, < li> For terrestrial reception,
- One common input,
- Screw terminals,
- Matt white.
Technical data
-
Number of sockets2
-
ColorWhite
-
MaterialPlastic
-
OverprintNO
-
TypeAntenna
-
Level of securityIP55
-
VersionFinal
-
Accurate colorSnow white
-
Terminal typeThreaded
-
F-type inputNO
-
Lid colorTransparent
-
Wave impedance [Ω]75
-
ShapeSquare
-
InstallationRecessed Surface-mounted
-
CoverYes
-
FamilyW.1
-
TypeRecessed Surface-mounted
-
Surface finishmatte
-
BacklightNO
-
VariantR TV
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
ModelMultimedia end box
-
Tap loss at 860 MHz5 dB
-
Suitable for cable modemYes
-
Frequency4 ... 862 MHz
-
ColourWhite
-
Surface protectionUntreated
-
MaterialPlastic
-
Halogen freeYes
-
CoverFull cover plate
-
Number of outlets2
-
Suitable for remote power supplyYes
-
Type of fasteningMounting with screw
-
RAL-number (similar)9010
-
Surface finishingMatt
-
Material qualityThermoplastic
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,105 | 0,120 | 4,904 | 176,921 |
| Width (m) | 0,070 | 0,085 | 0,300 | 0,800 |
| Length (m) | 0,045 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,070 | 0,085 | 0,400 | 1,200 |
