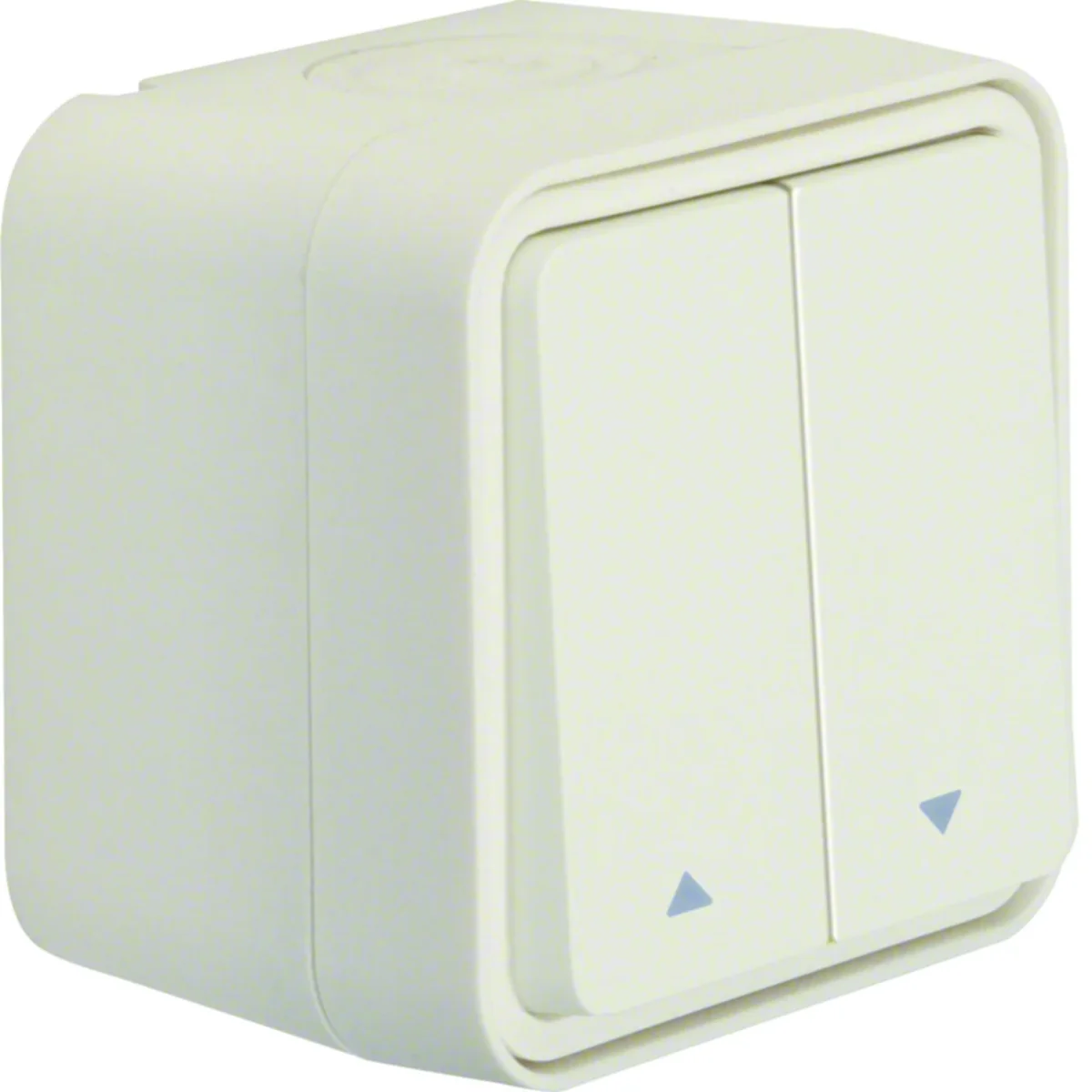

W.1 Shutter switch with "arrow" symbols, complete IP55 white 30753522

Index local:
MNO001BERK
Numéro de catalogue:
30753522
Code EAN:
4011334391203
Producteur: BERKER
Depth [mm]: 62
Number of keys: 2
Color: White
Prix:
163,55 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 10 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Louvre connector from the W.1 series, from the manufacturer Berker. The product part number is 30753522.



FEATURES

  • Complete.
  • Surface mounted .
  • With printed "arrow" symbols.
  • With mechanical and electrical interlock.
  • For screw connection.
  • With connection nipple Wago 2-pole for wiring.
  • With 2 clips for Wago 2-pole connection terminal on the underside of the housing.
  • With plug-in terminals.
  • Z  for 2 cables and entry of a conduit or pipe.
  • With a full-surface seal on the rear side of the housing enabling the insertion of the cable from the rear side and adjustment to the plaster.
  • Quick release pins made of zMAK.
  • Stainless stainless steel latching cover springs, ZnAl alloy latch pins.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative design. The shutter connector characterizes the features of this unique series.

Données techniques

  • Depth [mm]
    62
  • Color
    White
  • Material
    Plastic
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    76
  • Version
    Single
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    Thermoplastic
  • PKWIU
    27.33.11.0
  • Number of keys
    2
  • Shape
    Square
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Height [mm]
    76
  • Accurate color
    Snow white
  • Blockade
    Mechanical electric
  • Variant
    Two-position
  • Seal
    Yes

Autres données techniques

  • For venetian blinds
    Yes
  • For awnings
    No
  • Model
    1-pole switch
  • With electrical locking
    Yes
  • Electronic controllable
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Connection type
    Push-in clamp
  • RAL-number (similar)
    9010
  • Label space/information surface
    No
  • Rated current
    10 A
  • Device width
    76 mm
  • Device depth
    61.55 mm
  • Built-in height
    78 mm
  • Min. depth of built-in installation box
    0 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • For roller blinds
    Yes
  • Assembly arrangement
    Basic element with complete housing
  • Method of operation
    Rocker
  • Mechanical controllable
    Yes
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Type of fastening
    Mounting with screw
  • Colour
    White
  • Transparent
    No
  • Suitable for degree of protection (IP)
    IP55
  • Nominal voltage
    250 V
  • Device height
    78 mm
  • Built-in width
    76 mm
  • Built-in depth
    32 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Pakiet Paleta
Quantité 1 pcs. 36 pcs. 1152 pcs.
poids (kg) 0,150 5,840 211,880
Largeur (m) 0,080 0,300 0,800
Longueur (m) 0,070 0,220 1,050
Profondeur (m) 0,080 0,400 1,200
