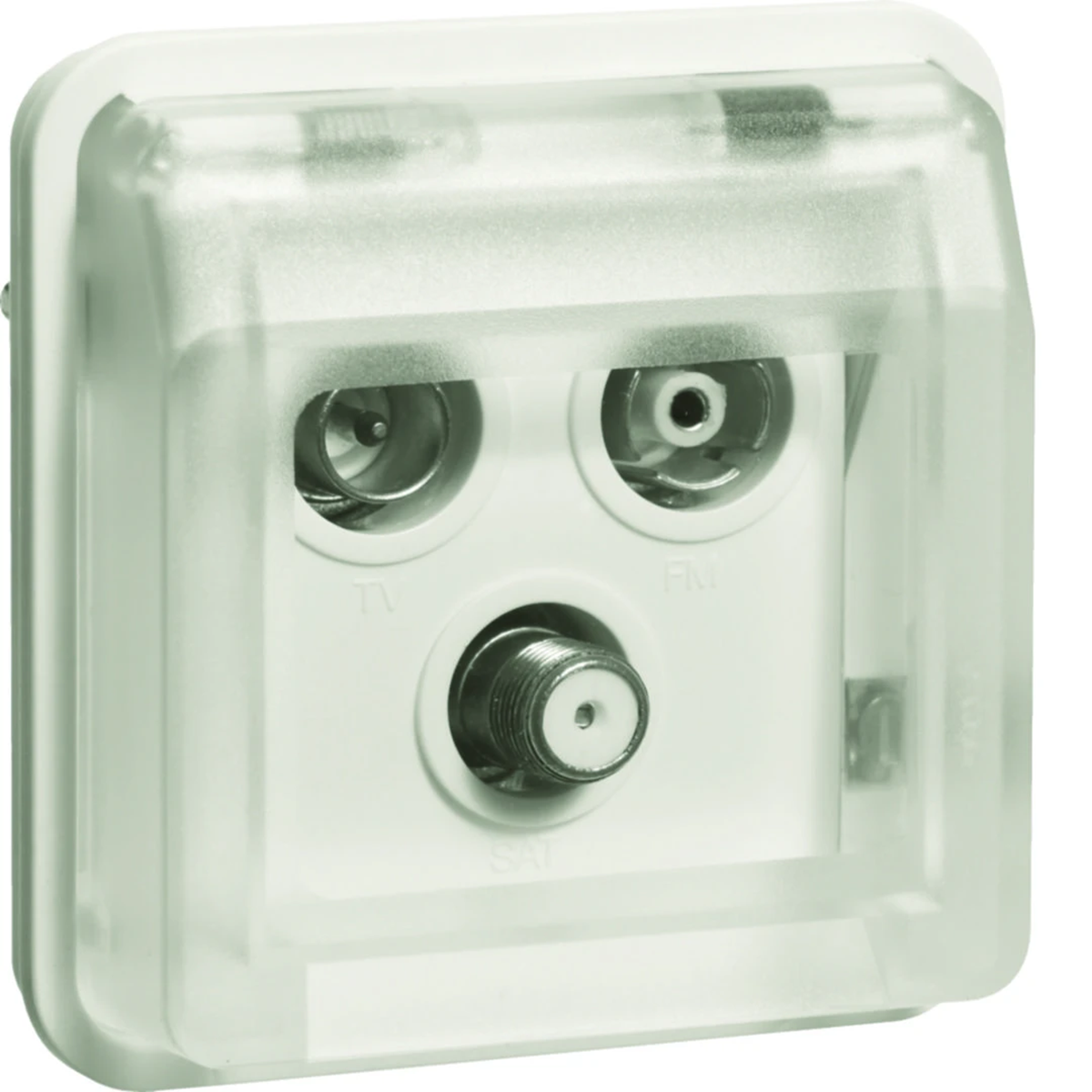

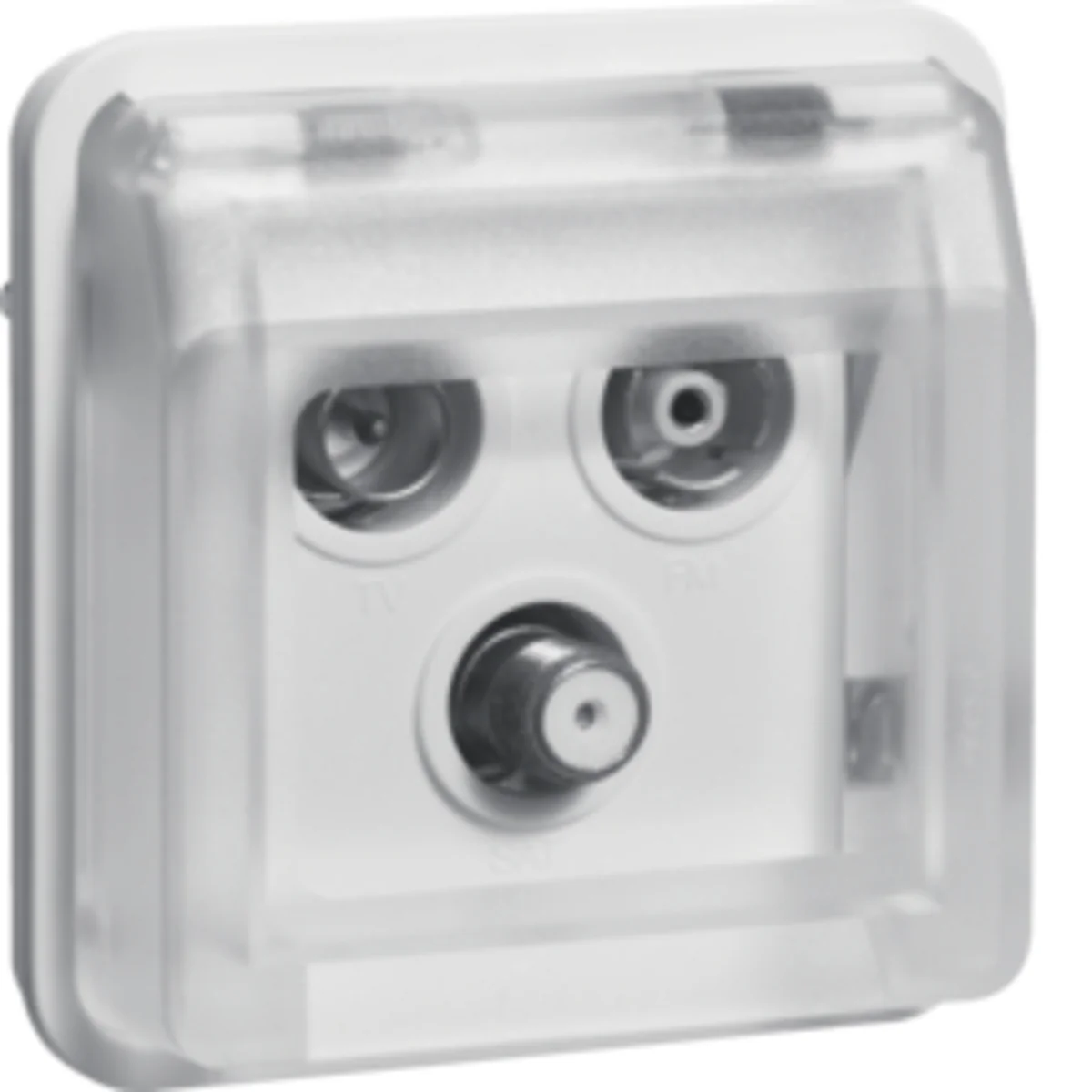

W.1 RTV-SAT terminal socket module with cover IP55 white 12033562

local index:
MEA005BERK
Catalog No:
12033562
EAN code:
4011334440918
Manufacturer: BERKER
Number of sockets: 3
Wave impedance [Ω]: 75
Color: White
Price:
42,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Module final RTV-SAT antenna socket with a cover, from the BerkerW.1- series, distinguished by a perfect combination of functionality and aesthetics and waterproof.

Features:

  • Impedance 75 Ω,
  • Operating temperature -40 ... +60 °C,
  • Operating frequency 4 ... 2400 MHz,
  • Stainless steel latch springs, ZnAl alloy latch pins,
  • Hinged lid, ZAMAK quick release pins,
  • For individual digital DVB-T installations,
  • For terrestrial and satellite reception
  • With 2-wire entry and cable or pipe entry,
  • Screw terminals,
  • In matt white.

Technical data

  • Number of sockets
    3
  • Color
    White
  • Material
    Plastic
  • Overprint
    NO
  • Type
    Antenna
  • Level of security
    IP55
  • Type
    Recessed Surface-mounted
  • Frequency Range [MHz]
    4-2400
  • Accurate color
    Snow white
  • Terminal type
    Threaded
  • F-type input
    NO
  • Lid color
    Transparent
  • Wave impedance [Ω]
    75
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Cover
    Yes
  • Family
    W.1
  • Attenuation [dB]
    At 2150MHz: 2 At 860MHz: 5
  • Version
    Final
  • Surface finish
    matte
  • Backlight
    NO
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Multimedia end box
  • Cover
    Full cover plate
  • Tap loss at 2150 MHz
    2 dB
  • Suitable for cable modem
    Yes
  • Frequency
    4 ... 2400 MHz
  • Colour
    White
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    Yes
  • Mounting method
    Surface mounted
  • Tap loss at 860 MHz
    5 dB
  • Number of outlets
    2
  • Suitable for remote power supply
    Yes
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    9010
  • Surface finishing
    Matt
  • Material quality
    Thermoplastic

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 36 pcs. 1152 pcs. 1 pcs.
Weight (kg) 0,125 5,084 182,681 0,110
Width (m) 0,080 0,300 0,800 0,070
Length (m) 0,070 0,225 1,050 0,045
Depth (m) 0,085 0,400 1,200 0,070
