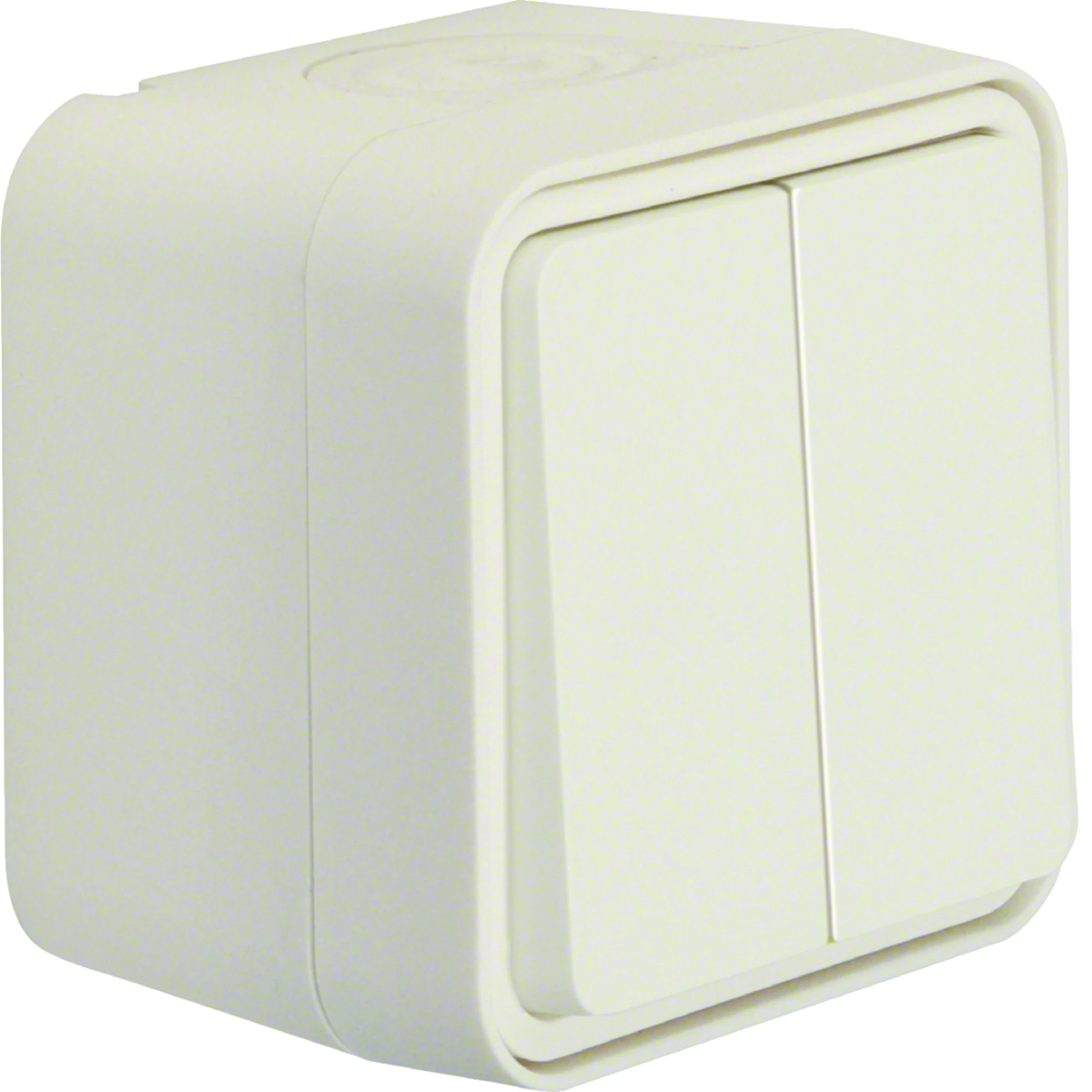

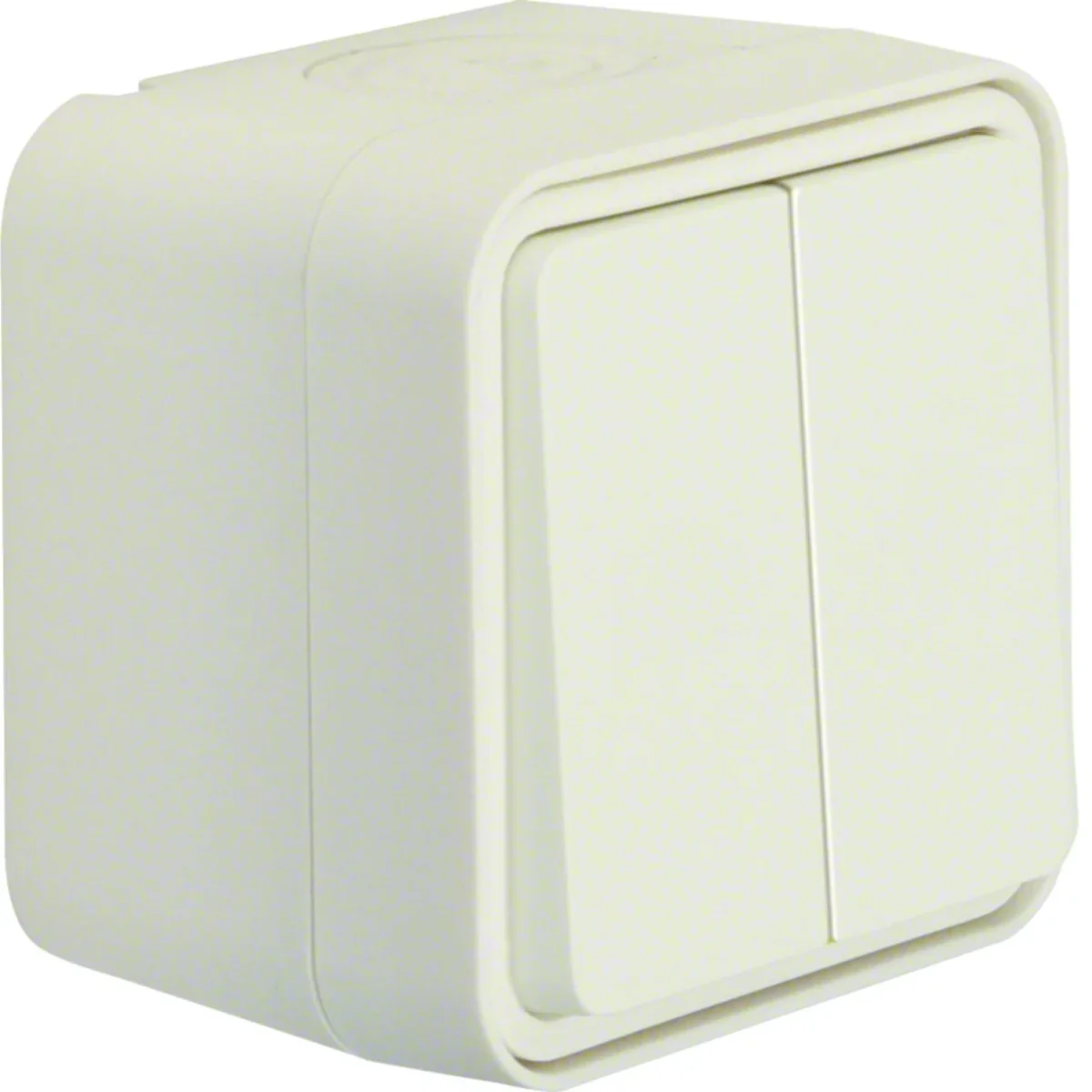

W.1 Push-button switch, separate input terminals, complete IP55 white 50753512

local index:
MNZ003BERK
Catalog No:
50753512
EAN code:
4011334391180
Manufacturer: BERKER
Number of keys: 2
Color: White
Shape: Square
Price:
31,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Button candlestick switch from the W.1 series, from the manufacturer Berker. The product part number is 50753512.



FEATURES

  • Complete.
  • Surface mounted .
  • Separate input terminals.
  • For screw connection.
  • With Wago 2-pole wiring connector.
  • Z 2
  • With plug-in terminals.
  • With 2-wire entry and cable or pipe entry.
  • With an all-surface seal on the rear side of the housing for cable entry from the rear side and fitting to the plaster.
  • Quick release pins made of ZAMAK.
  • Stainless stainless steel springs for the latch cover , latch pins made of ZnAl alloy.



SERIES DESCRIPTION

Berker W.1 is series of waterproof electrical installation accessories, which is distinguished by its innovative appearance.

Technical data

  • Number of keys
    2
  • Shape
    Square
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP55
  • Version
    Confident
  • Surface finish
    matte
  • Backlight
    NO
  • Variant
    Ordinary
  • Exact material
    Thermoplastic
  • PKWIU
    27.33.11.0
  • Color
    White
  • Material
    Plastic
  • Rated current [A]
    10
  • Family
    W.1
  • Type
    Surface-mounted
  • Height [mm]
    76
  • Accurate color
    Snow white
  • Terminal type
    Threadless
  • For the frame system
    NO
  • Seal
    Yes

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Number of modules (module system)
    0
  • Rated current
    10 A
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Imprint
    None
  • Device width
    55 mm
  • Device depth
    41 mm
  • Model
    Series push button
  • Nominal voltage
    250 V
  • With signal lamp
    No
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    55 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 333 pcs.
Weight (kg) 0,135 0,150 72,950
Width (m) 0,076 0,080 0,800
Length (m) 0,062 0,075 1,050
Depth (m) 0,076 0,085 1,200
