W.1 Push-button switch, separate input terminals, complete IP55 grey 50753515

Name: W.1 Push-button switch, separate input terminals, complete IP55 grey
Brand: BERKER
SKU: MNZ004BERK
Price: 144.76 PLN
Availability: BackOrder

Index local:

MNZ004BERK

Numéro de catalogue:

50753515

Code EAN:

4011334391173

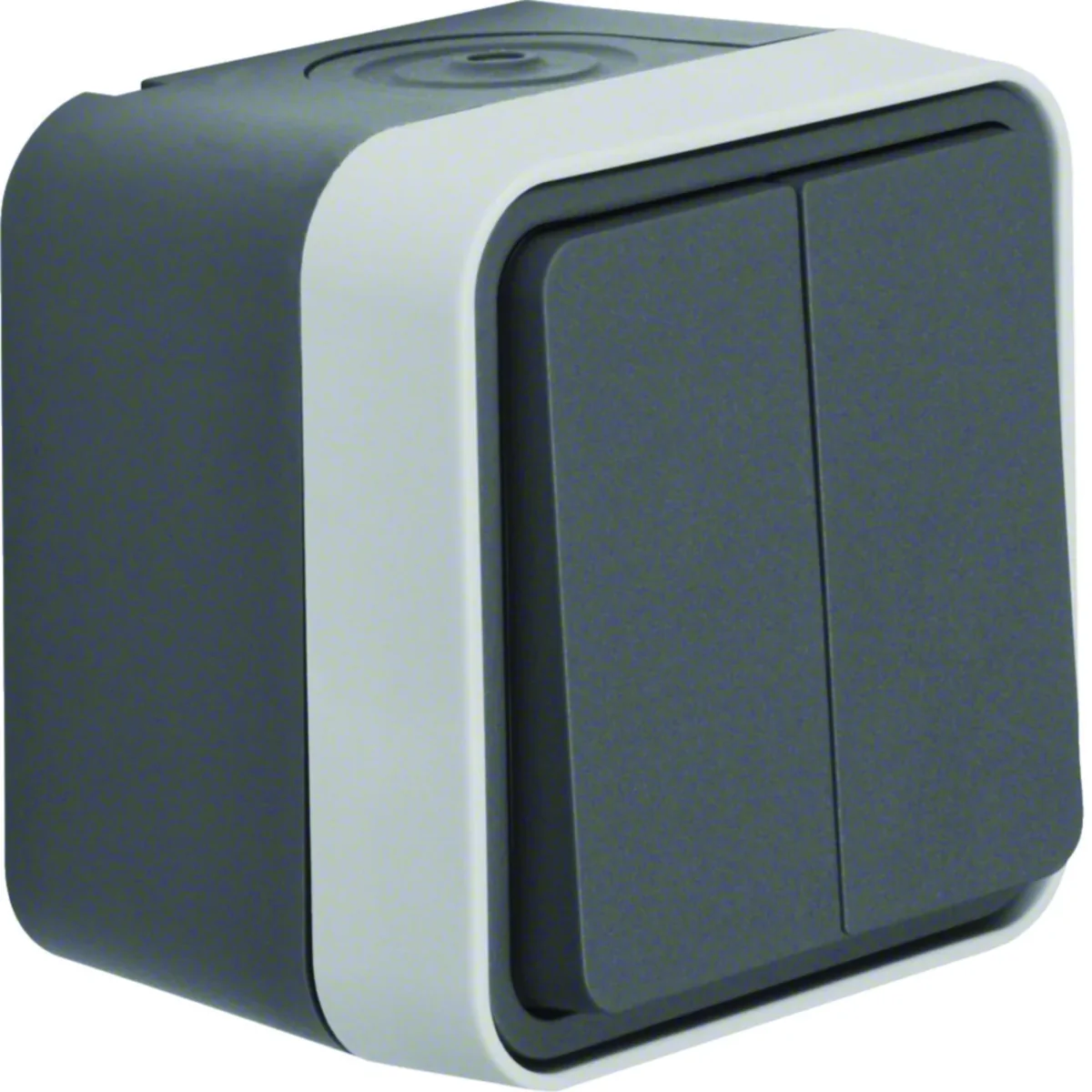

W.1 Push-button switch, separate input terminals, complete IP55 grey

Cliquer sur la photo pour l'agrandir

Producteur: BERKER

Number of keys: 2

Color: Gray

Shape: Square

Voir la description complète

Prix:

144,76 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 10 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Button candlestick switch from the W.1 series, from the manufacturer Berker. The product part number is 50753515.

FEATURES

Complete.
Surface mounted .
Separate input terminals.
For screw connection.
With Wago 2-pole wiring connector.
Z 2
With plug-in terminals.
With 2-wire entry and cable or pipe entry.
With an all-surface seal on the rear side of the housing for cable entry from the rear side and fitting to the plaster.
Quick release pins made of ZAMAK.
Stainless stainless steel springs for the latch cover , latch pins made of ZnAl alloy.

SERIES DESCRIPTION

Berker W.1 is series of waterproof electrical installation accessories, which is distinguished by its innovative appearance.

Données techniques

Number of keys

2
Shape

Square
Rated voltage [V]

230
Type

Short
Level of security

IP55
Version

Confident
Surface finish

matte
Backlight

NO
Variant

Ordinary
Exact material

Thermoplastic
PKWIU

27.33.11.0

Color

Gray
Material

Plastic
Rated current [A]

10
Family

W.1
Type

Surface-mounted
Height [mm]

76
Accurate color

dark grey
Terminal type

Threadless
For the frame system

NO
Seal

Yes

Autres données techniques

Assembly arrangement

Basic element with complete housing
Method of operation

Push button
Number of contacts as normally closed contact

0
Number of rockers

2
Number of poles

2
Rated current

10 A
With light source

No
Feedback-signal contact

No
Mounting method

Surface mounted
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

Grey
Transparent

No
Imprint

None
Impact strength

IK05
Device height

55.9 mm
Min. depth of built-in installation box

0 mm
Compatible with Google Assistant

No
IFTTT support available

No

Model

Series push button
Operating principle

Electromechanical
Number of contacts as normally open contact

2
Number of modules (module system)

0
Nominal voltage

250 V
With lighting

No
With signal lamp

No
Connection type

Push-in clamp
Type of fastening

Screw mounting
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Matt
RAL-number (similar)

7011
Label space/information surface

No
Suitable for degree of protection (IP)

IP55
Device width

55.9 mm
Device depth

32.3 mm
Compatible with Apple HomeKit

No
Compatible with Amazon Alexa

No

Détails du fabricant

Producteur

Berker GmbH & Co. KG.
Adresse

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Pakiet	Paleta
Quantité	10 pcs.	30 pcs.	960 pcs.
poids (kg)	1,410	4,590	171,880
Largeur (m)	0,150	0,300	0,800
Longueur (m)	0,080	0,220	1,050
Profondeur (m)	0,320	0,400	1,200
