W.1 Push button switch, common input terminals IP55, white 50423512

Name: W.1 Push button switch, common input terminals IP55, white
Brand: BERKER
SKU: MMZ007BERK
Price: 24.61 PLN

Índice local:

MMZ007BERK

Número de catálogo:

50423512

Código EAN:

4011334390404

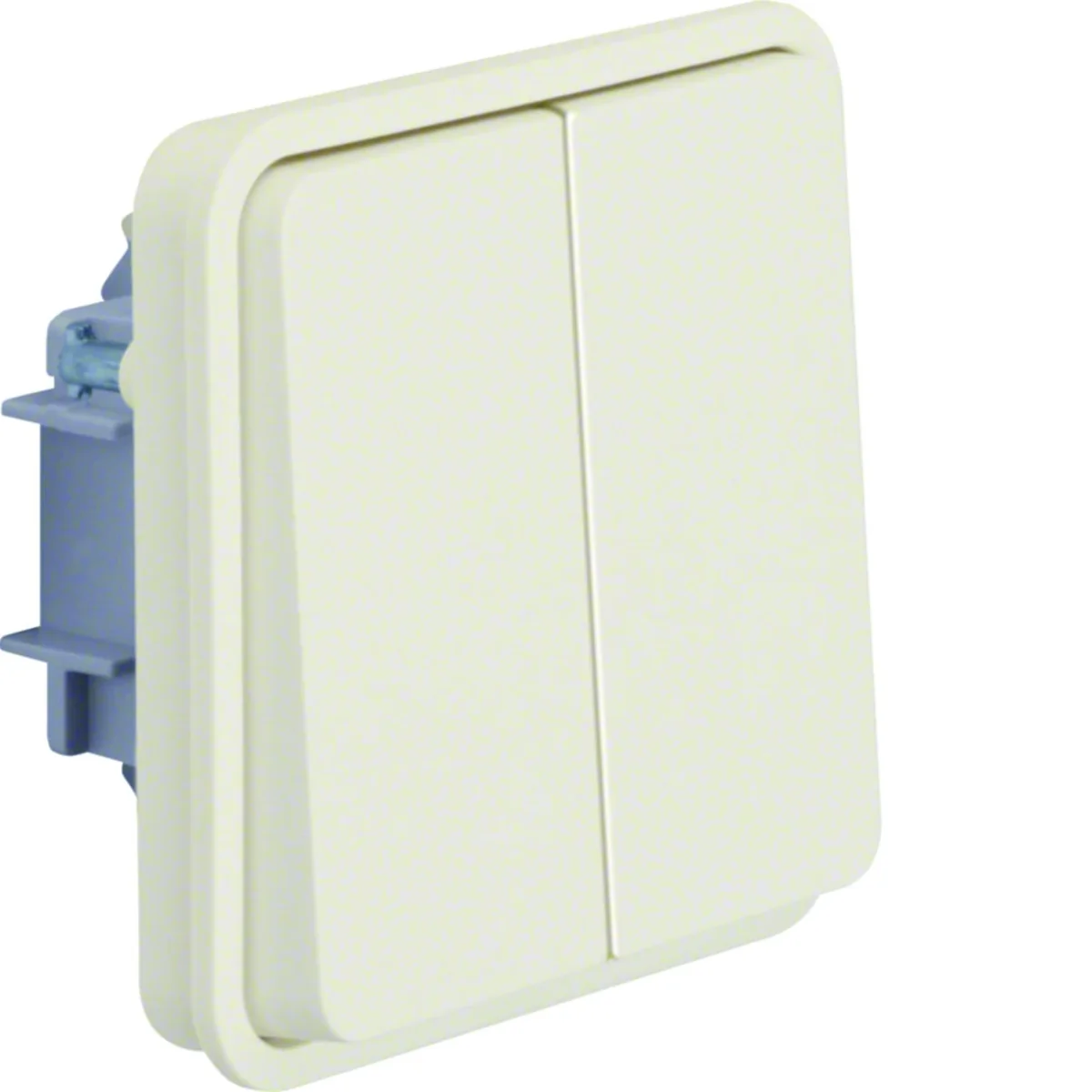

W.1 Push button switch, common input terminals IP55, white

Haga clic en la foto para ampliar

Fabricante: BERKER

Depth [mm]: 42

Number of keys: 2

Color: White

Ver descripción completa

Precio:

24,61 €

gross / uds.

(IVA incluido 23%)

Entrega en 3h

hasta 10 semanas (días laborables)

Recogida en 1h

Cantidad uds.

(múltiple:

)

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel

Descripción del producto

Double push-button switch from the W.1 series, from the manufacturer Berker. The product catalog number is 50423512.

FEATURES

For screw connection.
Common input terminals.
Quick release pins made of ZAMAK.
Mechanisms achieve IP55 protection only in the case of mounting with surface-mounted housing or frame for flush-mounting.

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. Operating switch characterizes the features of this series.

Datos técnicos

Depth [mm]

42
Color

White
Material

Plastic
Rated voltage [V]

230
Type

Short
Level of security

IP55
Type

Recessed Surface-mounted
Height [mm]

71
Accurate color

Snow white
Variant

Ordinary
Exact material

Thermoplastic

Number of keys

2
Shape

Square
Installation

Recessed Surface-mounted
Rated current [A]

10
Family

W.1
Width [mm]

71
Version

Confident
Surface finish

matte
Backlight

NO
For the frame system

Yes
PKWIU

27.33.11.0

Otros datos técnicos

Assembly arrangement

Basic element with adapter plate
Method of operation

Rocker
Nominal voltage

250 V
With lighting

No
Feedback-signal contact

No
Type of fastening

Screw mounting
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Matt
RAL-number (similar)

9010
Label space/information surface

No
Suitable for degree of protection (IP)

IP55
Device height

71 mm
Min. depth of built-in installation box

0 mm

Model

Series push button
Number of modules (module system)

0
Rated current

10 A
With signal lamp

No
Mounting method

Surface mounted
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

White
Transparent

No
Imprint

None
Device width

71 mm
Device depth

42 mm
