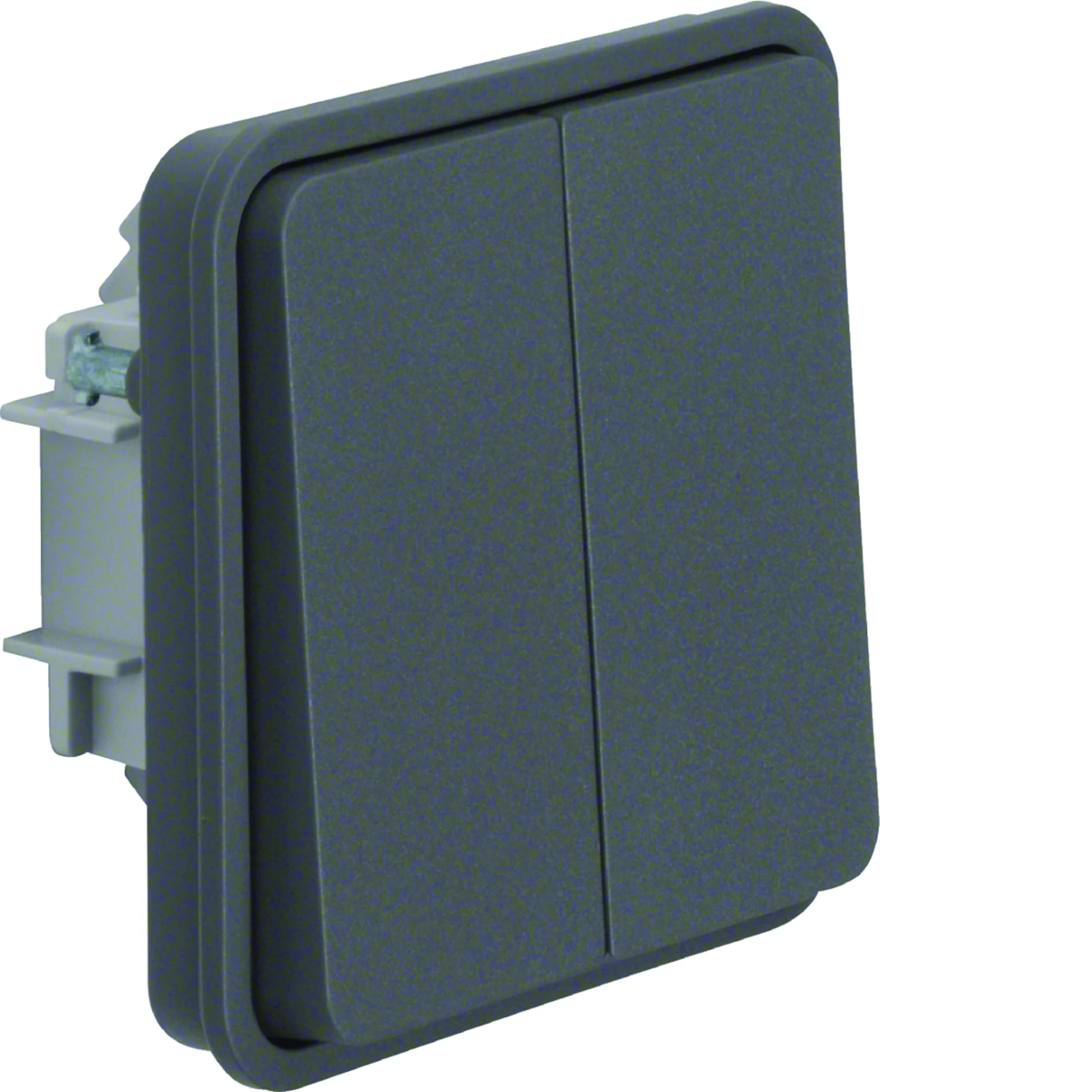

W.1 Push button switch, common input terminals IP55 grey 50423515

local index:
MMZ008BERK
Catalog No:
50423515
EAN code:
4011334390398
Manufacturer: BERKER
Depth [mm]: 42
Number of keys: 2
Color: Gray
Price:
24,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double push-button switch from the W.1 series, from the manufacturer Berker. The product catalog number is 50423515.



FEATURES

  • For screw connection.
  • < li>With pluggable terminals.
  • Common input terminals.
  • Quick release pins made of ZAMAK.
  • Mechanisms achieve IP55 protection only in the case of mounting with surface-mounted housing or frame for flush-mounting.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. Operating switch characterizes the features of this series.

Technical data

  • Depth [mm]
    42
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP55
  • Type
    Recessed Surface-mounted
  • Height [mm]
    71
  • Accurate color
    dark grey
  • Variant
    Ordinary
  • Exact material
    Thermoplastic
  • Number of keys
    2
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    71
  • Version
    Confident
  • Surface finish
    matte
  • Backlight
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with adapter plate
  • Method of operation
    Rocker
  • Nominal voltage
    250 V
  • With lighting
    No
  • Feedback-signal contact
    No
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    71 mm
  • Min. depth of built-in installation box
    0 mm
  • Model
    Series push button
  • Number of modules (module system)
    0
  • Rated current
    10 A
  • With signal lamp
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Imprint
    None
  • Device width
    71 mm
  • Device depth
    53 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 40 pcs. 1280 pcs.
Weight (kg) 0,065 0,720 3,320 129,240
Width (m) 0,071 0,175 0,300 0,800
Length (m) 0,042 0,090 0,225 1,050
Depth (m) 0,071 0,230 0,400 1,200
