Manufacturer: BERKER
Depth [mm]: 62
Number of keys: 2
Color: White
Price:
33,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

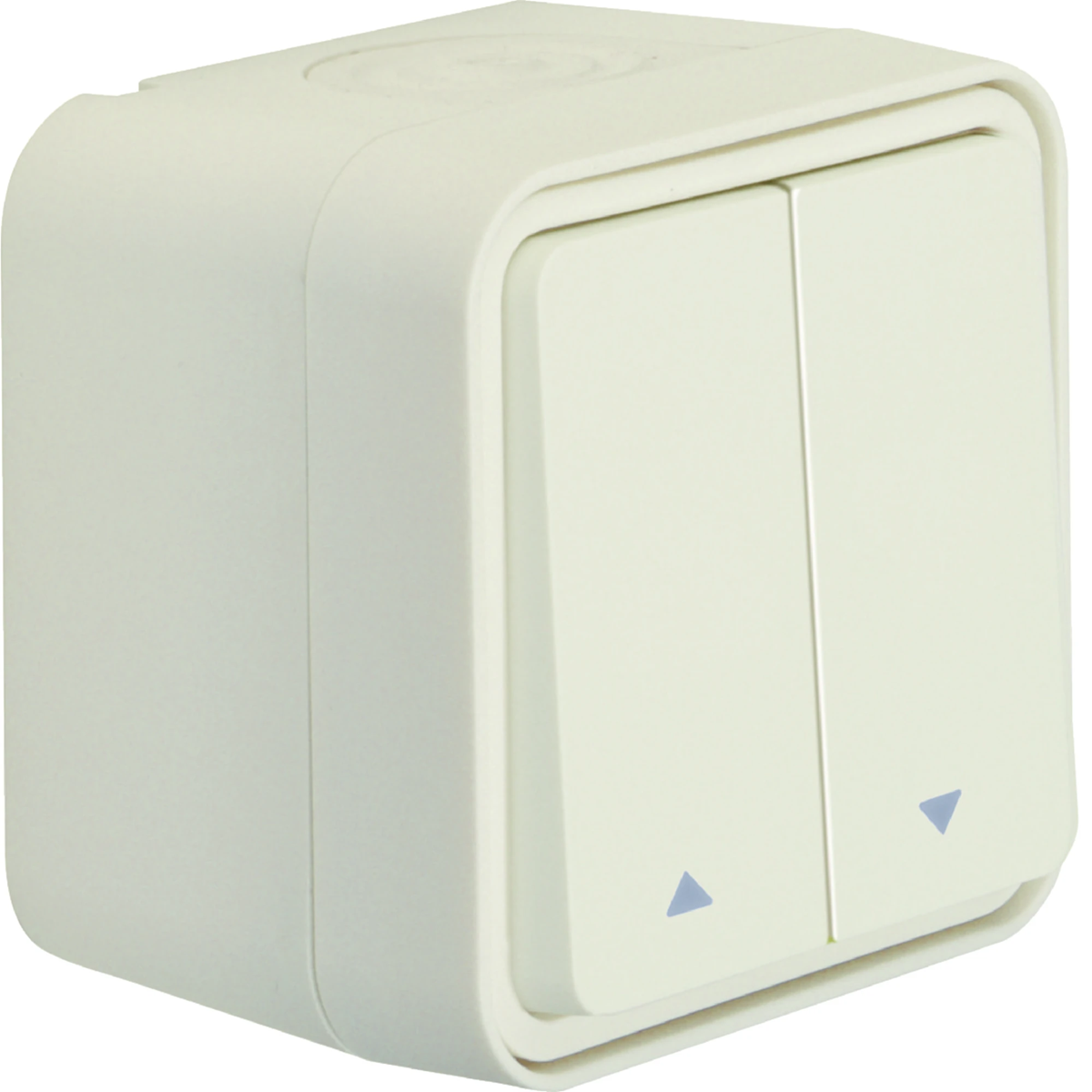

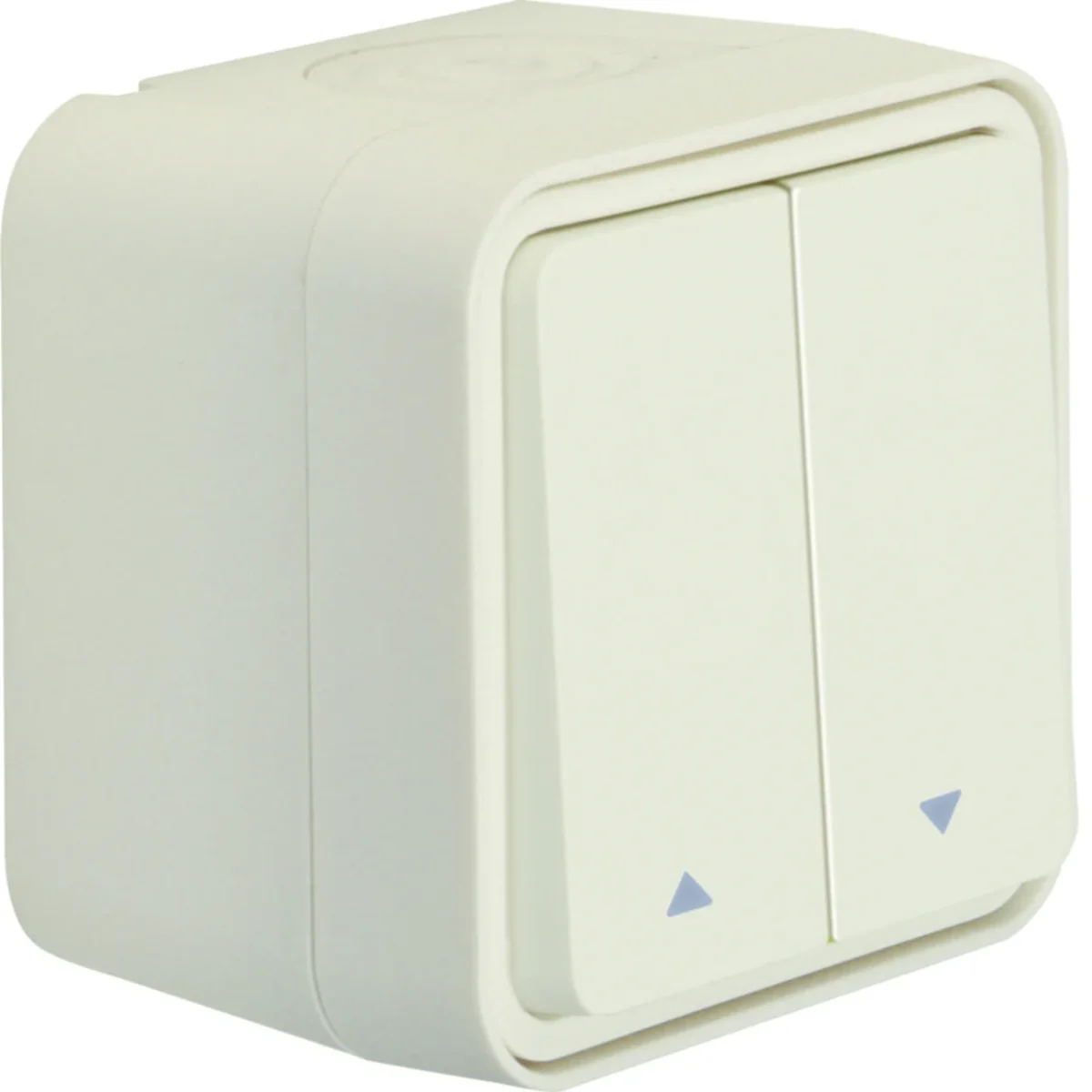

A push-button shutter switch from the W.1 series, from the manufacturer Berker. The product part number is 50753532.



FEATURES

  • Complete.
  • Surface mounted .
  • With mechanical and electrical interlock.
  • For screw connection.
  • With Wago 2-pole wiring connector.
  • Z  ;2 snap fasteners for Wago 2-pole connection terminal on the underside of the housing.
  • With plug-in terminals.
  • With 2-wire entry and cable or pipe entry.
  • With full-surface seal on the back side of the housing enabling cable entry from the back side and adjustment to the plaster.
  • Quick release pins made of ZAMAK.
  • Stainless cover springs stainless steel, latch pins made of ZnAl alloy.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative appearance. The push-button shutter switch characterizes the features of this unique series.

Technical data

  • Depth [mm]
    62
  • Color
    White
  • Material
    Plastic
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    76
  • Version
    Single
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    Thermoplastic
  • PKWIU
    27.33.11.0
  • Number of keys
    2
  • Shape
    Square
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Height [mm]
    76
  • Accurate color
    Snow white
  • Blockade
    Mechanical electric
  • Variant
    Two-position normally open
  • Seal
    Yes

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Method of operation
    Rocker
  • Mechanical controllable
    Yes
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    9010
  • Label space/information surface
    No
  • Rated current
    10 A
  • Number of buttons
    2
  • Min. depth of built-in installation box
    0 mm
  • Model
    1-pole push button
  • Blokada elektryczna i mechaniczna
    Yes
  • Electronic controllable
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Colour
    White
  • Transparent
    No
  • Suitable for degree of protection (IP)
    IP55
  • Nominal voltage
    250 V
  • Number of modules (module system)
    0

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,055 0,145 5,710 207,720
Width (m) 0,075 0,080 0,300 0,800
Length (m) 0,032 0,075 0,225 1,050
Depth (m) 0,075 0,080 0,400 1,200
