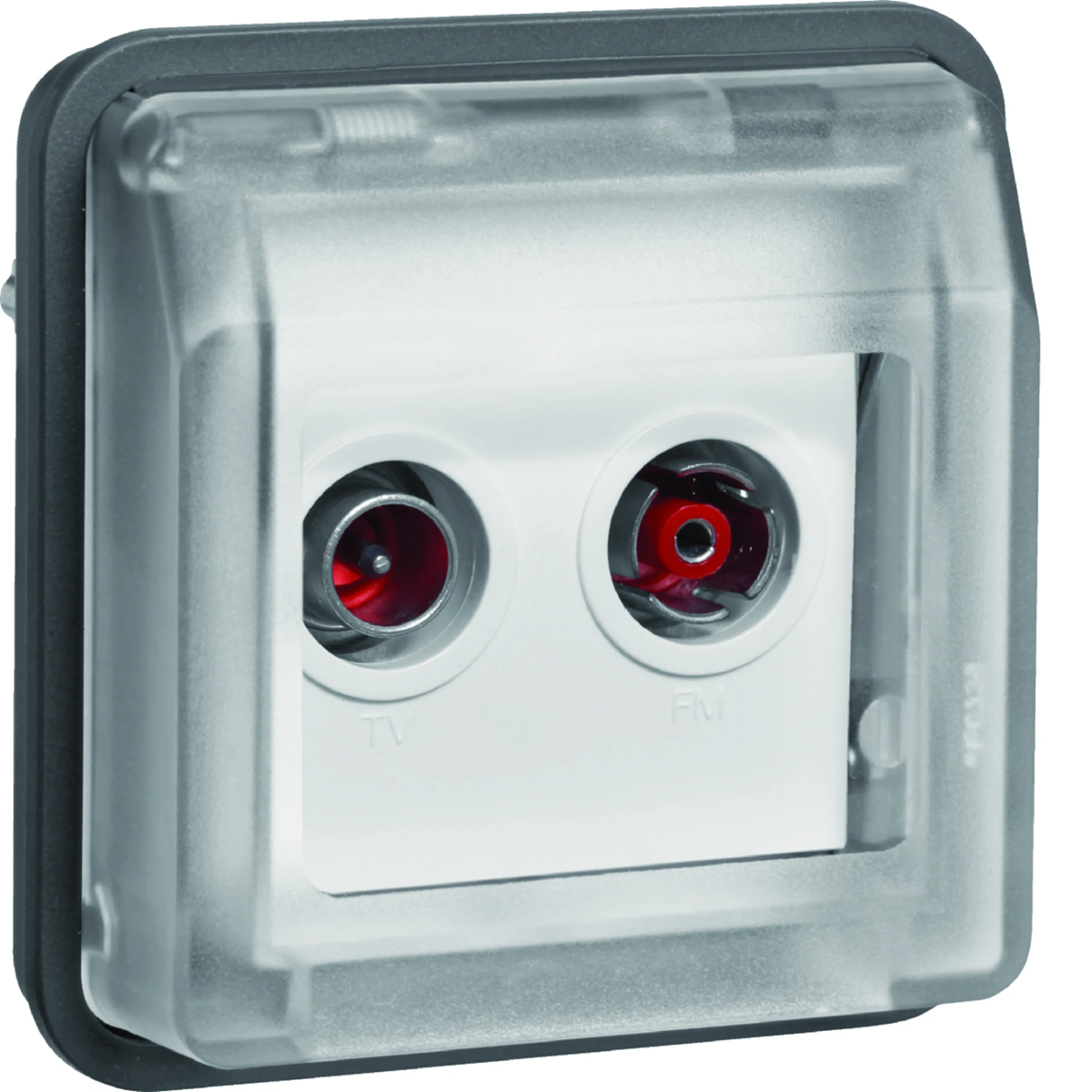

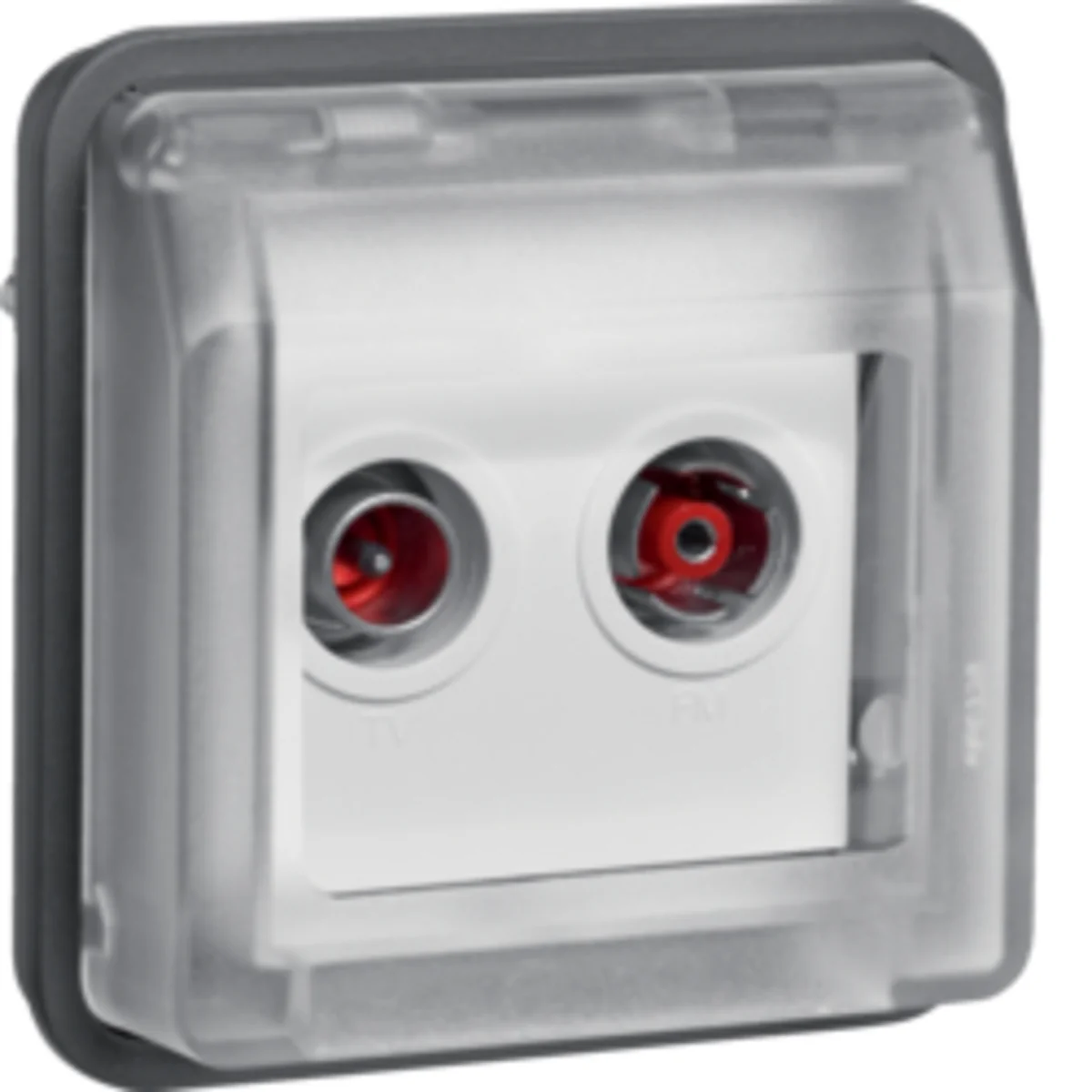

W.1 Pass-through RTV antenna socket module with cover IP55 grey 12033555

local index:
MEA004BERK
Catalog No:
12033555
EAN code:
4011334440888
Manufacturer: BERKER
Number of sockets: 2
Wave impedance [Ω]: 75
Color: Gray
Price:
40,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Module, pass-through RTV antenna socket with a cover, from the BerkerW.1- series, distinguished by a perfect combination of functionality and aesthetics as well as water resistance.

Features:

  • Impedance 75 Ω,
  • Attenuation: 10 dB,
  • Operating temperature -40 ... +60 °C,
  • Snap cover springs made of stainless steel, latch pins made of ZnAl alloy,
  • Hinged cover, ZAMAK quick release pins,
  • For individual digital DVB installations -T,
  • For terrestrial reception,
  • With 2-wire entry and cable or pipe entry,
  • Screw terminals,
  • In matt grey/light grey.

Technical data

  • Number of sockets
    2
  • Color
    Gray
  • Material
    Plastic
  • Overprint
    NO
  • Type
    Antenna
  • Level of security
    IP55
  • Version
    through
  • Accurate color
    light gray
  • Terminal type
    Threaded
  • F-type input
    NO
  • Lid color
    Transparent
  • Wave impedance [Ω]
    75
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Cover
    Yes
  • Family
    W.1
  • Type
    Recessed Surface-mounted
  • Surface finish
    matte
  • Backlight
    NO
  • Variant
    R TV
  • For the frame system
    Yes
  • PKWIU
    27.12.40.0

Other technical data

  • Model
    Loop-through socket
  • Cover
    Full cover plate
  • Number of outlets
    2
  • Through loss at 860 MHz
    1 dB
  • Frequency
    4 ... 862 MHz
  • Colour
    Grey
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    Yes
  • Mounting method
    Surface mounted
  • Tap loss at 860 MHz
    10 dB
  • Suitable for cable modem
    Yes
  • Suitable for remote power supply
    Yes
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    7011
  • Surface finishing
    Matt
  • Material quality
    Thermoplastic

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,104 0,120 4,685 172,920
Width (m) 0,070 0,080 0,295 0,800
Length (m) 0,045 0,070 0,225 1,050
Depth (m) 0,070 0,080 0,400 1,200
