Manufacturer: BERKER
Number of sockets: 2
Color: Gray
Shape: Square
Price:
39,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

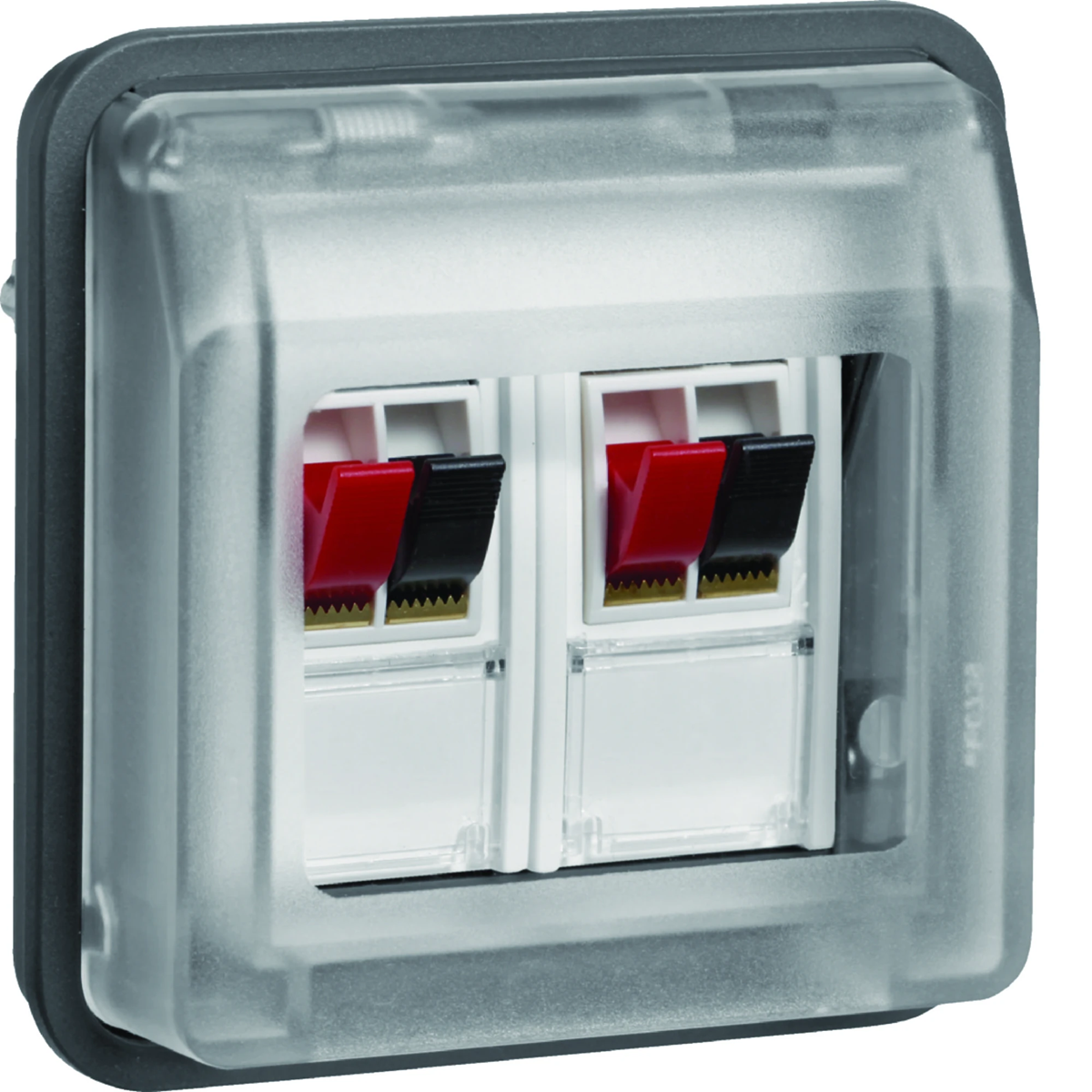

Speaker socket from the W.1 series, from the manufacturer Berker. The product part number is 11963535.



FEATURES

  • Stereo.
  • < strong>Double.
  • Color light grey.
  • Rating IP55.
  • < li>With transparent cover.
  • With plug-in terminals (double-sided).
  • With 2-wire entry and cable or pipe entry.
  • Cover hinged, made of stainless steel, quick release pins ZAMAK lock.



SERIES DESCRIPTION

Berker W.1< /strong> is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. The Speaker socket characterizes the features of this series.

Technical data

  • Number of sockets
    2
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Type
    speaker
  • Level of security
    IP55
  • Surface finish
    matte
  • Accurate color
    light gray
  • Variant
    Pin-type plugs
  • PKWIU
    27.12.40.0
  • Color
    Gray
  • Material
    Plastic
  • Descriptive field
    Yes
  • Family
    W.1
  • Type
    Recessed Surface-mounted
  • Maximum conductor cross-section [mm²]
    2.5
  • Backlight
    NO
  • Exact material
    Thermoplastic

Other technical data

  • Assembly arrangement
    Basic element with full cover plate
  • With dust cover
    Yes
  • Imprintable label
    With indication plate
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • Type of fastening
    Mounting with screw
  • With strain relief
    No
  • Luster terminal
    No
  • Device width
    70 mm
  • Device depth
    51 mm
  • Utilization
    Loudspeaker connection
  • With hinged lid
    Yes
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • With buses/couplings
    No
  • Shielded buses
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    70 mm
  • Min. depth of built-in installation box
    35 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,060 0,080 3,284 125,081
Width (m) 0,070 0,080 0,300 0,800
Length (m) 0,051 0,070 0,225 1,050
Depth (m) 0,070 0,085 0,400 1,200
