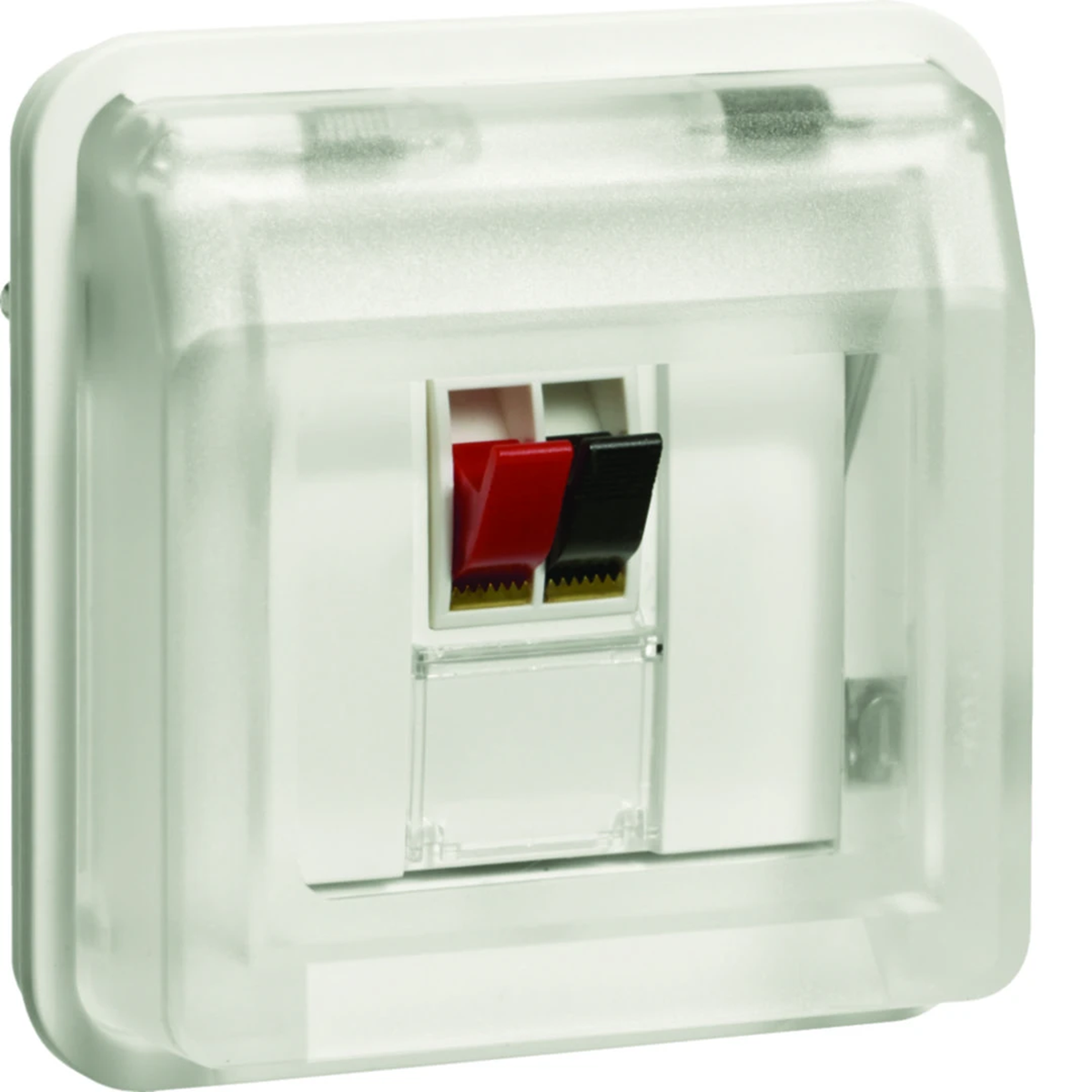

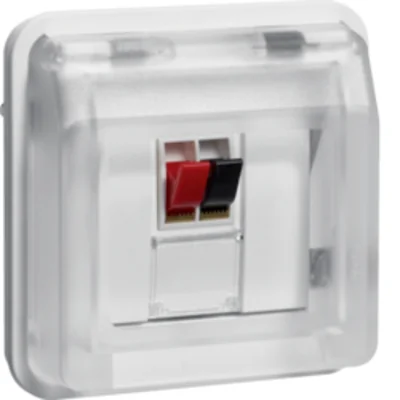

W.1 Module single speaker socket with cover IP55 white 11963522

local index:
MEG001BERK
Catalog No:
11963522
EAN code:
4011334440932
Manufacturer: BERKER
Number of sockets: 1
Color: White
Shape: Square
Price:
30,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Speaker socket from the W.1 series, from the manufacturer Berker. The product part number is 11963522.



FEATURES

  • Single.< /li>
  • Color Snow White.
  • Rating IP55.
  • With transparent cover.
  • With plug-in terminals (double-sided).
  • With 2-wire entry and cable or pipe entry.
  • Hinged cover, stainless steel, quick release pins for lock ZAMAK.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories which ra is distinguished by its innovative design. The Speaker socket characterizes the features of this series.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Type
    speaker
  • Level of security
    IP55
  • Surface finish
    matte
  • Accurate color
    Snow white
  • Variant
    Pin-type plugs
  • PKWIU
    27.12.40.0
  • Color
    White
  • Material
    Plastic
  • Descriptive field
    Yes
  • Family
    W.1
  • Type
    Recessed Surface-mounted
  • Maximum conductor cross-section [mm²]
    2.5
  • Backlight
    NO
  • Exact material
    Thermoplastic

Other technical data

  • Assembly arrangement
    Basic element with full cover plate
  • With dust cover
    yes
  • Outlet direction
    Straight
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    no
  • With buses/couplings
    no
  • Shielded buses
    no
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    70 mm
  • Min. depth of built-in installation box
    35 mm
  • Utilization
    Loudspeaker connection
  • With hinged lid
    yes
  • Imprintable label
    With indication plate
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Type of fastening
    Mounting with screw
  • With strain relief
    no
  • Luster terminal
    no
  • Device width
    70 mm
  • Device depth
    51 mm

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,070 3,068 118,169
Width (m) 0,080 0,300 0,800
Length (m) 0,070 0,225 1,050
Depth (m) 0,080 0,400 1,200
