Manufacturer: BERKER
Depth [mm]: 42
Number of keys: 1
Color: White
Price:
18,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

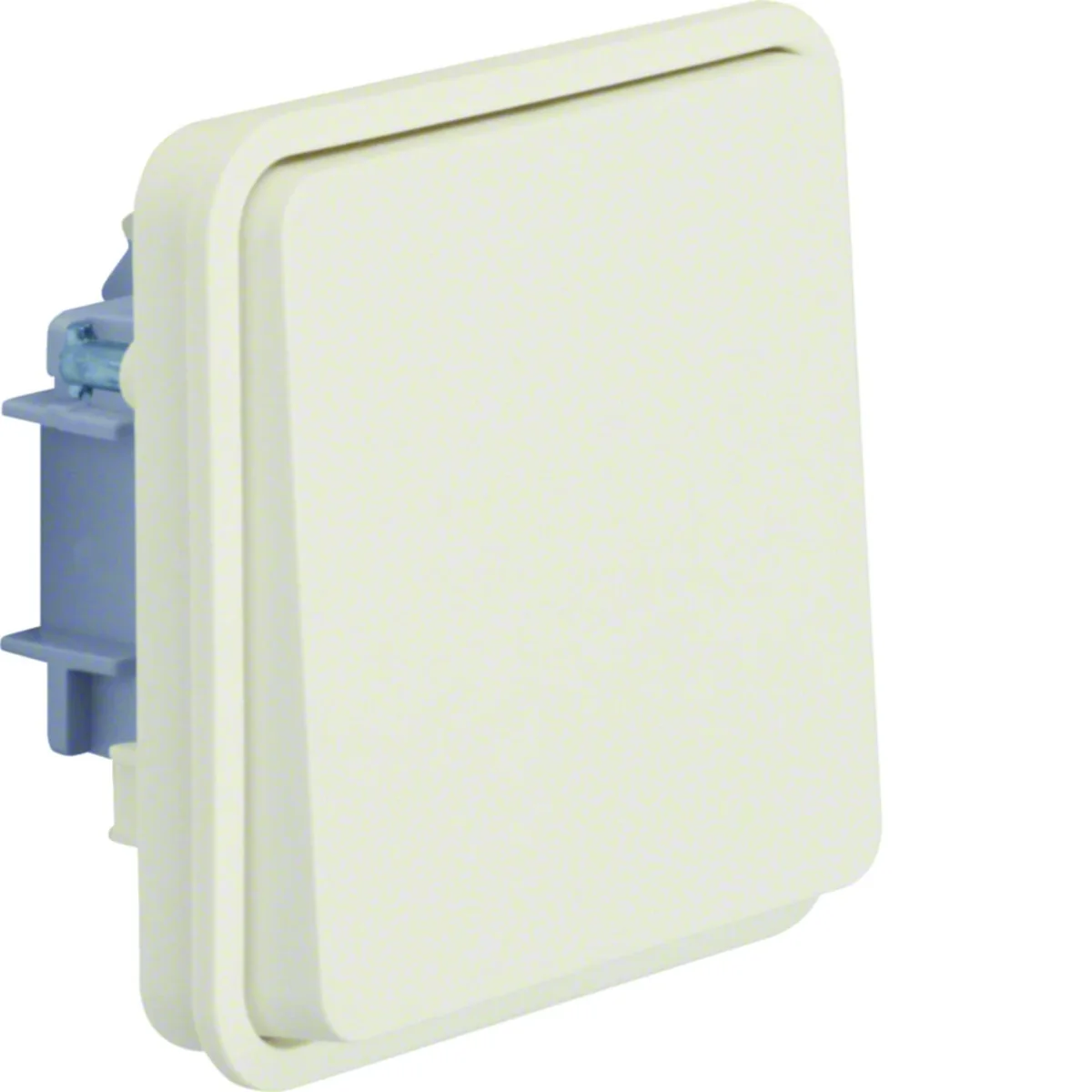

Universal push-button series W.1, from Berker. Product catalog number is 50463512.



FEATURES

  • For screw connection.
  • < li>With plug-in terminals.
  • Quick release pins made of ZAMAK.
  • Mechanisms achieve IP55 protection only when mounted with a surface-mounted housing or a frame for flush-mounting.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories that distinguishes with an innovative look. Operating switch characterizes the features of this series.

Technical data

  • Depth [mm]
    42
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP55
  • Type
    Recessed Surface-mounted
  • Height [mm]
    71
  • Accurate color
    Snow white
  • Variant
    Ordinary
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    71
  • Version
    Confident
  • Surface finish
    matte
  • Backlight
    NO
  • For the frame system
    Yes

Other technical data

  • Assembly arrangement
    Basic element with adapter plate
  • Method of operation
    Rocker
  • Number of modules (module system)
    0
  • Rated current
    10 A
  • With signal lamp
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Imprint
    None
  • Device width
    71 mm
  • Device depth
    43 mm
  • Model
    Single push button
  • Number of rockers
    1
  • Nominal voltage
    250 V
  • With lighting
    No
  • Feedback-signal contact
    No
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    71 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,056 0,076 3,181 126,792
Width (m) 0,071 0,080 0,300 0,800
Length (m) 0,042 0,070 0,225 1,050
Depth (m) 0,071 0,080 0,400 1,200
