Manufacturer: BERKER
Number of keys: 2
Color: Gray
Shape: Square
Price:
24,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

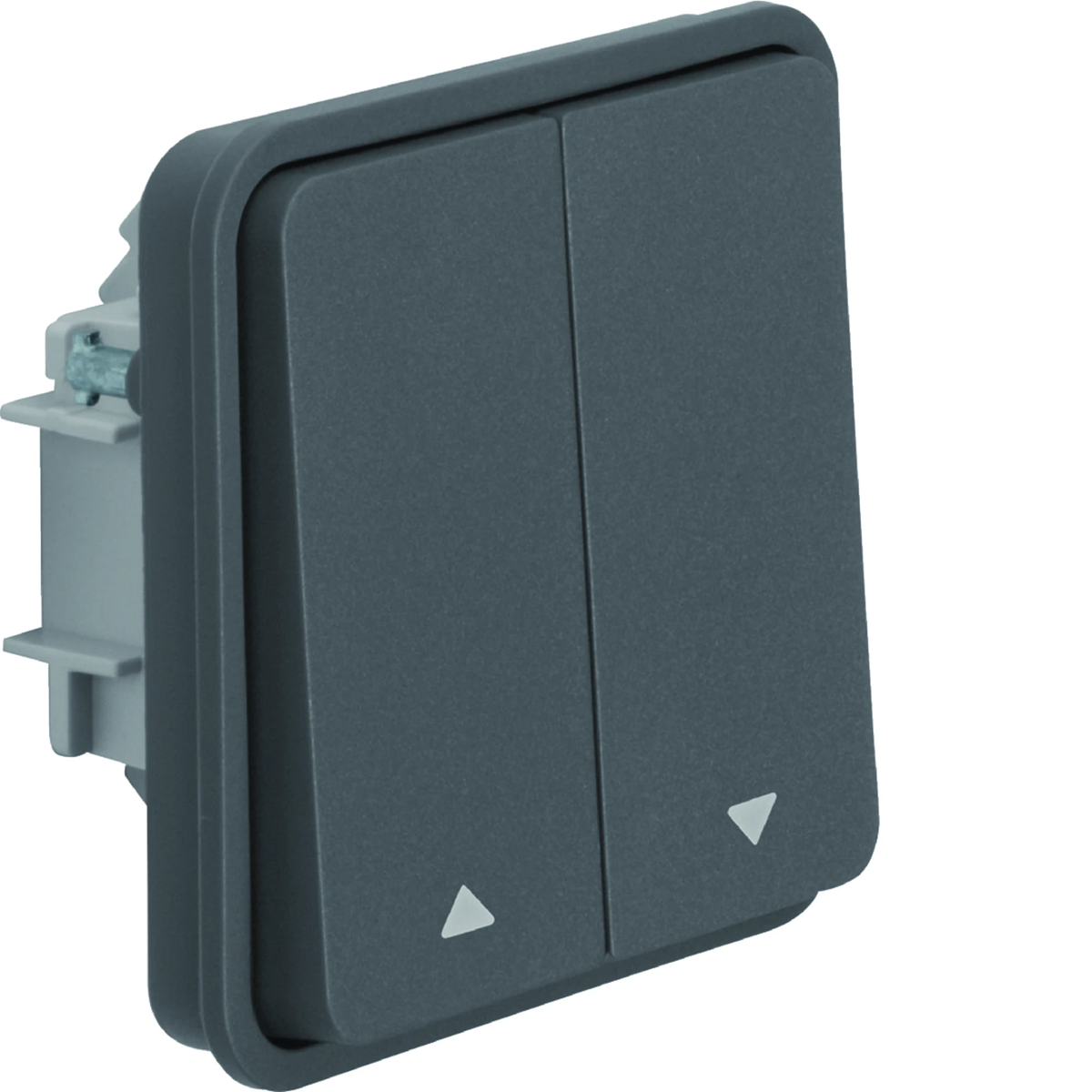

A push-button shutter switch from the W.1 series, from the manufacturer Berker. Product part number is 50553525.



FEATURES

  • With mechanical and electrical interlock.
  • For screw connection.
  • With plug-in terminals.
  • Quick release pins made of ZAMAK.
  • Mechanisms achieve IP55 protection only in the case of mounting with surface-mounted housing or frame for flush-mounting.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative appearance. The shutter connector characterizes the features of this unique series.

Technical data

  • Number of keys
    2
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    10
  • Family
    W.1
  • Type
    Recessed Surface-mounted
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    Thermoplastic
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP55
  • Version
    Single
  • Accurate color
    dark grey
  • Blockade
    Mechanical electric
  • Variant
    Two-position normally open
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element
  • Method of operation
    Rocker
  • Mechanical controllable
    Yes
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    7011
  • Label space/information surface
    No
  • Rated current
    10 A
  • Number of buttons
    2
  • Min. depth of built-in installation box
    0 mm
  • Model
    1-pole push button
  • Blokada elektryczna i mechaniczna
    Yes
  • Electronic controllable
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Colour
    Grey
  • Transparent
    No
  • Suitable for degree of protection (IP)
    IP20
  • Nominal voltage
    250 V
  • Number of modules (module system)
    0

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,054 0,080 3,260 127,320
Width (m) 0,075 0,080 0,300 0,800
Length (m) 0,032 0,070 0,225 1,050
Depth (m) 0,075 0,080 0,400 1,200
