W.1 IP55 gray push-button shutter switch 50753535

Name: W.1 IP55 gray push-button shutter switch
Brand: BERKER
SKU: MNO004BERK
Price: 33.27 PLN

local index:

MNO004BERK

Catalog No:

50753535

EAN code:

4011334440987

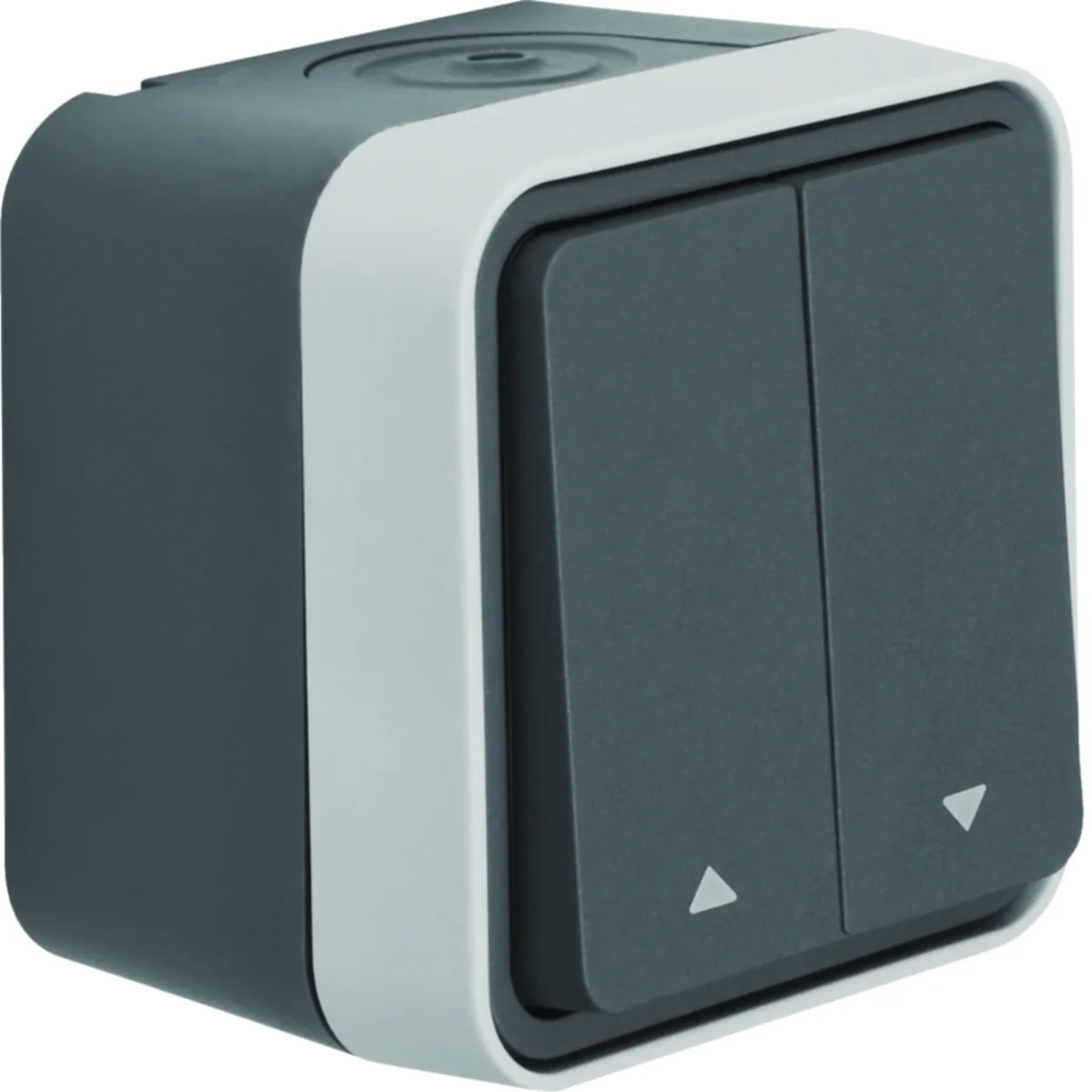

W.1 IP55 gray push-button shutter switch

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 62

Number of keys: 2

Color: Gray

See full description

Price:

33,27 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

A push-button shutter switch from the W.1 series, from the manufacturer Berker. Product part number is 50753535.

FEATURES

Complete.
Surface mounted .
With mechanical and electrical interlock.
For screw connection.
With Wago 2-pole wiring connector.
Z ;2 snap fasteners for Wago 2-pole connection terminal on the underside of the housing.
With plug-in terminals.
With 2-wire entry and cable or pipe entry.
With full-surface seal on the back side of the housing enabling cable entry from the back side and adjustment to the plaster.
Quick release pins made of ZAMAK.
Stainless cover springs stainless steel, latch pins made of ZnAl alloy.

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative appearance. The push-button shutter switch characterizes the features of this unique series.

Technical data

Depth [mm]

62
Color

Gray
Material

Plastic
Rated current [A]

10
Family

W.1
Width [mm]

76
Version

Single
Surface finish

matte
Backlight

NO
Terminal type

Threadless
Exact material

Thermoplastic
PKWIU

27.33.11.0

Number of keys

2
Shape

Square
Rated voltage [V]

230
Type

Shutter
Level of security

IP55
Type

Surface-mounted
Height [mm]

76
Accurate color

dark grey
Blockade

Mechanical electric
Variant

Two-position normally open
Seal

Yes

Other technical data

Assembly arrangement

Basic element with complete housing
Method of operation

Rocker
Mechanical controllable

Yes
Mounting method

Surface mounted
Material quality

Thermoplastic
Surface protection

Untreated
Type of fastening

Mounting with screw
RAL-number (similar)

7011
Label space/information surface

No
Rated current

10 A
Number of buttons

2
Min. depth of built-in installation box

0 mm

Model

1-pole push button
Blokada elektryczna i mechaniczna

Yes
Electronic controllable

No
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
Colour

Grey
Transparent

No
Suitable for degree of protection (IP)

IP55
Nominal voltage

250 V
Number of modules (module system)

0

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	30 pcs.	960 pcs.
Weight (kg)	0,126	1,345	4,485	166,520
Width (m)	0,075	0,160	0,300	0,800
Length (m)	0,032	0,085	0,225	1,050
Depth (m)	0,075	0,330	0,400	1,200
