W.1 Double horizontal frame for flush mounting IP55 white 13293502

Name: W.1 Double horizontal frame for flush mounting IP55 white
Brand: BERKER
SKU: MAR520BERK
Price: 15.62 PLN

local index:

MAR520BERK

Catalog No:

13293502

EAN code:

4011334405139

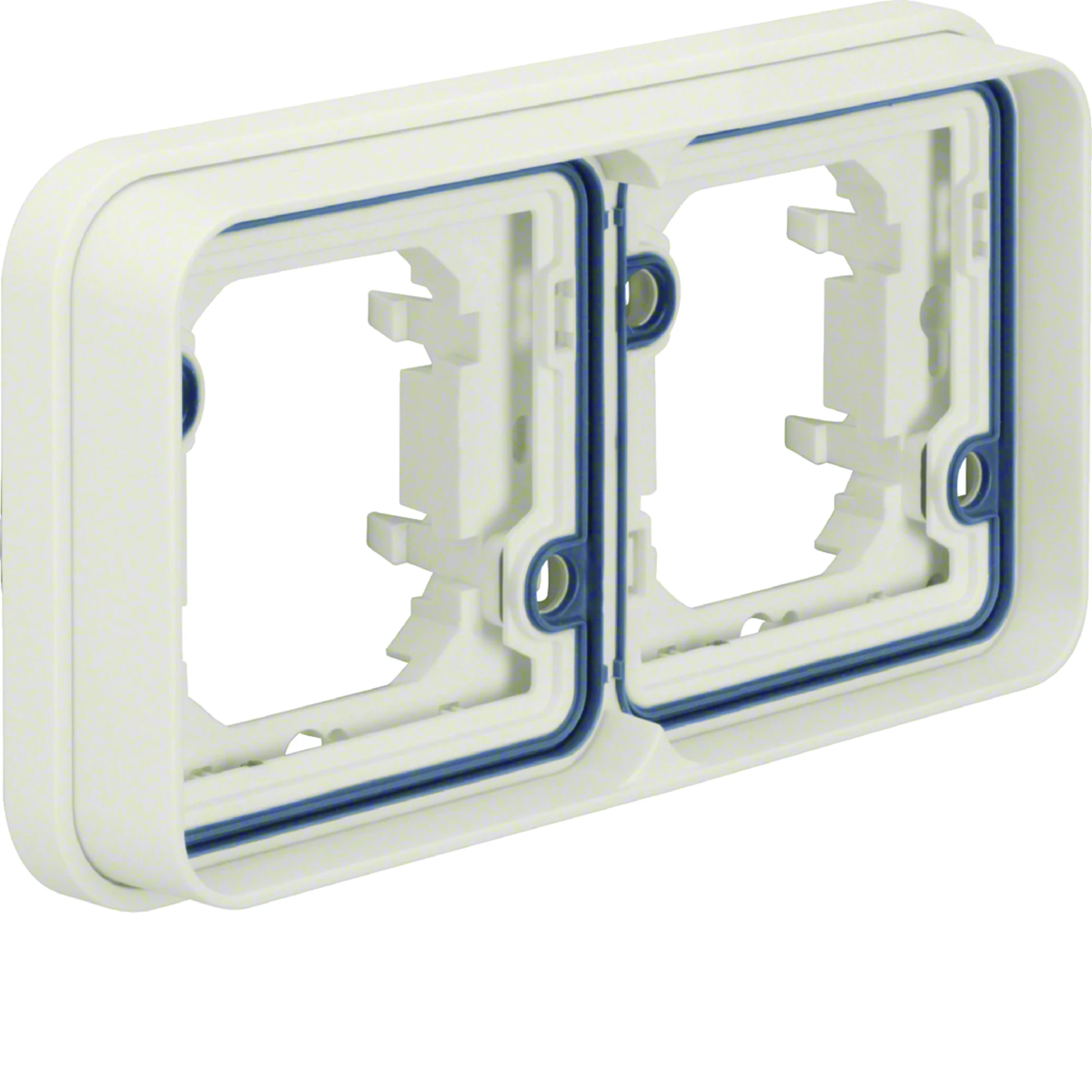

W.1 Double horizontal frame for flush mounting IP55 white

Click on the photo to enlarge

Manufacturer: BERKER

Number of modules: 2

Color: White

Shape: Rectangular

See full description

Price:

15,62 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Double frame, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance. The product catalog number is 13293502.

For flush and plasterboard mounting, with mounting adapter and gasket.
The IP55 degree of protection is provided only in the case of the flush-mounted mechanism of the Berker W.1 product line.

Technical data

Number of modules

2
Shape

Rectangular
Type

Standard
Level of security

IP20
Height [mm]

83
Surface finish

Shiny
Mounting direction

Horizontal
The shape of the matching accessory

Square, Rectangular

Color

White
Material

Plastic
Family

W.1
Width [mm]

154
Surface protection

Natural
Accurate color

Snow white
For modular equipment

Not applicable
PKWIU

27.12.40.0

Other technical data

Number of units

2
Number of units horizontal

2
Liczba łączników

2
Suitable for subfloor installation duct box

No
Suitable for built-in installation

Yes
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
With hinged lid

No
Impact strength

IK05
Width

154 mm
Depth

38 mm
Built-in height

71 mm

Mounting direction

Horizontal
Number of units vertical

1
With mounting grid

No
Suitable for wall duct

Yes
Label space/information surface

No
Material quality

Thermoplastic
Surface protection

Untreated
Transparent

No
Degree of protection (IP)

IP20
Type of fastening

Clamping/screw mounting
Height

83 mm
Built-in width

71 mm
Diameter bore hole (opening)

0 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	5 pcs.	20 pcs.	640 pcs.
Weight (kg)	0,069	0,420	2,120	92,840
Width (m)	0,154	0,180	0,300	0,800
Length (m)	0,038	0,090	0,225	1,050
Depth (m)	0,083	0,230	0,400	1,200
