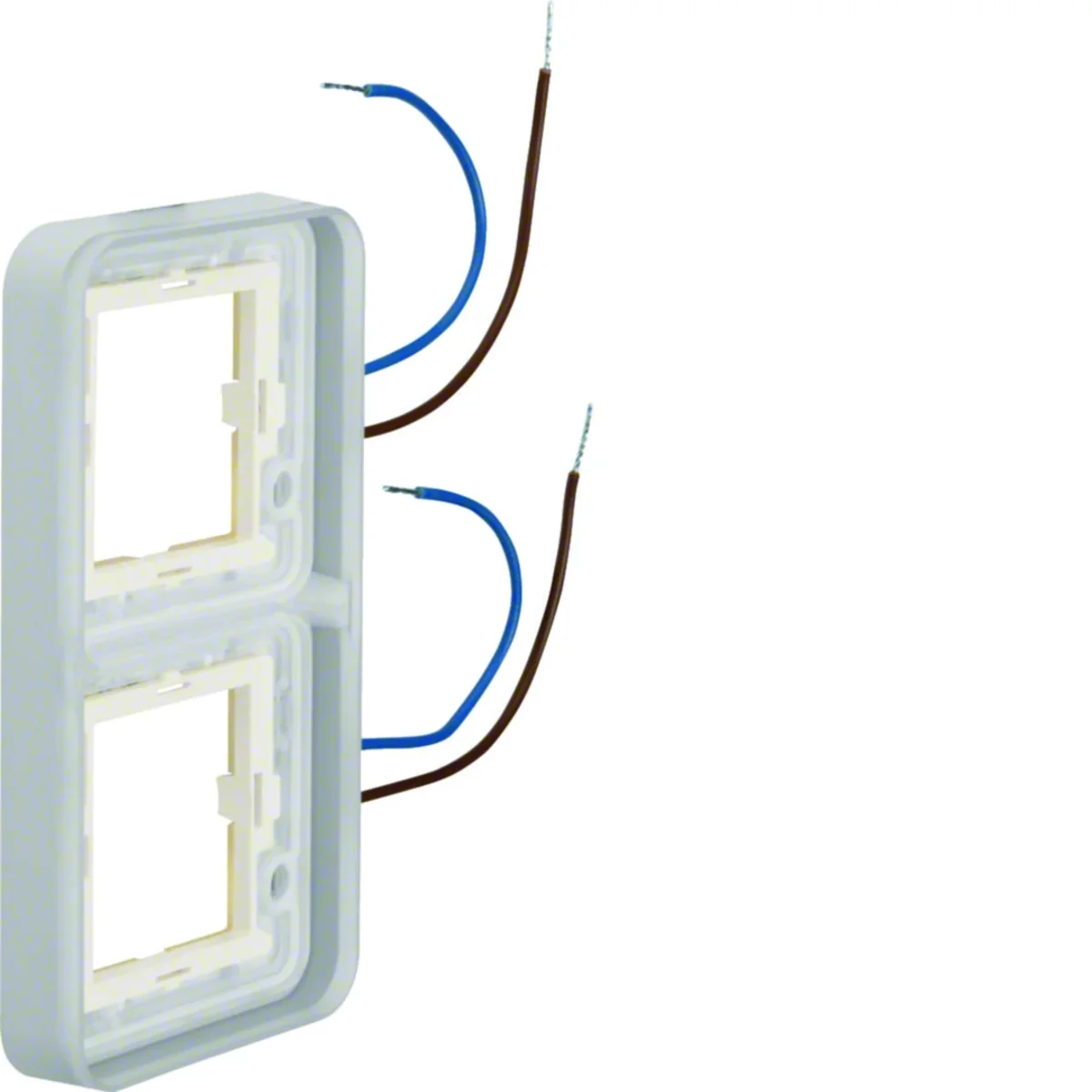

W.1 Double frame with blue backlight 230V 10 mA for N/T boxes IP55 13393513

local index:
MAA002BERK
Catalog No:
13393513
EAN code:
4011334404521
Manufacturer: BERKER
Color: Gray
Material: Thermoplastic
Surface: Matt
Price:
81,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double frame with blue backlight, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

    < li> for wall-mounted boxes
  • IP55
  • Version: 230V - 10 mA

Technical data

  • Color
    Gray
  • Surface
    Matt
  • Family
    W.1
  • Accurate color
    light gray
  • PKWIU
    27.12.40.0
  • Material
    Thermoplastic
  • Rated current [A]
    0.0025
  • Operating temperature range [°C]
    from -40 to 30
  • storage temperature [°C]
    from -50 to 50

Other technical data

  • Number of units
    2
  • Number of units horizontal
    1
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    2
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7035
  • With hinged lid
    No
  • Impact strength
    IK05
  • Width
    83 mm
  • Depth
    23 mm
  • Built-in height
    71 mm
  • Mounting direction
    Vertical
  • Number of units vertical
    2
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Screw mounting
  • Height
    154 mm
  • Built-in width
    71 mm
  • Diameter bore hole (opening)
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 98 pcs. 3920 pcs.
Weight (kg) 0,050 0,066 6,924 296,960
Width (m) 0,082 0,086 0,300 0,800
Length (m) 0,035 0,025 0,338 1,840
Depth (m) 0,153 0,158 0,400 1,200
