Manufacturer: BERKER
Depth [mm]: 61.5
Number of keys: 1
Color: Gray
Price:
32,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

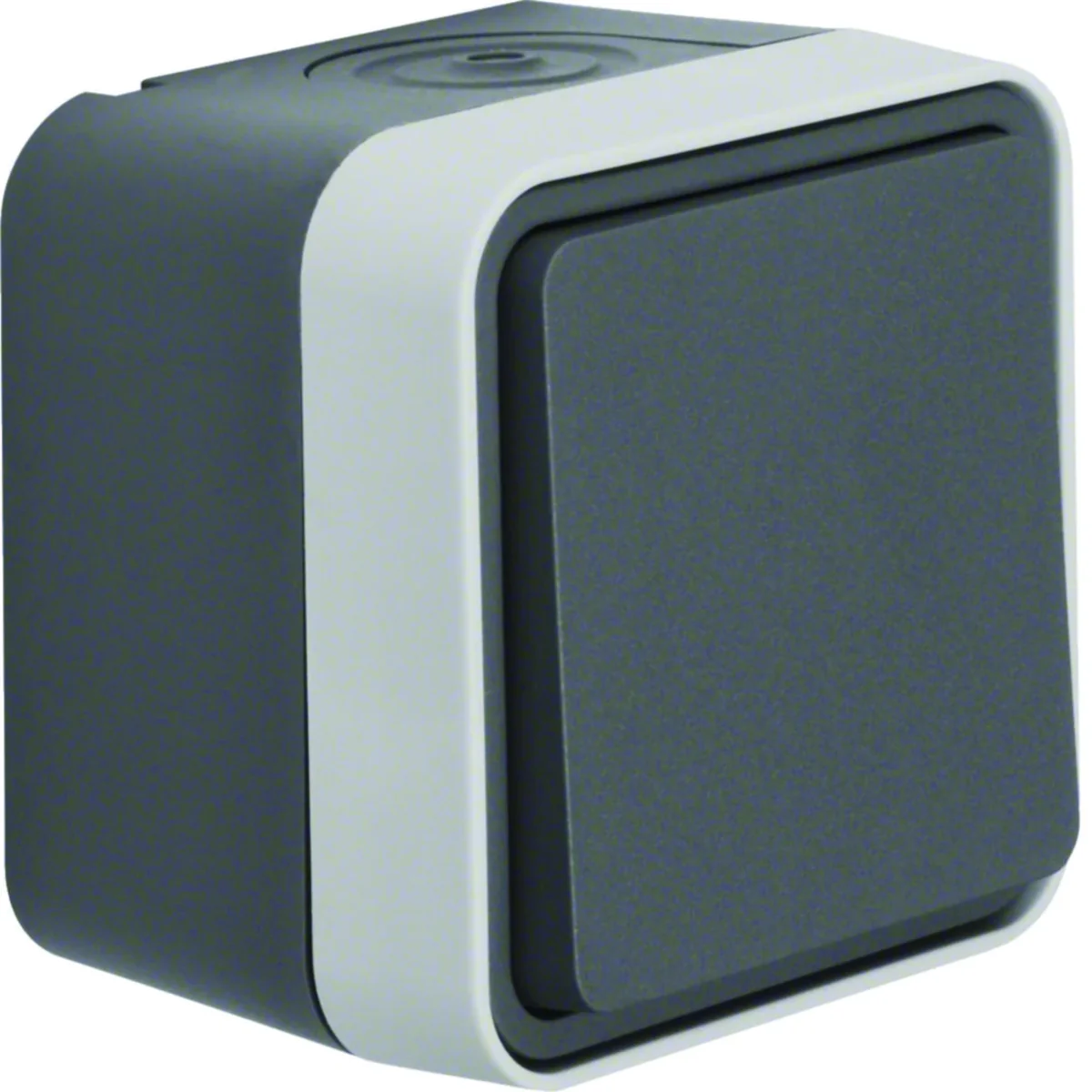

Surface-mounted cross connector from the W.1 series, from the manufacturer Berker. The product catalog number is 30773505.



FEATURES

  • For screw connection.
  • Quick Connect.
  • With 2 clips for Wago 2-pole connection terminal on the bottom of the housing.
  • With Wago 2-pole connection terminal for wiring.
  • With plug-in terminals.
  • With 2-wire entry and cable or pipe entry.
  • With full-surface seal on the rear side of the housing for cable entry from the rear side and adjustment to of plaster.
  • Quick release pins made of ZAMAK.
  • Lock cover springs made of stainless steel, latch pins made of ZnAl alloy.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. Surface-mounted cross connector characterizes the features of this unique series.

Technical data

  • Depth [mm]
    61.5
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Cross
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Surface finish
    matte
  • Backlight
    NO
  • For the frame system
    NO
  • Seal
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Installation
    Surface-mounted
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    76
  • Height [mm]
    76
  • Accurate color
    dark grey
  • Terminal type
    Threadless
  • Exact material
    Thermoplastic
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Intermediate switch
  • Assembly arrangement
    Basic element with complete housing
  • Mounting method
    Surface mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Label space/information surface
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device height
    76 mm
  • Built-in depth
    0 mm
  • Method of operation
    Rocker/button
  • Number of rockers
    1
  • Type of fastening
    Screw mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • Suitable for degree of protection (IP)
    IP55
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Device width
    76 mm
  • Device depth
    61.5 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 30 pcs. 960 pcs.
Weight (kg) 0,131 1,390 4,615 170,680
Width (m) 0,076 0,160 0,295 0,800
Length (m) 0,062 0,085 0,230 1,050
Depth (m) 0,076 0,325 0,395 1,200
