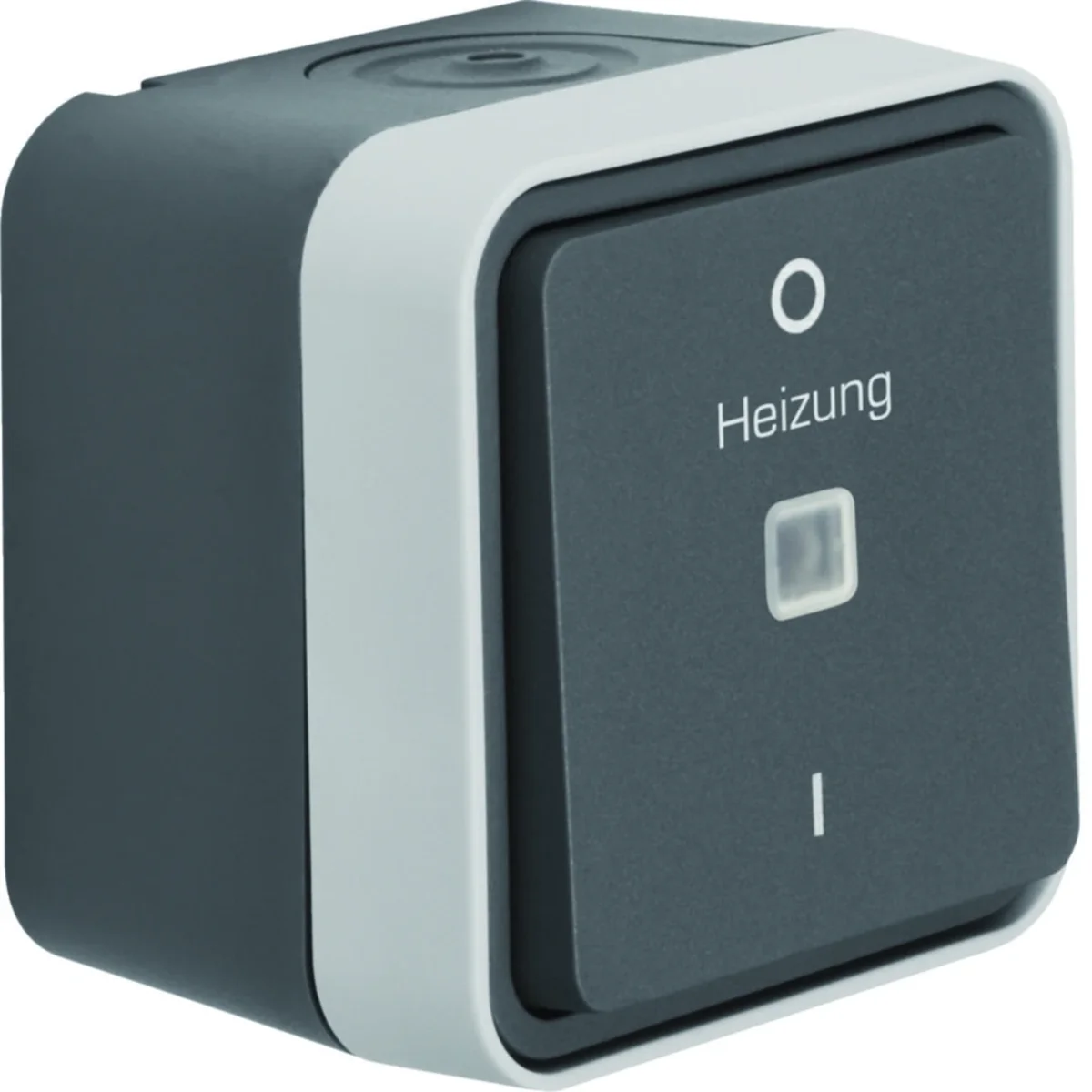

W.1 Control switch with "Heizung 0-1" print complete IP55 grey 35623505

Indice locale:
MNP002BERK
Numero di catalogo:
35623505
Codice EAN:
4011334394983
Produttore: BERKER
Depth [mm]: 62
Material: Thermoplastic
Rated voltage [V]: 230
Prezzo:
240,62 zł
gross / pezzi
(inclusa IVA 23%)
fino a 10 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Control switch with "Heizung 0-1" complete, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

Connections:

  • with mechanical key mounting coding that allows mounting on the mechanism only in the correct position

Connection:

  • with 2 latches for Wago 2-pole connection terminal on the bottom of the housing
  • with Wago 2-pole connection terminal for wiring
  • with plug-in terminals

Cable:

  • with 2-wire entry and cable or pipe entry

Accessories:

  • with 230 V LED
  • for control connection with backlight
  • with a full-surface seal on the back side of the housing enabling the cable to be inserted from the back side and fitting to the plaster

Dati tecnici

  • Depth [mm]
    62
  • Rated voltage [V]
    230
  • Surface
    Matt
  • Family
    W.1
  • Width [mm]
    76
  • Connection type
    With plug-in terminals
  • PKWIU
    27.33.11.0
  • Material
    Thermoplastic
  • DC rated voltage [V]
    250
  • Rated current [A]
    10
  • Level of security
    IP55
  • Operating temperature range [°C]
    from -40 to 30
  • storage temperature [°C]
    from -50 to 50

Altri dati tecnici

  • Wiring system
    2-pole switch
  • Assembly arrangement
    Basic element
  • Push button switch
    No
  • Mounting method
    Surface mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • Label space/information surface
    No
  • Function lighting
    Illuminated (on)
  • Suitable for degree of protection (IP)
    IP55
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    0 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Compliant with UK Building Regulations Part M
    No
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Screw mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Blue
  • Colour of switch operator
    Grey
  • Illumination
    Optional
  • Type of lighting
    LED exchangeable
  • Impact strength
    IK05
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Heating switch
    No
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    0 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 1 pezzi 36 pezzi 1152 pezzi
Peso (kg) 0,146 5,630 205,160
Larghezza (m) 0,080 0,300 0,800
Lunghezza (m) 0,070 0,220 1,050
Profondità (m) 0,080 0,400 1,200
