W.1 Candlestick switch separate input terminals IP55 grey 30483515

Name: W.1 Candlestick switch separate input terminals IP55 grey
Brand: BERKER
SKU: MMT004BERK
Price: 108.31 PLN
Availability: BackOrder

Indice locale:

MMT004BERK

Numero di catalogo:

30483515

Codice EAN:

4011334390237

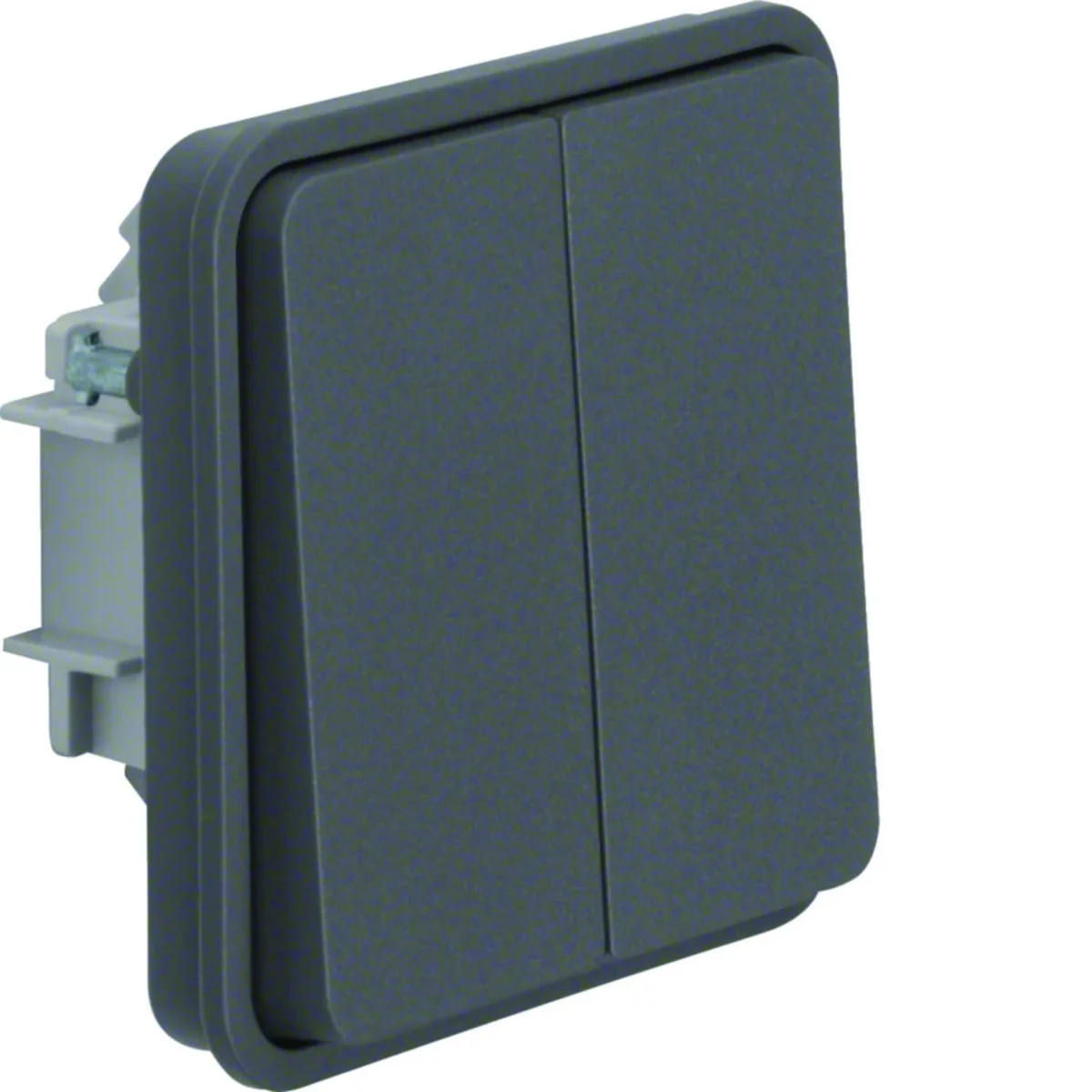

W.1 Candlestick switch separate input terminals IP55 grey

Clicca sulla foto per ingrandire

Produttore: BERKER

Depth [mm]: 42

Color: Gray

Material: Thermoplastic

Vedi la descrizione completa

Prezzo:

108,31 zł

gross / pezzi

(inclusa IVA 23%)

fino a 10 settimane

Su ordinazione

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Candlestick connector module with separate input terminals, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

< strong>Additional information:

the mechanism achieves the IP55 degree of protection only when mounted with a surface-mounted housing or a flush-mounted frame,
quick release pins made of CLOSE

Dati tecnici

Depth [mm]

42
Material

Thermoplastic
DC rated voltage [V]

250
Rated current [A]

10
Level of security

IP55
Operating temperature range [°C]

from -40 to 30
Connection type

With plug-in terminals
PKWIU

27.33.11.0

Color

Gray
Rated voltage [V]

230
Surface

Matt
Family

W.1
Width [mm]

70
Accurate color

dark grey
storage temperature [°C]

from -50 to 50

Altri dati tecnici

Wiring system

Alternating-/alternating switch
Assembly arrangement

Basic element with adapter plate
Number of rockers

2
Type of fastening

Screw mounting
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

Blue
Label space/information surface

No
Function lighting

Other
Suitable for degree of protection (IP)

IP55
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Washing machine switch

No
Device height

70 mm
Built-in depth

12 mm
Compatible with Apple HomeKit

No
Compatible with Amazon Alexa

No
Compliant with UK Building Regulations Part M

No

Method of operation

Rocker/button
Push button switch

No
Mounting method

Surface mounted
With mounting plate

No
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Matt
RAL-number (similar)

7011
Illumination

No
Type of lighting

Other
Impact strength

IK05
Rated current

10 A
Feedback-signal contact

No
Heating switch

No
Device width

70 mm
Device depth

42 mm
Min. depth of built-in installation box

0 mm
Compatible with Google Assistant

No
IFTTT support available

No

Dettagli del produttore

Produttore

Berker GmbH & Co. KG.
Indirizzo

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Pakiet	Paleta
Quantità	10 pezzi	40 pezzi	1280 pezzi
Peso (kg)	0,770	3,520	135,640
Larghezza (m)	0,170	0,300	0,800
Lunghezza (m)	0,090	0,220	1,050
Profondità (m)	0,230	0,400	1,200
