W.1 Candlestick connector common input terminals IP55 white 30553512

Name: W.1 Candlestick connector common input terminals IP55 white
Brand: BERKER
SKU: MMT002BERK
Price: 23.36 PLN

local index:

MMT002BERK

Catalog No:

30553512

EAN code:

4011334390220

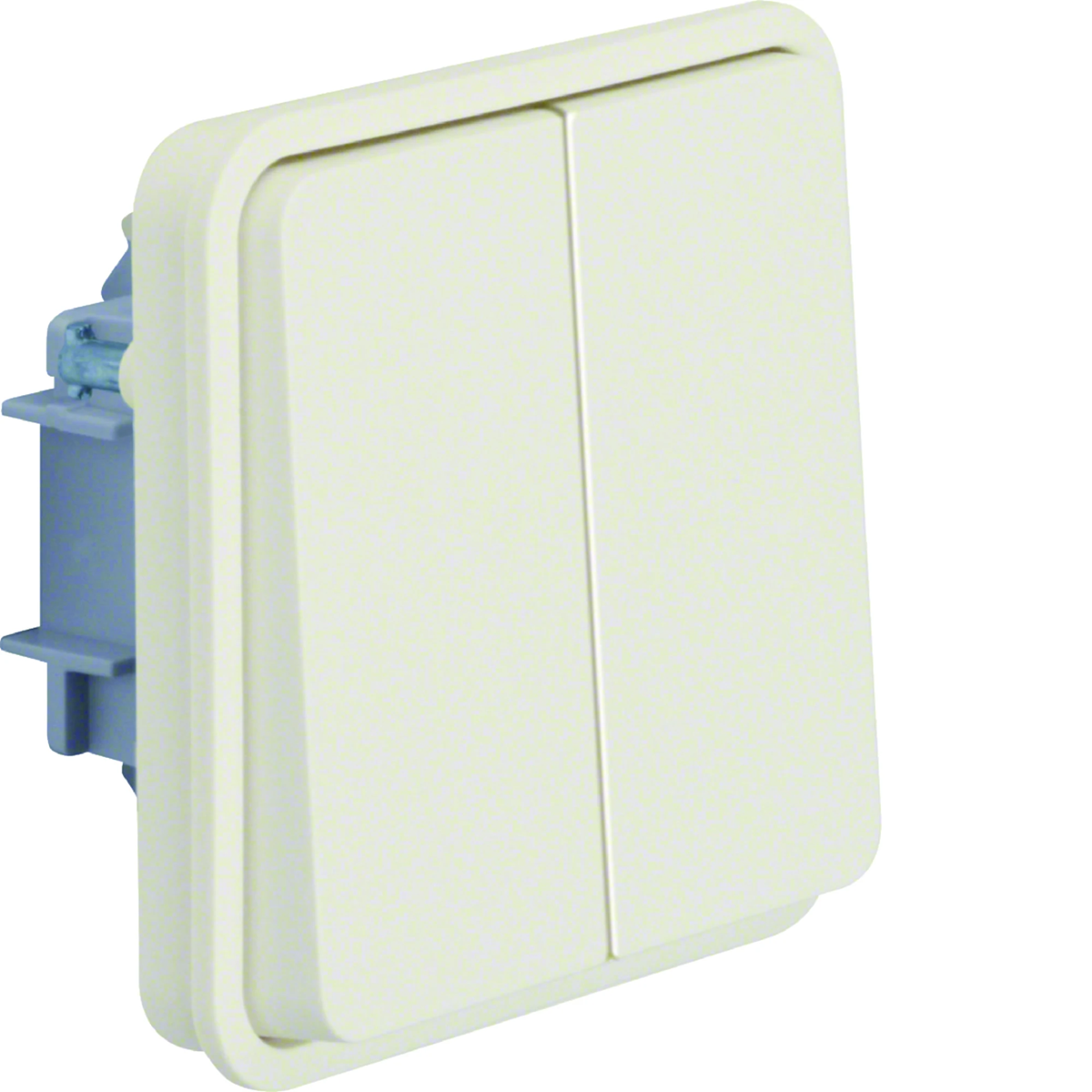

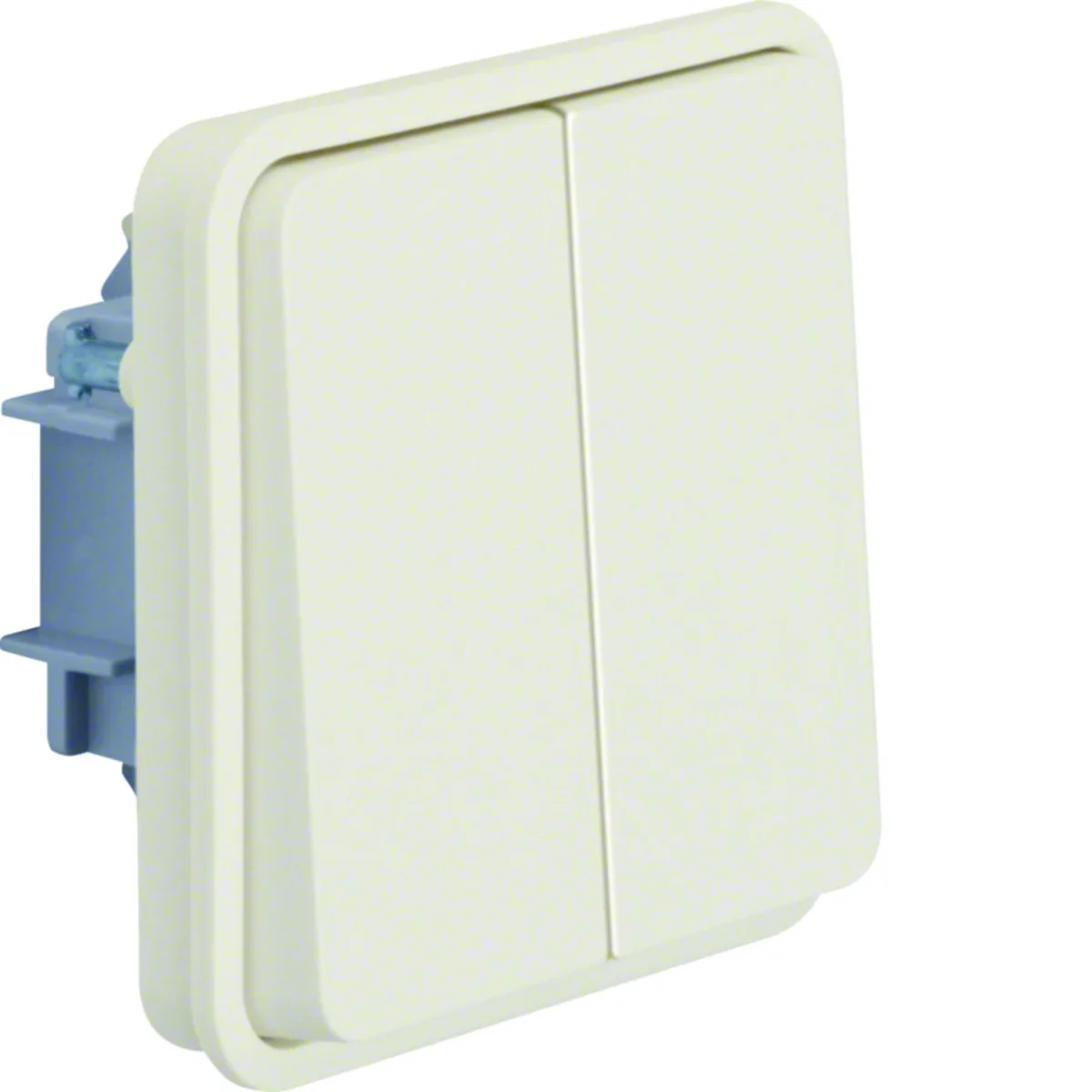

W.1 Candlestick connector common input terminals IP55 white

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 42

Number of keys: 2

Color: White

See full description

Price:

23,36 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Candlestick connector from the W.1 series, from the manufacturer Berker. The product part number is 30553512.

FEATURES

Common input terminals.
Flush or surface mounting.
For screw connection.
Quick Connect.
With plug-in terminals.
Quick release pins locks made of ZAMAK.
Mechanisms achieve IP55 protection only when mounted with surface-mounted housing or flush-mounted frame.

< h3>SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative design. Candlestick connector characterize the features of this unique series.

Technical data

Depth [mm]

42
Color

White
Material

Plastic
Rated voltage [V]

230
Type

Candlestick
Level of security

IP55
Type

Recessed Surface-mounted
Surface finish

matte
Terminal type

Threadless
Exact material

Thermoplastic

Number of keys

2
Shape

Square
Installation

Recessed Surface-mounted
Rated current [A]

10
Family

W.1
Width [mm]

70
Height [mm]

70
Backlight

NO
For the frame system

Yes
PKWIU

27.33.11.0

Other technical data

Wiring system

Series switch
Assembly arrangement

Control element
Mounting method

Surface mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Label space/information surface

No
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device height

71 mm
Built-in depth

12 mm

Method of operation

Rocker/button
Number of rockers

2
Type of fastening

Screw mounting
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

9010
Suitable for degree of protection (IP)

IP55
Rated current

10 A
Feedback-signal contact

No
Device width

71 mm
Device depth

46 mm
Min. depth of built-in installation box

0 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,060	0,080	3,284	125,081
Width (m)	0,071	0,080	0,300	0,800
Length (m)	0,042	0,070	0,225	1,050
Depth (m)	0,071	0,080	0,400	1,200
