W.1 Candlestick connector common input terminals complete IP55 grey 30753505

Name: W.1 Candlestick connector common input terminals complete IP55 grey
Brand: BERKER
SKU: MNT002BERK
Price: 30.09 PLN
Availability: InStock

local index:

MNT002BERK

Catalog No:

30753505

EAN code:

4011334393672

W.1 Candlestick connector common input terminals complete IP55 grey

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 61.5

Number of keys: 2

Color: Gray

See full description

Price:

30,09 €

gross / pcs.

(including VAT 23%)

Accessible 37 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

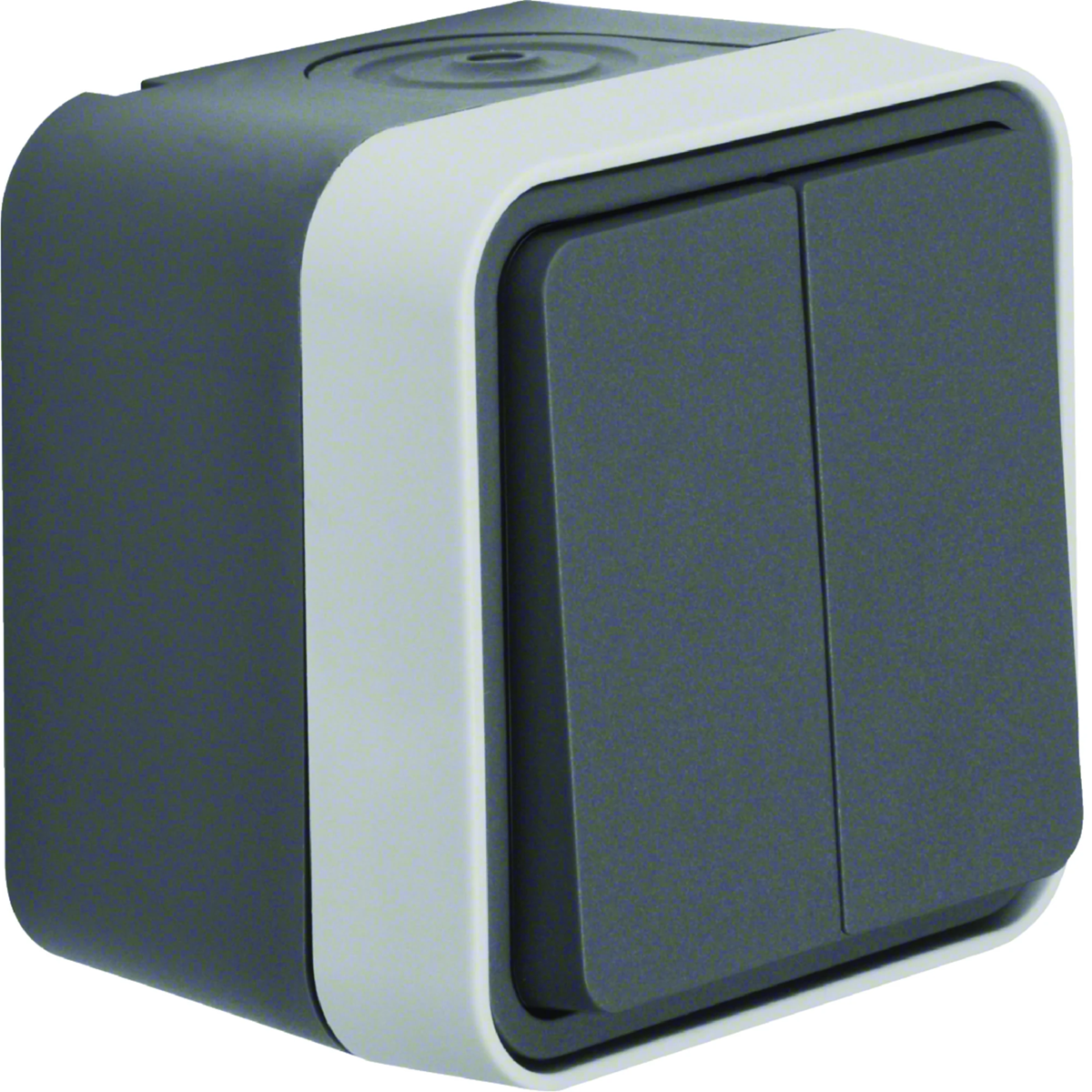

Candle holder surface series W.1, from Berker. The product part number is 30753505.

FEATURES

Double key.
Serial.
For screw connection.
Quick Connect.
With Wago 2 connection nipple -pole for wiring.
With 2 clips for Wago 2-pole connection terminal on the underside of the housing.
With plug-in terminals.
With entry for 2 wires and entry of a cable or pipe.
With a full-surface seal on the rear side of the housing enabling cable entry from the rear side and adjustment to the plaster.
Quick release pins made of ZAMAK.< /li>
Lock cover springs made of stainless steel, latch pins made of ZnAl alloy.

SERIES DESCRIPTION

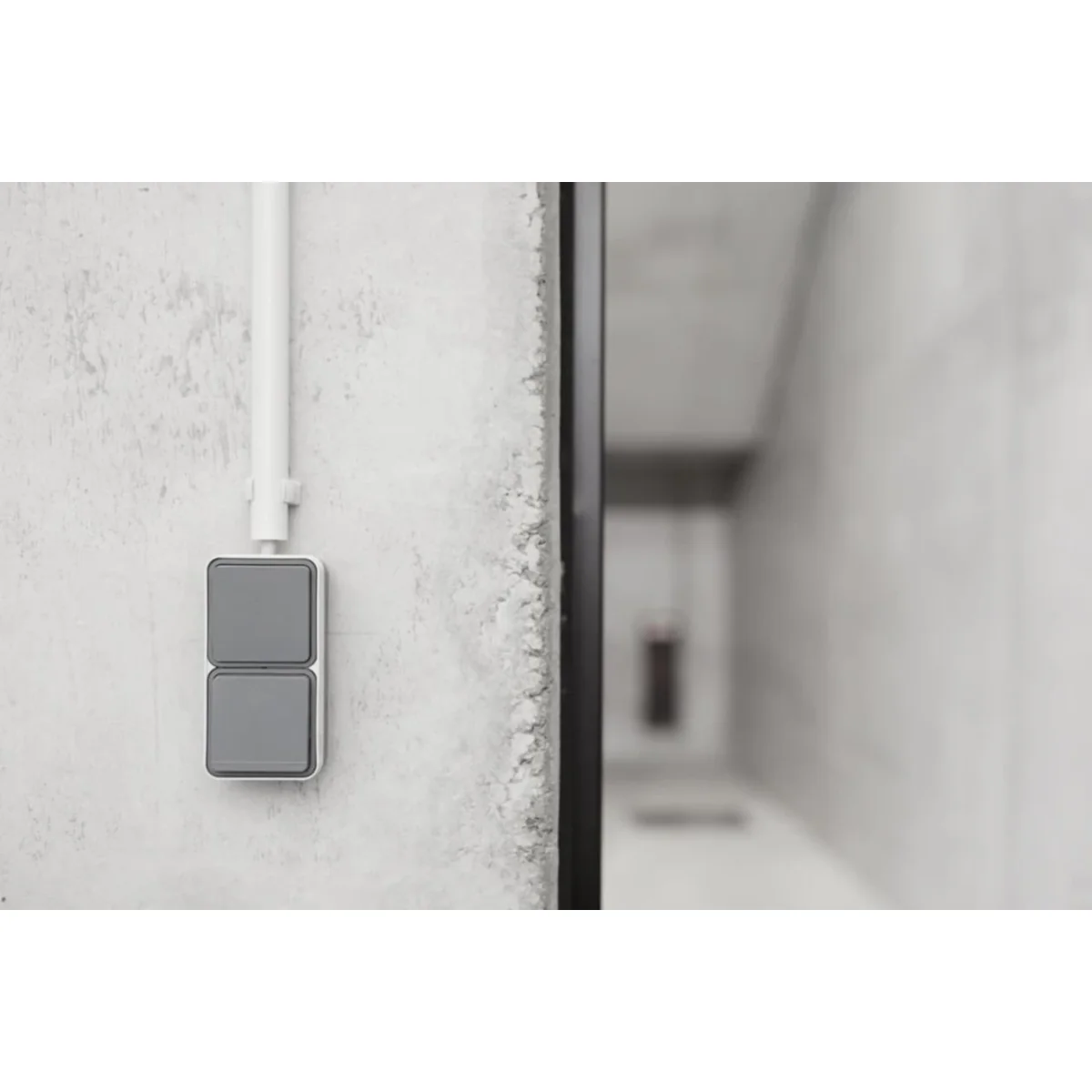

Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative design. Candlestick surface-mounted characterizes the features of this unique series.

Technical data

Depth [mm]

61.5
Color

Gray
Material

Plastic
Rated voltage [V]

230
Type

Candlestick
Level of security

IP55
Type

Surface-mounted
Surface finish

matte
Backlight

NO
For the frame system

NO
Seal

Yes

Number of keys

2
Shape

Square
Installation

Surface-mounted
Rated current [A]

10
Family

W.1
Width [mm]

76
Height [mm]

76
Accurate color

dark grey
Terminal type

Threadless
Exact material

Thermoplastic
PKWIU

27.33.11.0

Other technical data

Wiring system

Series switch
Assembly arrangement

Basic element with complete housing
Mounting method

Surface mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

Grey
Label space/information surface

No
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device height

76 mm
Built-in depth

0 mm

Method of operation

Rocker/button
Number of rockers

2
Type of fastening

Screw mounting
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

7011
Suitable for degree of protection (IP)

IP55
Rated current

10 A
Feedback-signal contact

No
Device width

76 mm
Device depth

61.5 mm
Min. depth of built-in installation box

0 mm

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	30 pcs.	960 pcs.
Weight (kg)	0,125	1,328	4,436	166,952
Width (m)	0,076	0,158	0,300	0,800
Length (m)	0,062	0,081	0,225	1,050
Depth (m)	0,076	0,325	0,400	1,200
