W.1 3-gang horizontal frame for flush mounting IP55 white 13293512

Name: W.1 3-gang horizontal frame for flush mounting IP55 white
Brand: BERKER
SKU: MAR378BERK
Price: 72.39 PLN
Availability: BackOrder

Index local:

MAR378BERK

Numéro de catalogue:

13293512

Code EAN:

4011334405153

W.1 3-gang horizontal frame for flush mounting IP55 white

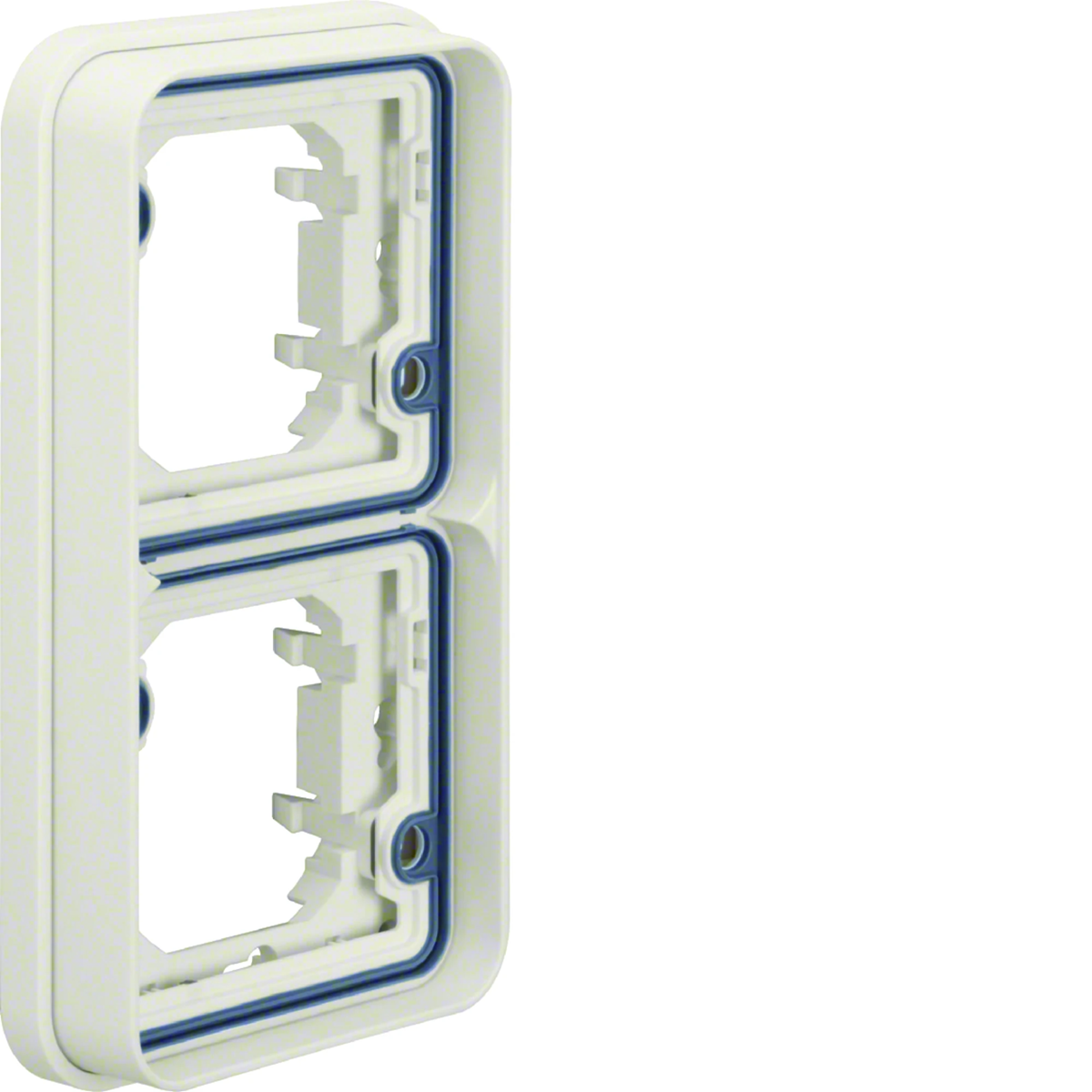

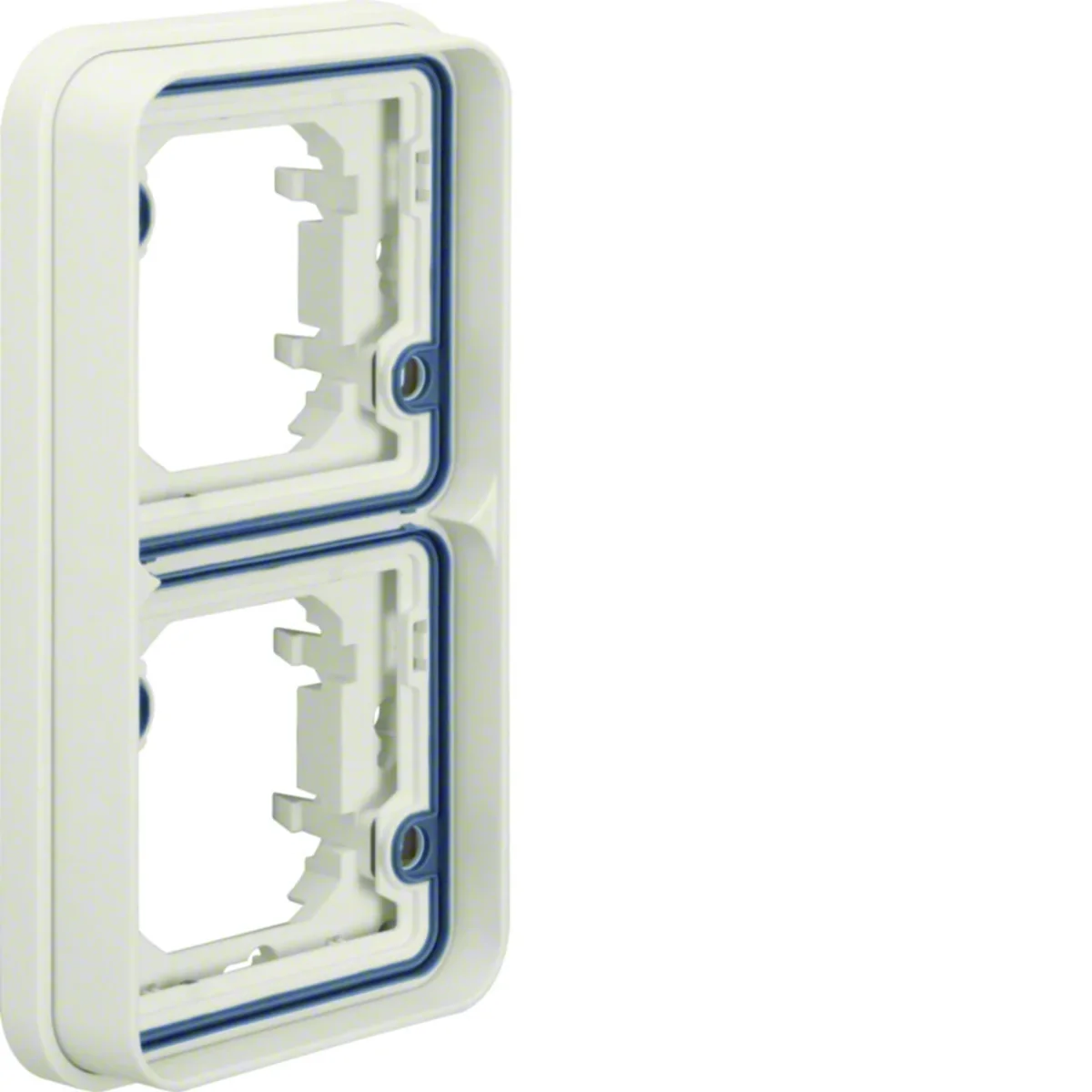

Cliquer sur la photo pour l'agrandir

Producteur: BERKER

Number of modules: 2

Color: White

Shape: Rectangular

Voir la description complète

Prix:

72,39 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 10 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Double frame, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance. The product catalog number is 13293512.

For flush and plasterboard mounting, with mounting adapter and gasket.
The IP55 degree of protection is provided only in the case of the flush-mounted mechanism of the Berker W.1 product line.

Données techniques

Number of modules

2
Shape

Rectangular
Type

Standard
Level of security

IP20
Surface finish

Shiny
Mounting direction

Vertical
The shape of the matching accessory

Square, Rectangular

Color

White
Material

Plastic
Family

W.1
Surface protection

Natural
Accurate color

Snow white
For modular equipment

Not applicable
PKWIU

27.12.40.0

Autres données techniques

Number of units

2
Number of units horizontal

1
Number of modules horizontal (module system)

1
With mounting grid

No
Suitable for subfloor installation duct box

No
Suitable for built-in installation

Yes
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

White
Transparent

No
Degree of protection (IP)

IP20
Type of fastening

Clamping/screw mounting
Height

87 mm
Built-in width

71 mm
Diameter bore hole (opening)

0 mm

Mounting direction

Vertical
Number of units vertical

2
Number of modules vertical (module system)

2
Flush-mounted installation

Yes
Suitable for wall duct

Yes
Label space/information surface

No
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Glossy
RAL-number (similar)

9010
With hinged lid

No
Impact strength

IK05
Width

293.5 mm
Depth

9.9 mm
Built-in height

71 mm

Détails du fabricant

Producteur

Berker GmbH & Co. KG.
Adresse

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Pakiet	Paleta
Quantité	5 pcs.	20 pcs.	640 pcs.
poids (kg)	0,420	2,119	87,827
Largeur (m)	0,170	0,300	0,800
Longueur (m)	0,090	0,220	1,050
Profondeur (m)	0,220	0,400	1,200
