W.1 2-pole switch with imprint "0/1" IP55 grey 30423515

Name: W.1 2-pole switch with imprint \"0/1\" IP55 grey
Brand: BERKER
SKU: MMD002BERK
Price: 23.28 PLN

local index:

MMD002BERK

Catalog No:

30423515

EAN code:

4011334390251

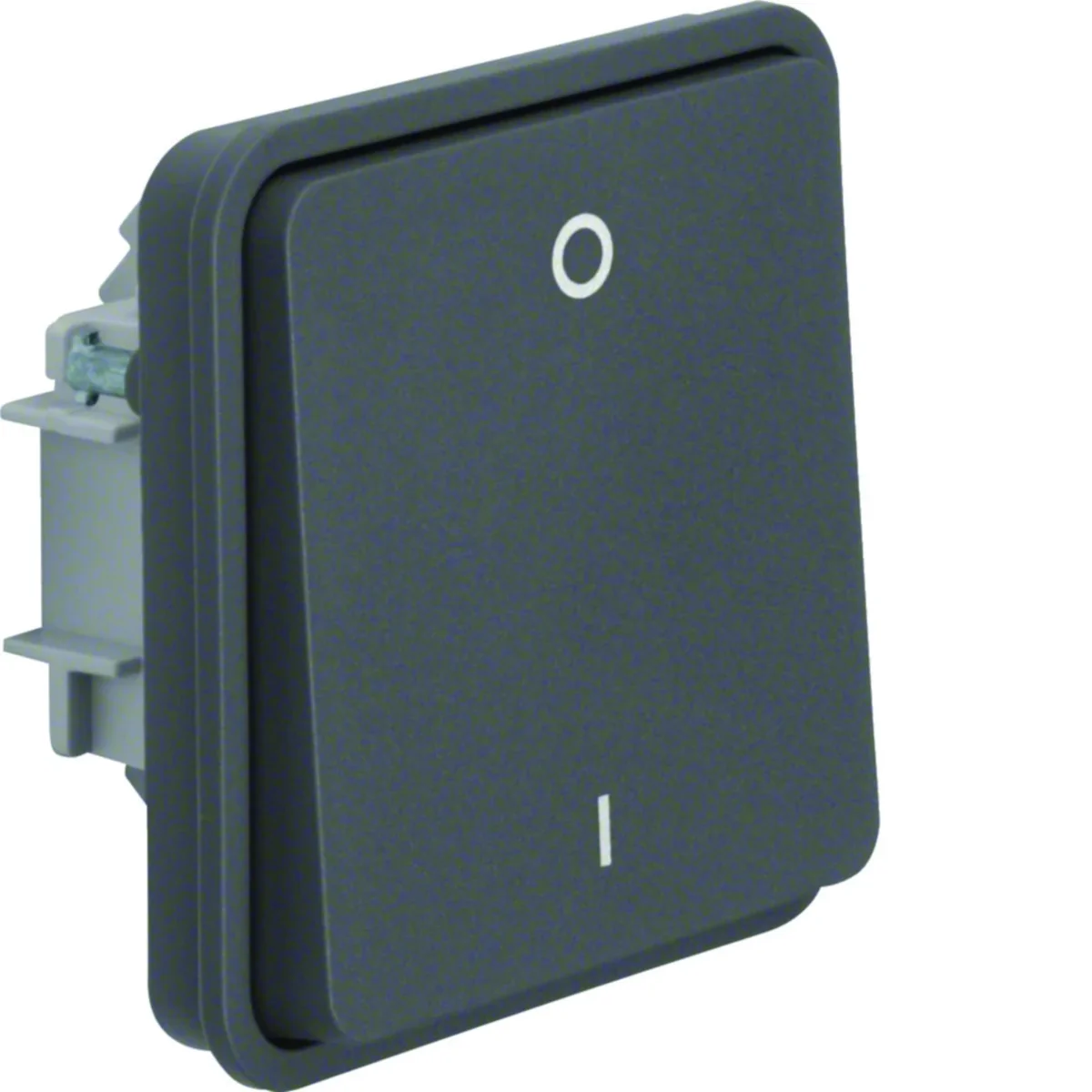

W.1 2-pole switch with imprint "0/1" IP55 grey

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 42

Number of keys: 1

Color: Gray

See full description

Price:

23,28 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Double-pole switch from the W.1 series, from the manufacturer Berker. The product part number is 30423515.

FEATURES

Single key.
With "0/1".
With mechanical coding of the rocker mounting, which allows mounting on the mechanism only in the correct position.
For screw connection.
Quick Connect.
With N-clamp.
With plug-in terminals.
Quick release pins made of ZAMAK.
Mechanisms achieve IP55 degree of protection only when mounted with surface-mounted housing or flush-mounted frame.

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative appearance. Double-pole switch characterizes the features of this unique series.

Technical data

Depth [mm]

42
Color

Gray
Material

Plastic
Rated voltage [V]

230
Type

Bipolar
Level of security

IP55
Width [mm]

70
Height [mm]

70
Accurate color

dark grey
Terminal type

Threadless
Exact material

Thermoplastic

Number of keys

1
Shape

Square
Installation

Recessed Surface-mounted
Rated current [A]

10
Family

W.1
Symbol

0-1
Type

Recessed Surface-mounted
Surface finish

matte
Backlight

NO
For the frame system

Yes
PKWIU

27.33.11.0

Other technical data

Wiring system

Alternating-/alternating switch
Assembly arrangement

Control element
Mounting method

Surface mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

Grey
Label space/information surface

No
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device height

76 mm
Built-in depth

12 mm

Method of operation

Rocker/button
Number of rockers

1
Type of fastening

Screw mounting
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

7011
Suitable for degree of protection (IP)

IP55
Rated current

10 A
Feedback-signal contact

No
Device width

76 mm
Device depth

62 mm
Min. depth of built-in installation box

0 mm

Bulk packaging

A kind of package		Karton
Quantity	1 pcs.	10 pcs.
Weight (kg)	0,068	0,754
Width (m)	0,071	0,174
Length (m)	0,042	0,087
Depth (m)	0,071	0,228
