W.1 2-pole switch with "0/1" imprint IP55 white 30423512

Name: W.1 2-pole switch with \"0/1\" imprint IP55 white
Brand: BERKER
SKU: MMD001BERK
Price: 23.15 PLN

local index:

MMD001BERK

Catalog No:

30423512

EAN code:

4011334390268

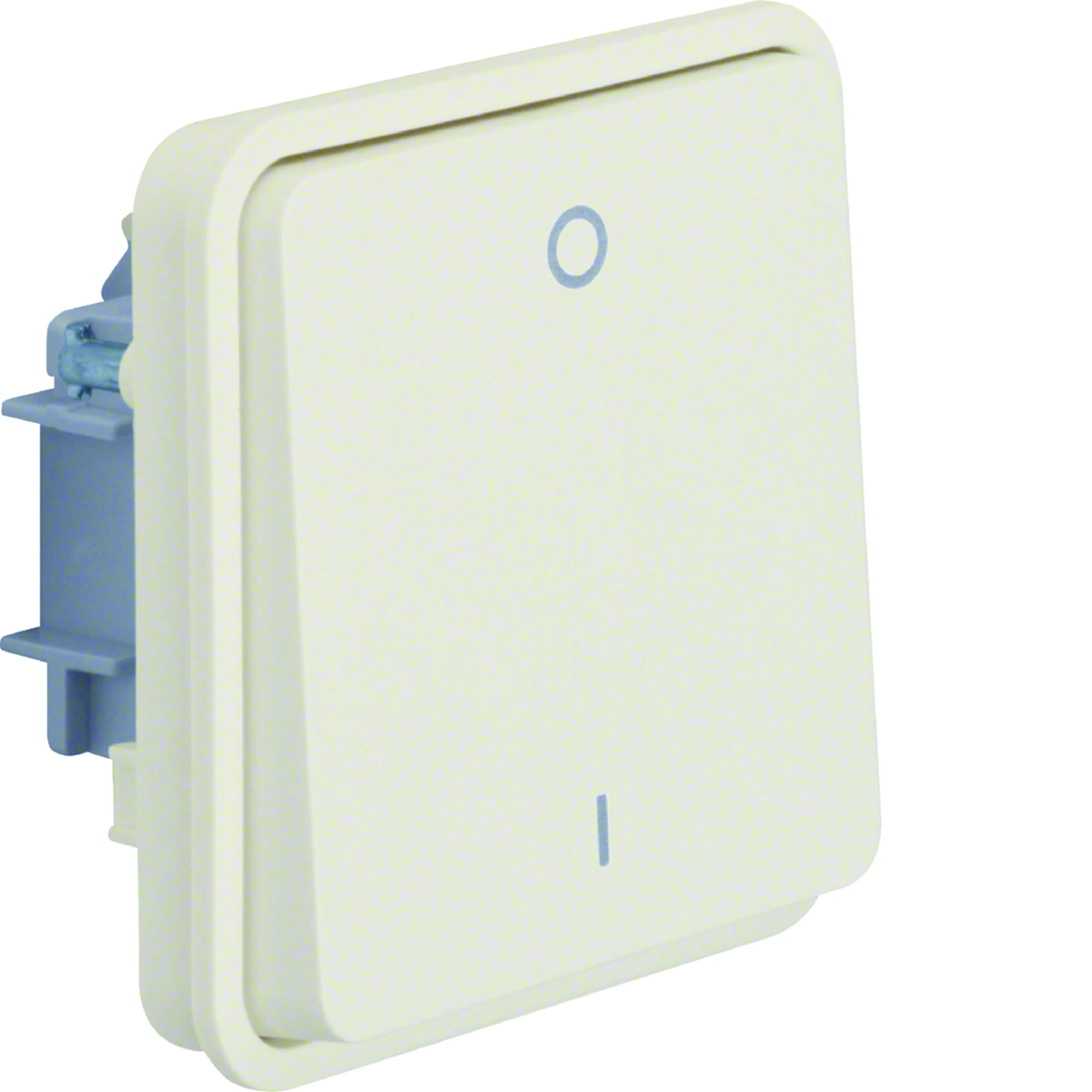

W.1 2-pole switch with "0/1" imprint IP55 white

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 42

Number of keys: 1

Color: White

See full description

Price:

23,15 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Double-pole switch from the W.1 series, from the manufacturer Berker. The product part number is 30423512.

FEATURES

Single key.
With "0/1".
With mechanical coding of the rocker mounting, which allows mounting on the mechanism only in the correct position.
For screw connection.
Quick Connect.
With N-clamp.
With plug-in terminals.
Quick release pins made of ZAMAK.
The mechanisms achieve the IP55 degree of protection only when mounted with a surface-mounted housing or a flush-mounted frame.

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative appearance. Double-pole switch characterizes the features of this unique series.

Technical data

Depth [mm]

42
Color

White
Material

Plastic
Rated voltage [V]

230
Type

Bipolar
Level of security

IP55
Width [mm]

70
Height [mm]

70
Backlight

NO
For the frame system

Yes
PKWIU

27.33.11.0

Number of keys

1
Shape

Square
Installation

Recessed Surface-mounted
Rated current [A]

10
Family

W.1
Symbol

0-1
Type

Recessed Surface-mounted
Surface finish

matte
Terminal type

Threadless
Exact material

Thermoplastic

Other technical data

Wiring system

Off switch 2x1-pole
Assembly arrangement

Control element
Mounting method

Surface mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Label space/information surface

No
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device height

76 mm
Built-in depth

12 mm

Method of operation

Rocker/button
Number of rockers

1
Type of fastening

Screw mounting
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

9010
Suitable for degree of protection (IP)

IP55
Rated current

10 A
Feedback-signal contact

No
Device width

76 mm
Device depth

62 mm
Min. depth of built-in installation box

0 mm

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,060	0,079	3,284	125,081
Width (m)	0,071	0,081	0,300	0,800
Length (m)	0,042	0,070	0,225	1,050
Depth (m)	0,071	0,081	0,400	1,200
