W.1 2-gang vertical frame for flush mounting IP55 grey 13303505

local index:
MAR381BERK
Catalog No:
13303505
EAN code:
4011334405160
Manufacturer: BERKER
Number of modules: 3
Color: Gray
Shape: Rectangular
Price:
33,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

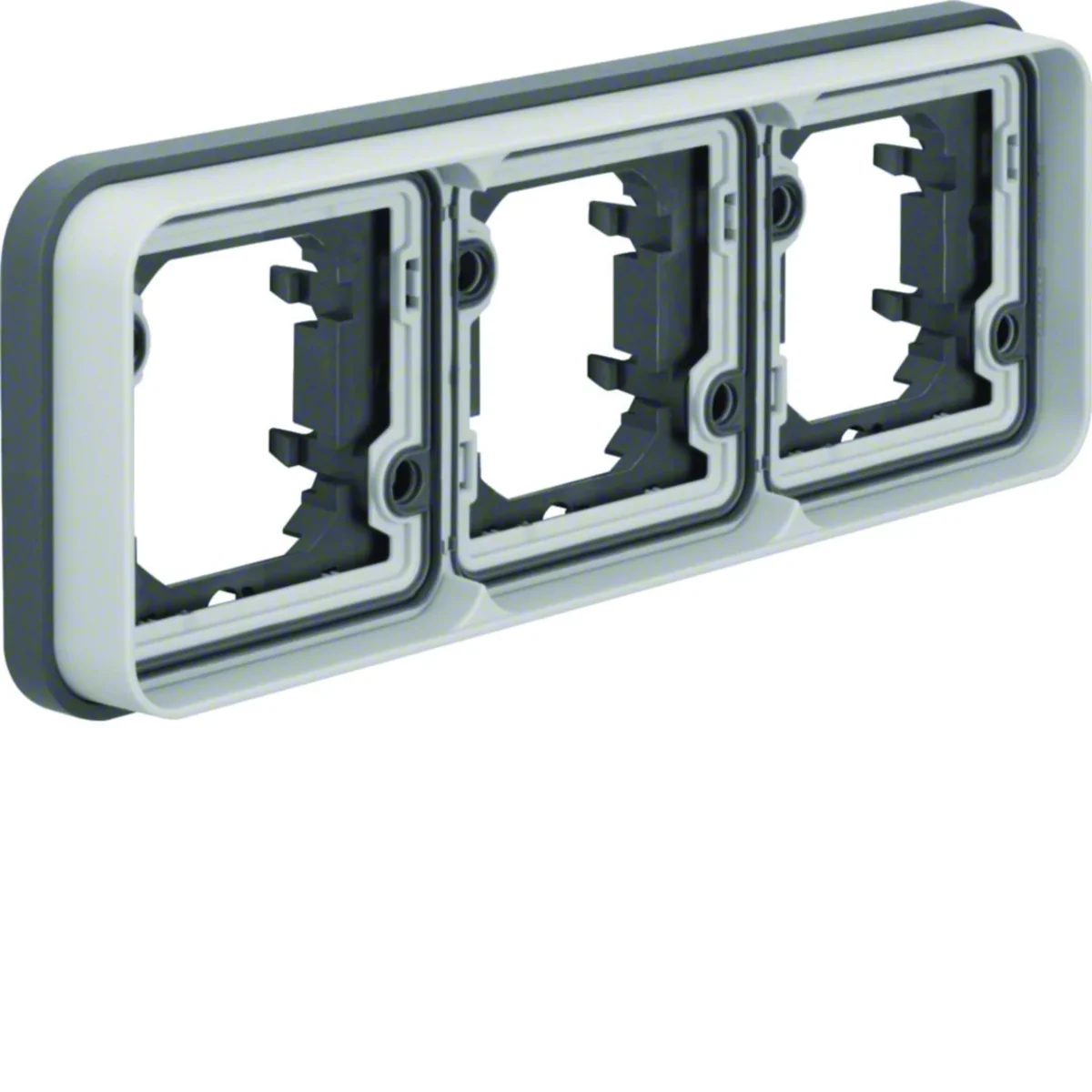

3-fold frame, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance. The product part number is 13303505.

  • For flush and drywall mounting, with mounting adapter and gasket, self-clamps/screw clamps.
  • The IP55 degree of protection is provided only in the case of the flush-mounted mechanism of the Berker W.1 product line.

Technical data

  • Number of modules
    3
  • Shape
    Rectangular
  • Type
    Standard
  • Level of security
    IP20
  • Surface finish
    Shiny
  • Mounting direction
    Horizontal
  • The shape of the matching accessory
    Square, Rectangular
  • Color
    Gray
  • Material
    Plastic
  • Family
    W.1
  • Surface protection
    Natural
  • Accurate color
    light gray
  • For modular equipment
    Not applicable
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting direction
    Horizontal
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Screw mounting
  • Height
    71 mm
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Transparent
    No
  • Impact strength
    IK05
  • Width
    55 mm
  • Depth
    25 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 26 pcs. 832 pcs.
Weight (kg) 0,101 0,126 3,834 147,688
Width (m) 0,224 0,095 0,300 0,800
Length (m) 0,038 0,045 0,225 1,050
Depth (m) 0,083 0,230 0,400 1,200
