W.1 2-gang vertical frame for flush mounting IP55 grey 13293515
local index:
MAR379BERK
Catalog No:
13293515
EAN code:
4011334405146
Price:
15,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

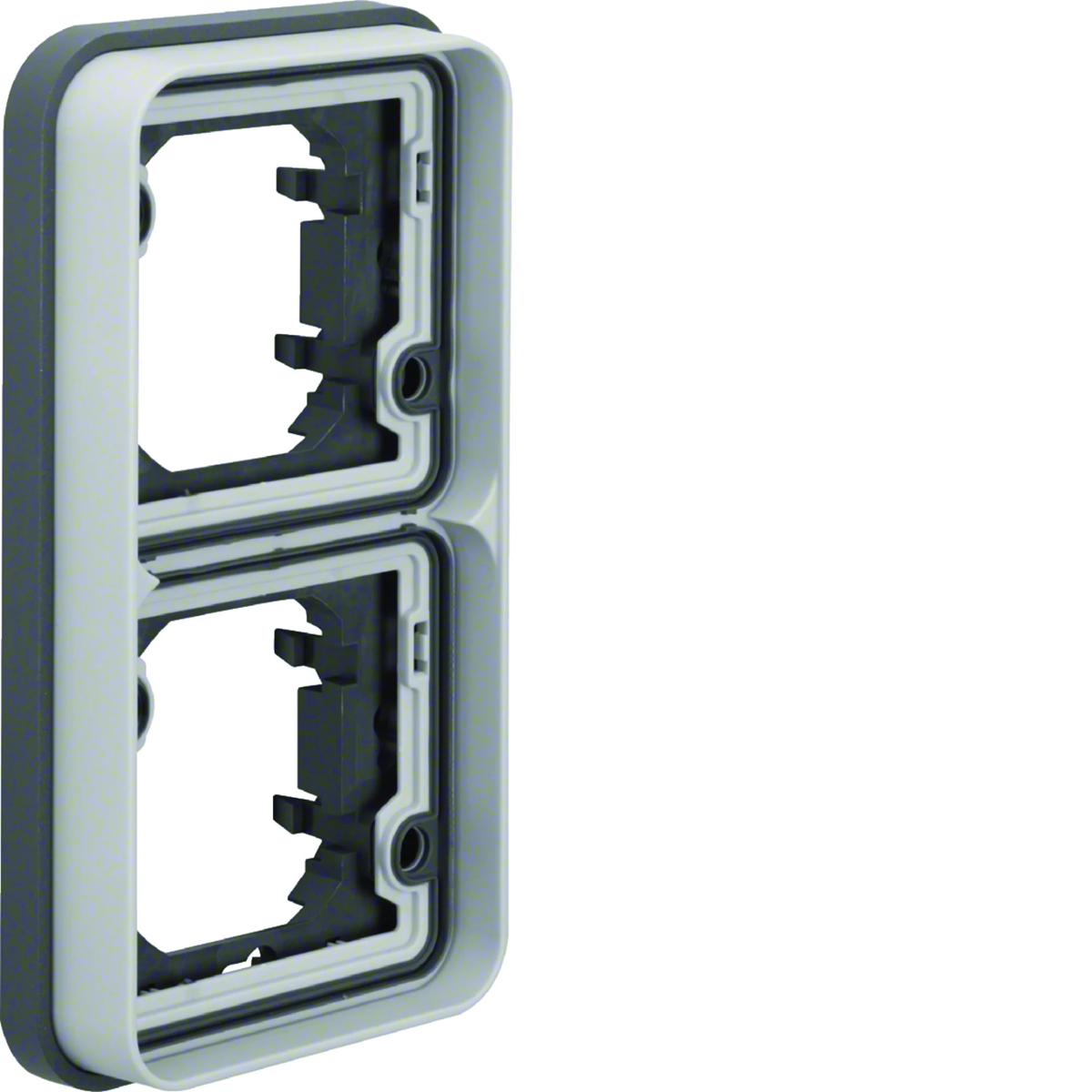

Double frame, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance. The product catalog number is 13293515.
- For flush and plasterboard mounting, with mounting adapter and gasket.
- The IP55 degree of protection is provided only in the case of the flush-mounted mechanism of the Berker W.1 product line.
Technical data
-
Number of modules2
-
ShapeRectangular
-
TypeStandard
-
Level of securityIP20
-
Surface finishShiny
-
Mounting directionVertical
-
The shape of the matching accessorySquare, Rectangular
-
ColorGray
-
MaterialPlastic
-
FamilyW.1
-
Surface protectionNatural
-
Accurate colorlight gray
-
For modular equipmentNot applicable
-
PKWIU27.12.40.0
Other technical data
-
Number of units2
-
Number of units horizontal1
-
Liczba łączników2
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With hinged lidNo
-
Impact strengthIK05
-
Width80.5 mm
-
Depth9.9 mm
-
Built-in height71 mm
-
Mounting directionVertical
-
Number of units vertical2
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamping/screw mounting
-
Height158 mm
-
Built-in width71 mm
-
Diameter bore hole (opening)0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 5 pcs. | 20 pcs. | 640 pcs. |
| Weight (kg) | 0,082 | 0,415 | 2,025 | 87,800 |
| Width (m) | 0,224 | 0,115 | 0,300 | 0,800 |
| Length (m) | 0,038 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,083 | 0,155 | 0,400 | 1,200 |
