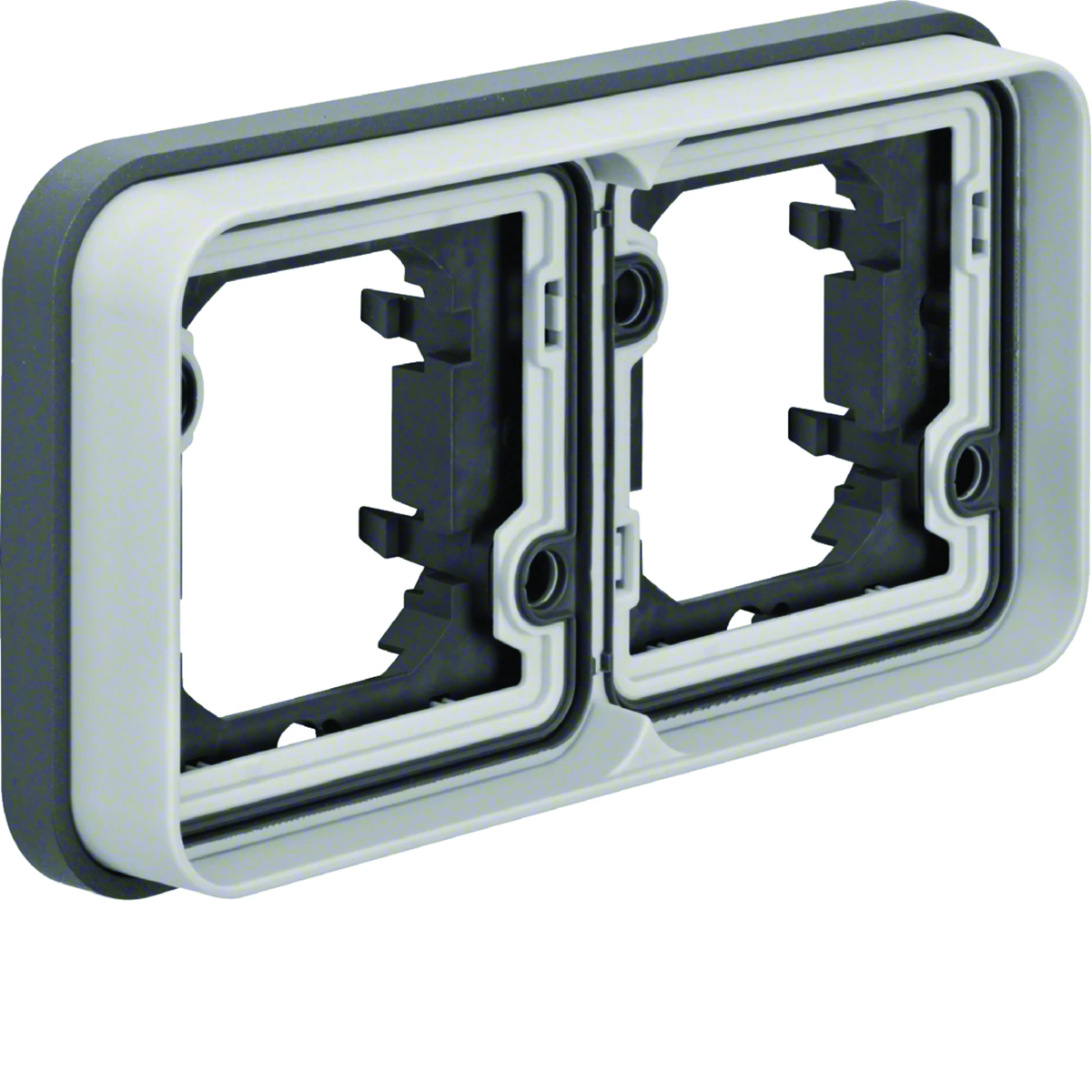

W.1 2-gang horizontal frame for flush mounting IP55 grey 13293505

local index:
MAR377BERK
Catalog No:
13293505
EAN code:
4011334405122
Manufacturer: BERKER
Number of modules: 2
Color: Gray
Shape: Rectangular
Price:
15,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double frame, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance. The product catalog number is 13293505.

  • For flush and plasterboard mounting, with mounting adapter and gasket.
  • The IP55 degree of protection is provided only in the case of the flush-mounted mechanism of the Berker W.1 product line.

Technical data

  • Number of modules
    2
  • Shape
    Rectangular
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    83
  • Surface finish
    Shiny
  • Mounting direction
    Horizontal
  • The shape of the matching accessory
    Square, Rectangular
  • Color
    Gray
  • Material
    Plastic
  • Family
    W.1
  • Width [mm]
    154
  • Surface protection
    Natural
  • Accurate color
    light gray
  • For modular equipment
    Not applicable
  • PKWIU
    27.12.40.0

Other technical data

  • Number of units
    2
  • Number of units horizontal
    2
  • Liczba łączników
    2
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With hinged lid
    No
  • Impact strength
    IK05
  • Width
    83 mm
  • Depth
    38 mm
  • Built-in height
    71 mm
  • Mounting direction
    Horizontal
  • Number of units vertical
    1
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamping/screw mounting
  • Height
    224 mm
  • Built-in width
    71 mm
  • Diameter bore hole (opening)
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 5 pcs. 20 pcs. 640 pcs.
Weight (kg) 0,070 0,420 2,120 90,840
Width (m) 0,154 0,175 0,300 0,800
Length (m) 0,038 0,095 0,225 1,050
Depth (m) 0,083 0,230 0,400 1,200
