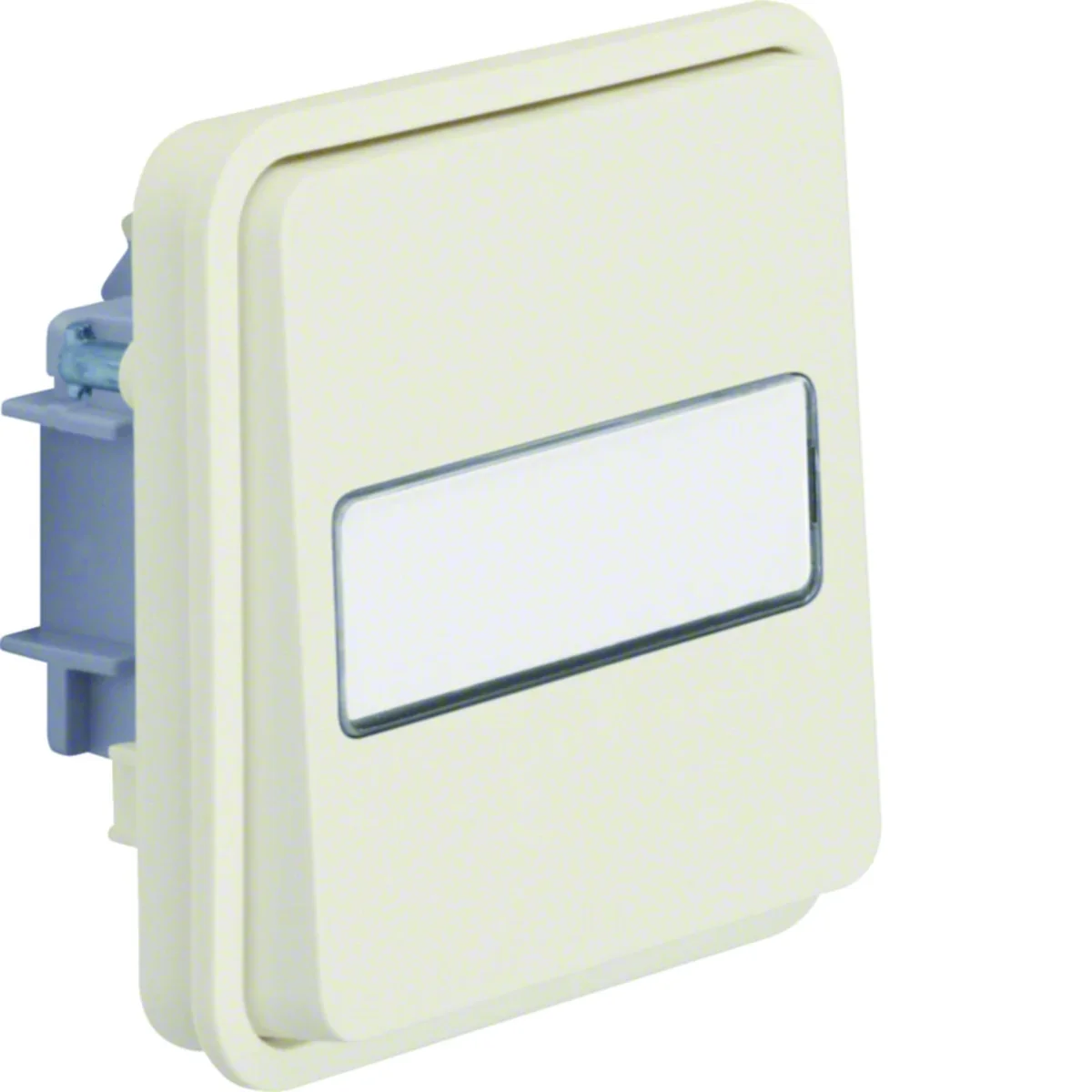

W.1 1-pole push-button switch with illuminated description field IP55 white 50413512

Indice locale:
MMZ005BERK
Numero di catalogo:
50413512
Codice EAN:
4011334390381
Produttore: BERKER
Depth [mm]: 42
Number of keys: 1
Color: White
Prezzo:
121,89 zł
gross / pezzi
(inclusa IVA 23%)
fino a 10 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Single-pole push-button switchwith illuminated description field, Berker W.1 series. The product part number is 50413512. In white.



FEATURES

  • Descriptive field (width x height): 50 x 16 mm.
  • Mounting: for screw connection.
  • Connection:
    • Wago 3-pole connection terminal for connection.
    • With N-clamp.
    • < li>With plug-in terminals.
  • With top and bottom cable entry.
  • With 230 V blue LED
  • < li>Quick release pins made of ZAMAK.
  • The height of the description field is adapted to the P-touch strip 12 mm.
  • Mechanisms achieve IP55 protection only when mounted with a surface-mounted housing or frame for flush mounting.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof accessories electrical installation, which is distinguished by its innovative appearance. Operating switch characterizes the features of this series.

Dati tecnici

  • Depth [mm]
    42
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    71
  • Version
    Confident
  • Surface finish
    matte
  • Backlight
    Yes
  • For the frame system
    Yes
  • Backlight type
    LED
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Descriptive field
    Yes
  • Type
    Short
  • Level of security
    IP55
  • Type
    Recessed Surface-mounted
  • Height [mm]
    71
  • Accurate color
    Snow white
  • Variant
    Ordinary
  • Exact material
    Thermoplastic
  • Backlight color
    Blue

Altri dati tecnici

  • Assembly arrangement
    Basic element with adapter plate
  • Method of operation
    Rocker
  • Number of rockers
    1
  • Nominal voltage
    250 V
  • With signal lamp
    No
  • Connection type
    Push-in clamp
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    80 mm
  • Device depth
    32 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Model
    Single push button
  • Operating principle
    Electromechanical
  • Number of modules (module system)
    0
  • With lighting
    Yes
  • Feedback-signal contact
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Imprint
    None
  • Impact strength
    IK05
  • Device height
    80 mm
  • Min. depth of built-in installation box
    0 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 1 pezzi 36 pezzi 1152 pezzi
Peso (kg) 0,080 3,320 131,240
Larghezza (m) 0,080 0,300 0,800
Lunghezza (m) 0,070 0,220 1,050
Profondità (m) 0,080 0,400 1,200
