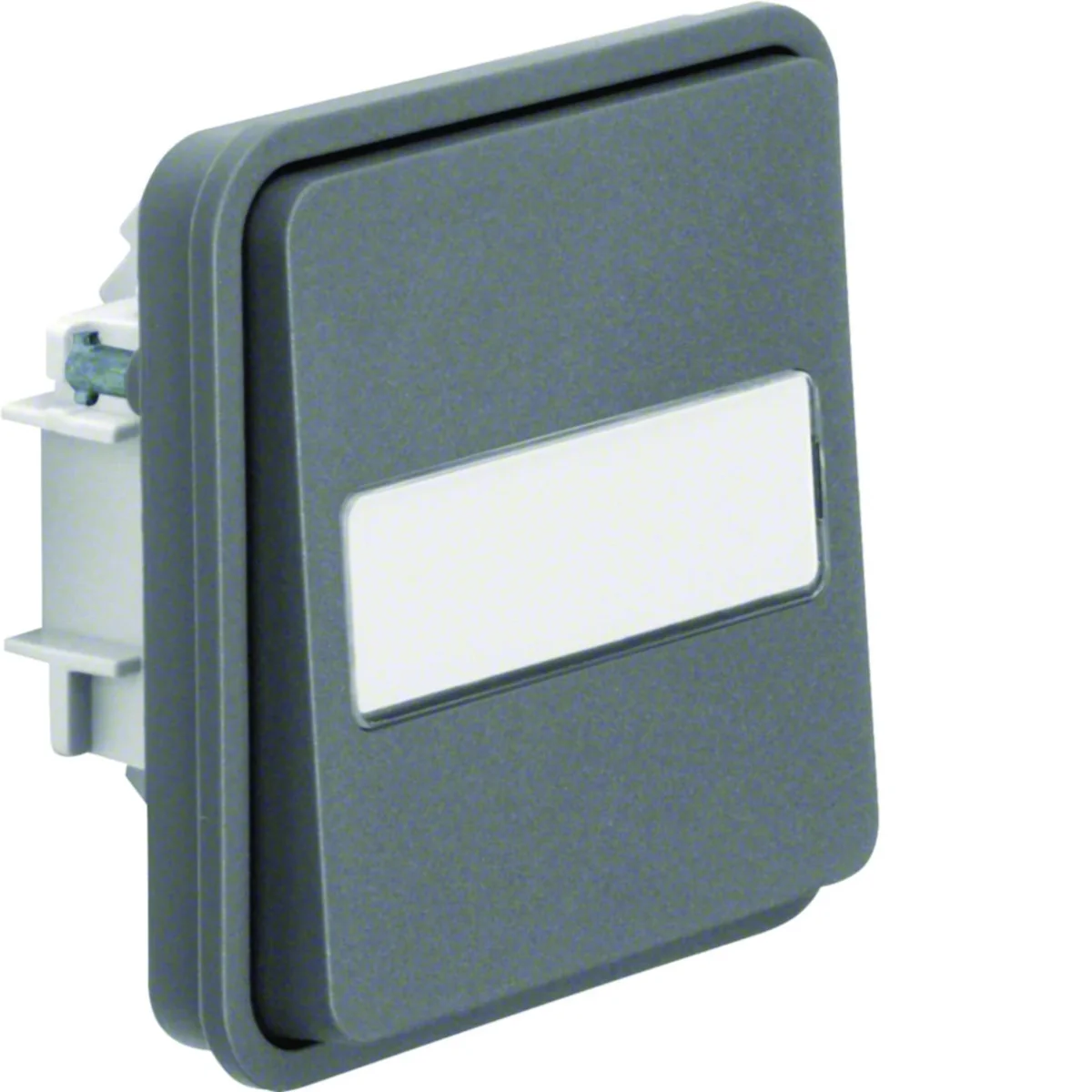

W.1 1-pole push-button switch with illuminated description field IP55 grey 50413515

Índice local:
MMZ006BERK
Número de catálogo:
50413515
Código EAN:
4011334390374
Fabricante: BERKER
Depth [mm]: 42
Number of keys: 1
Color: Gray
Precio:
26,60 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 10 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

Single-pole push-button switchwith illuminated description field, Berker W.1 series. The product catalog number is 50413515.



FEATURES

  • Description field (width x height) : 50 x 16 mm.
  • Mounting: for screw connection.
  • Connection:
    • Wago 3-pole connection terminal for connection.
    • With N-clamp.
    • With plug-in terminals.
  • With top and bottom cable entry.
  • With blue  ;230 V LED
  • Quick release pins made of ZAMAK.
  • The height of the description field is adapted to the P-touch strip 12 mm.
  • Mechanisms achieve a degree of protection IP55 only when mounted with a surface-mounted housing or a frame for flush-mounting.



SERIES DESCRIPTION

Berker W .1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative design. Operating switch characterizes the features of this series.

Datos técnicos

  • Depth [mm]
    42
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    71
  • Version
    Confident
  • Surface finish
    matte
  • Backlight
    Yes
  • For the frame system
    Yes
  • Backlight type
    LED
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Descriptive field
    Yes
  • Type
    Short
  • Level of security
    IP55
  • Type
    Recessed Surface-mounted
  • Height [mm]
    71
  • Accurate color
    dark grey
  • Variant
    Ordinary
  • Exact material
    Thermoplastic
  • Backlight color
    Blue

Otros datos técnicos

  • Assembly arrangement
    Basic element with adapter plate
  • Method of operation
    Rocker
  • Number of modules (module system)
    0
  • Rated current
    10 A
  • With signal lamp
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Imprint
    None
  • Device width
    70.9 mm
  • Device depth
    41.5 mm
  • Model
    Single push button
  • Number of rockers
    1
  • Nominal voltage
    250 V
  • With lighting
    Yes
  • Feedback-signal contact
    No
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • Label space/information surface
    Yes
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    70.9 mm
  • Min. depth of built-in installation box
    0 mm

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Pakiet Paleta
Cantidad 1 uds. 10 uds. 40 uds. 1280 uds.
Peso (kg) 0,061 0,715 3,310 128,920
Ancho (m) 0,071 0,175 0,295 0,800
Longitud (m) 0,042 0,090 0,230 1,050
Profundidad (m) 0,071 0,230 0,395 1,200
