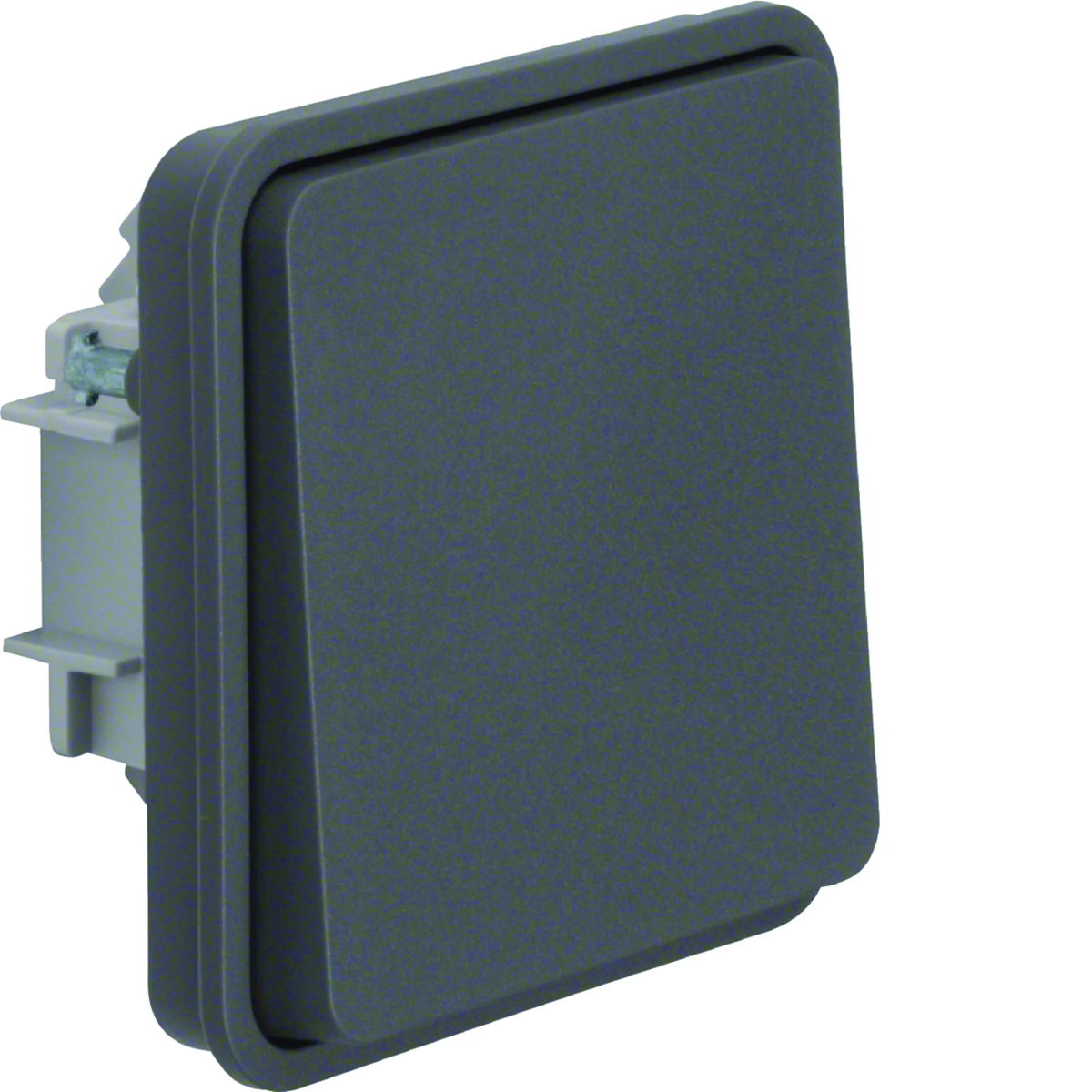

W.1 1-pole push-button switch IP55 grey 50453515

Místní index:
MMZ010BERK
Katalogové číslo.:
50453515
EAN kód:
4011334390312
Výrobce: BERKER
Depth [mm]: 42
Number of keys: 1
Color: Gray
Cena:
54,51 zł
gross / kusů.
(včetně DPH 23%)
do 10 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

1-pole push-button series W.1, from Berker. The product catalog number is 50453515.



FEATURES

  • For screw connection.
  • < li>With plug-in terminals.
  • Quick release pins made of ZAMAK.
  • Mechanisms achieve IP55 protection only when mounted with a surface-mounted housing or a frame for flush-mounting.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories that distinguishes with an innovative look. Operating switch characterizes the features of this series.

Technické údaje

  • Depth [mm]
    42
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP55
  • Type
    Recessed Surface-mounted
  • Height [mm]
    71
  • Accurate color
    dark grey
  • Variant
    Ordinary
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    10
  • Family
    W.1
  • Width [mm]
    71
  • Version
    Confident
  • Surface finish
    matte
  • Backlight
    NO
  • For the frame system
    Yes

Další technické údaje

  • Assembly arrangement
    Basic element with adapter plate
  • Method of operation
    Rocker
  • Number of rockers
    1
  • Nominal voltage
    250 V
  • With signal lamp
    No
  • Connection type
    Push-in clamp
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    70.9 mm
  • Device depth
    41.5 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Model
    Single push button
  • Operating principle
    Electromechanical
  • Number of modules (module system)
    0
  • With lighting
    No
  • Feedback-signal contact
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Imprint
    None
  • Impact strength
    IK05
  • Device height
    70.9 mm
  • Min. depth of built-in installation box
    0 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Karton Pakiet Paleta
Množství 10 kusů. 40 kusů. 1280 kusů.
Hmotnost (kg) 0,656 3,070 123,240
Šířka (m) 0,170 0,300 0,800
Délka (m) 0,090 0,220 1,050
Hloubka (m) 0,220 0,400 1,200
